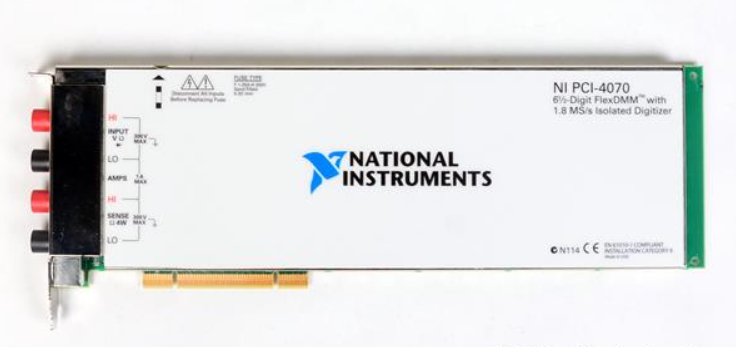

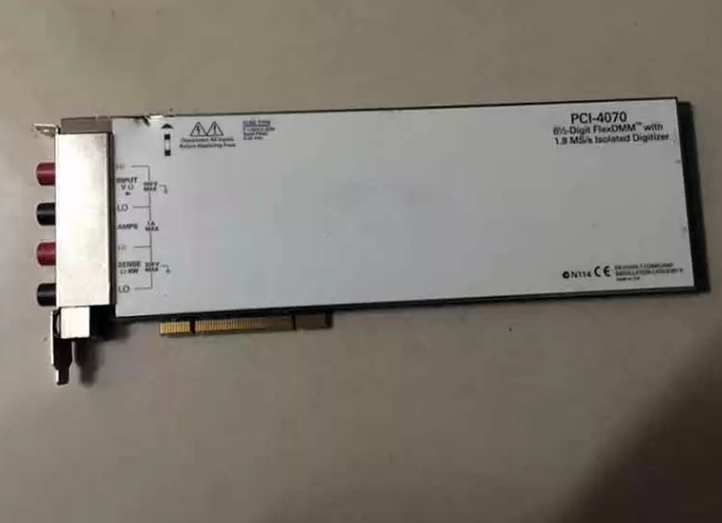

PCI-4070 高性能数字万用表 隔离数字化仪

☆型号：PCI-4070 高性能数字万用表 隔离数字化仪

【产品详情】

6½位，±300 V，内含1.8 MS/s隔离数字化仪，PCI数字万用表设备

PCI‑4070是一款高性能数字万用表，可提供两种常用测试仪器的测量功能：高分辨率数字万用表和数字化仪。 作为DMM时，PCI‑4070可提供快速、准确的AC/DC电压、AC/DC电流、2线或4线电阻、频率/周期测量以及二极管测试。 在高电压隔离数字化仪模式下，PCI‑4070能够以1.8 MS/s的采样速率采集波形。

NI PCI-4070 是一款 6½ 位 FlexDMM ，具有出众的处理速率、高精度和稳定的测量精度。过去，这种速度和精度的完美结合仅见于价值数千美元以上的高精度数字万用表 (DMM) 。 NI 独有的 FlexDMM 技术使得 NIPCI-4070 也能作为完全隔离的高电压数字化仪，在 ±300V 电压输入、采样率达 1.8MS/s 的条件下进行波形采集。通过 NILabVIEW 软件中的分析函数，您能在时域和频域中对采集到的波形进行分析。 PCI-4070 具有卓越的速率、精度和功能，是生产和研发环境中自动化测试的理想选择。

· 10 位到 23 位的可变分辨率

· 卓越的测量速度 – 100 S/s 可达 6½ 位精度 , 3 kS/s 可达 5½ 位精度 , 10 kS/s 可达 4½ 位精度

· 1.8 MS/s 隔离 , 高电压波形采集

· ±6 ppm VDC 精度

· 可测量高达 ±300 VDC 的电压和 ±1 ADC 的电流

· 是否需要电容、电感或开关？检查 NI PXI-4072 或 USB 开关主机。

 ☆型号：PCI-4070 高性能数字万用表 隔离数字化仪

【英文介绍】

6½ bit, ±300 V, including 1.8 MS/s isolation digitizer, PCI digital multimeter equipment

PCI‑4070 is a high-performance digital multimeter that provides the measurement capabilities of two commonly used test instruments: a high-resolution digital multimeter and a digitizer. As a DMM, PCI-4070 provides fast and accurate AC/DC voltage, AC/DC current, 2-wire or 4-wire resistance, frequency/period measurement, and diode testing. In high voltage isolation digitizer mode, PCI-4070 can collect waveforms at a sample rate of 1.8 MS/s.

The NI PCI-4070 is a 6½ bit FlexDMM that offers exceptional processing rates, high precision and consistent measurement accuracy. In the past, this perfect combination of speed and precision was only seen on high-precision digital multimeters (DMM) that cost thousands of dollars or more. NI's unique FlexDMM technology enables the NIPCI-4070 to also be used as a fully isolated high-voltage digitizer for waveform acquisition at ±300V input with a sampling rate of up to 1.8MS/s. With the analysis function in NILabVIEW software, you can analyze the collected waveforms in the time and frequency domains. With superior speed, accuracy and functionality, the PCI-4070 is ideal for automated testing in production and R&D environments.

· Variable resolution from 10 to 23 bits

Excellent measurement speed - 100 S/s up to 6½ bit accuracy, 3 kS/s up to 5½ bit accuracy, 10 kS/s up to 4½ bit accuracy

· 1.8MS /s isolation, high voltage waveform acquisition

· ±6 ppm VDC accuracy

· Can measure voltages up to ±300 VDC and currents up to ±1 ADC

· Are capacitors, inductors or switches required? Check the NI PXI-4072 or USB switch host.
