PCIE-6323 DIO多功能I/O设备 多核优化的驱动程序

☆型号：PCIE-6323 DIO多功能I/O设备 多核优化的驱动程序

【产品详情】

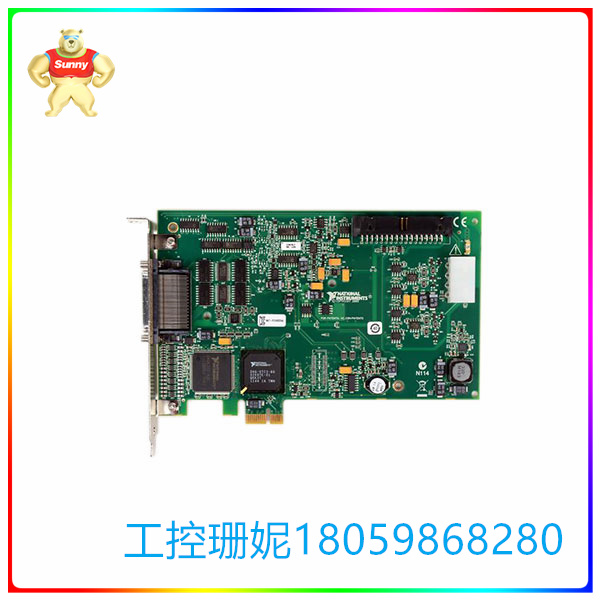

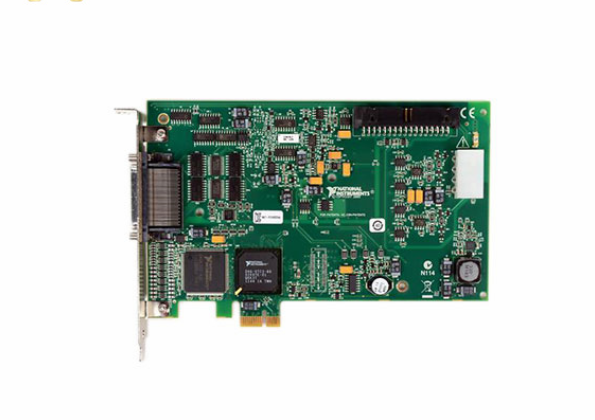

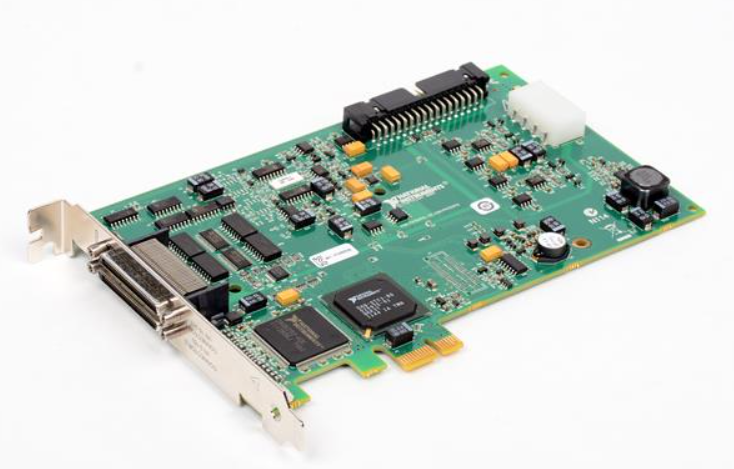

NI PCIe-6323:PCI Express，32路AI（16位，250 kS/s），4路AO（900 kS/s），48路DIO多功能I/O设备 - PCIe‑6323提供了模拟I/O、数字I/O和四个32位计数器/定时器，用于PWM、编码器、频率、事件计数等。 该设备利用高吞吐量PCI Express总线和多核优化的驱动程序和应用软件，提供了高性能表现。 板载NI‑STC3定时和同步技术提供高级定时功能，包括独立的模拟和数字定时引擎和可重新触发的测量任务。 PCIe‑6323适用于从基本数据记录到控制和测试自动化等广泛的应用。 … 随附的NI‑DAQmx驱动程序和配置实用程序简化了配置和测量。PCIe-6323 （部件号： 781045-01） 是 National Instruments 推出的 X 系列多功能 I/O 设备。这款多功能 I/O 设备通过 PCI Express 总线的快速吞吐量提供更高水平的性能。此接口有助于以尽可能低的非活动状态提供快速和优化的吞吐量。该型号还具有内置的多核改进驱动程序和应用软件。NI PCIe-6323 为 每 个 设备 提供 高达 250 MB/ s 的 全 向 带 宽。

PCIe-6323 X 系列 设备 配备 了 NI- STC3 技术。这种同步和控制技术提供了改进的定时功能。NI- STC3 ASIC 由 自主 模拟 和 数字 定 时 引擎 组成。它还包括可重新触发的测量任务和四个具有非凡功能的计数器/定时器。PCI Express X 系列设备的另一个独特之处在于原生 x1 PCI Express 接口，可在各个方向提供最大 250 MB/s 的速度。此接口已得到增强，可在单点控制应用中实现最小的延迟。

NI PCIe 6323 可在 Windows 7/Vista/XP/2000 操作系统上运行。PCIe 6323 NI 可用于各种应用，例如基本数据记录以及测试和控制自动化应用。该 设备 使用 NI- DAQmx 驱动 软件。该软件与不同类型的应用软件兼容，包括多个版本的LabVIEW以及Measurement Studio 7.x。

PCIe 6323 具有 32 个模拟输入，采样率为 250 kS/s。它还具有 4 个采样率为 900 kS/s 的模拟输出。两种类型的通道都具有 16 位分辨率，电压范围为 10V。此外，该器件上还有 48 条数字 I/O 线。

☆型号：PCIE-6323 DIO多功能I/O设备 多核优化的驱动程序

【英文介绍】

NI PCI-6323 :PCI Express, 32-way AI (16-bit, 250 kS/s), 4-way AO (900 kS/s), 48-way DIO Multi-function I/O device - PCI-6323 provides analog I/O, digital I/O, and four 32-bit counters/timers. Used for PWM, encoder, frequency, event counting, etc. The device utilizes a high-throughput PCI Express bus and multi-core optimized drivers and application software to deliver high performance. Onboard NI‑STC3 timing and synchronization technology provides advanced timing capabilities, including independent analog and digital timing engines and re-triggering measurement tasks. PCIe 6323 is suitable for a wide range of applications from basic data recording to control and test automation. ... The included NI‑DAQmx driver and configuration utility simplify configuration and measurement. The PCI-6323 (Part number: 781045-01) is an X-series multi-function I/O device from National Instruments. This versatile I/O device delivers a higher level of performance through the fast throughput of the PCI Express bus. This interface helps provide fast and optimized throughput with the lowest possible inactivity. This model also has built-in multi-core improved drivers and application software. The NI PCI-6323 offers an omnidirectional band width of up to 250 MB/ s per device.

The PCI-6323 X series devices are equipped with NI-STC3 technology. This synchronization and control technology provides improved timing capabilities. The NI-STC3 ASIC consists of autonomous analog and digital timing engines. It also includes measurement tasks that can be re-triggered and four counters/timers with extraordinary functionality. Another unique feature of PCI Express X Series devices is the native x1 PCI Express interface, which provides speeds of up to 250 MB/s in all directions. This interface has been enhanced to achieve minimal latency in single-point control applications.

NI PCIe 6323 runs on Windows 7/Vista/XP/2000 operating systems. PCIe 6323 NI can be used for a variety of applications, such as basic data logging and test and control automation applications. The device uses NI-DAQmx driver software. The software is compatible with different types of applications, including multiple versions of LabVIEW and Measurement Studio 7.x.

PCIe 6323 has 32 analog inputs and a sampling rate of 250 kS/s. It also has four analog outputs with a sample rate of 900 kS/s. Both types of channels have 16-bit resolution and a voltage range of 10V. In addition, there are 48 digital I/O lines on the device.
