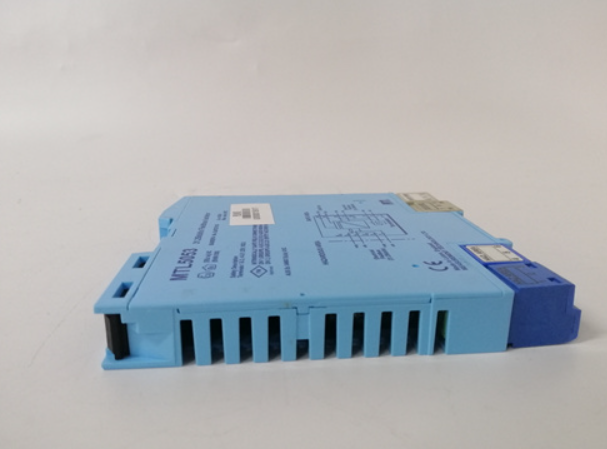

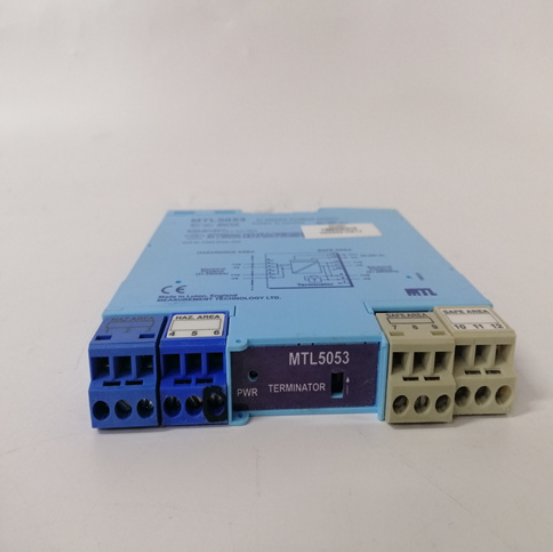

☆型号：MTL5053 现场总线 数字信号传输
【产品详情】
品牌 ： MTL Instruments
MTL5053
现场总线设备的位置：0 区、IIC、T4–6 危险区域（如果经过适当认证）
防爆区域现场总线电源
18.4V ± 2% 105O ±3%
直流阻抗
80mA 最大电流
最大电缆长度
由 IS 要求决定，具体取决于连接的其他设备和电缆沿线的最大可接受电压降
数字信号传输
兼容31.25kbit/s现场总线系统，符合现场总线标准†
电源电压：20 至 35Vdc
LED 指示灯：绿色：一个用于电源指示
功率要求，Vs，80mA输出负载
时 24V时为135mA（典型值），35V
时为105mA
单元内功耗，80mA 输出负载
2.3W（典型值，24V） 2.6W（最大值，35V
）
隔离：安全和危险区域电路与电源之间的 250V 交流电
安全描述 端子 1 和 2 ： 22V， 102O， 216mA;Um = 250V rms 或 dc18kO
MTL5053是一款现场总线驱动器模块，具有电气隔离功能，可以将控制电路和被控电路之间的电气信号隔离，以防止潜在的电气故障或损坏。
关于MTL5053的现场总线应用，这涉及到工业自动化领域，其中设备通过现场总线相互通信，以实现监控、控制和数据采集等功能。通过使用MTL5053这样的驱动器模块，可以确保不同设备之间的可靠通信，同时保护设备和系统免受潜在的电气干扰和损坏。
☆型号：MTL5053 现场总线 数字信号传输
【英文介绍】
Brand: MTL Instruments
MTL5053
Location of fieldbus devices: Zone 0, IIC, T4-6 hazard zone (if properly certified)
Explosion-proof area fieldbus power supply
18.4V ± 2% 105O ±3%
Dc impedance
80mA Maximum current
Maximum cable length
Determined by IS requirements, depending on the other equipment connected and the maximum acceptable voltage drop along the cable
Digital signal transmission
Compatible with 31.25kbit/s fieldbus system, compliant with fieldbus standard †
Power supply voltage: 20 to 35Vdc
LED indicator: Green: One for power indicator
Power requirements, Vs, 80mA output load
135mA (typical value) at 24V, 35V
The time is 105mA
Internal power consumption, 80mA output load
2.3W (typical, 24V) 2.6W (maximum, 35V
)
Isolation: 250V AC between the safe and hazardous area circuit and the power supply
Description Terminals 1 and 2:22V, 102O, 216mA; Um = 250V rms or dc18kO
The MTL5053 is a fieldbus driver module with an electrical isolation function that isolates electrical signals between the control circuit and the controlled circuit to prevent potential electrical failure or damage.
Regarding the fieldbus application of the MTL5053, this relates to the field of industrial automation, where devices communicate with each other through the fieldbus to achieve functions such as monitoring, control and data acquisition. By using driver modules such as the MTL5053, reliable communication between different devices can be ensured while protecting devices and systems from potential electrical interference and damage.
