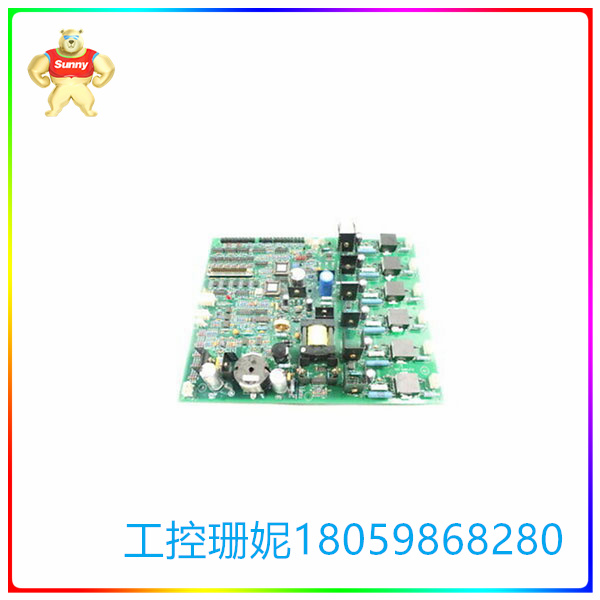

IS200EGPAG1BEC 励磁栅极脉冲放大器板 连接电流传导反馈

【产品详情】

GE EX2100 IS200EGPAG1B励磁栅极脉冲放大器板用于将控制器连接到控制系统中的电源桥。它负责连接电流传导反馈、温度监控和桥式气流。

栅极脉冲放大器板编号IS200EGPAG1B位于电源转换柜内，可连接电源转换模块。该模块是标在桥接器和保护板/模块下的电路板之一，虽然该电路板可以独立运行，但通常需要从其中一个 EPDM 模块获取电源。

IS200EGPAG1B板接收来自安装在 SCR 散热器上的两个热敏开关的反馈。这些开关在报警电平和跳闸电平时触发和打开，并直接连接到IS200EGPAG1B。开关在触发之前必须达到的温度是 190°F 的跳闸水平和 170°F 的报警水平。如果只有一个开关打开，则开关可以单独打开或一起打开，则发生有关电桥的超温报警，如果两个开关都打开，则表明发生了跳闸和故障。

IS200EGPAG1B板有五个跳线，这些跳线允许用户选择所需的特定应用配置，并在安装前轻松调整跳线配置。

否相同？

是的！IS200EGPAG1B板上的 LED 还用于指示进入电桥的电流状态、线路滤波器、栅极电源、输出点火、电桥温度、报警/故障条件和冷却风扇旋转。

在 EX2100 系列中，有许多不同类型的印刷线路板。IS200EGPAG1B模型属于哪一类？

IS200EGPAG1B型号属于印刷线路板的桥接和保护板/模块。

IS200EGPAG1A板和IS200EGPAG1B板之间有什么区别吗？

根据 GEH-6632 EX2100 励磁控制用户指南，两块 EGPA 板之间没有区别。

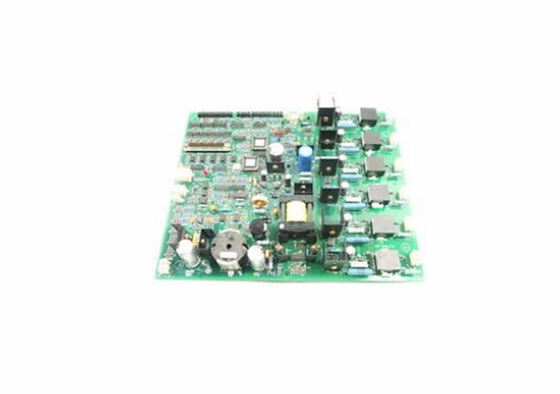

IS200EGPAG1BEC 励磁栅极脉冲放大器板 连接电流传导反馈

【英文介绍】

The GE EX2100 IS200EGPAG1B field gate pulse amplifier board is used to connect the controller to the power bridge in the control system. It is responsible for connecting current conduction feedback, temperature monitoring and bridge airflow.

The grid pulse amplifier board number IS200EGPAG1B is located in the power conversion cabinet and can be connected to the power conversion module. This module is one of the boards labeled under the bridge and guard board/module, and although the board can operate independently, it usually requires power from one of the EPDM modules.

The IS200EGPAG1B board receives feedback from two thermal switches mounted on the SCR radiator. These switches trigger and open at alarm levels and tripping times and are directly connected to IS200EGPAG1B. The temperature that the switch must reach before triggering is the trip level of 190°F and the alarm level of 170°F. If only one switch is opened, the switch can be opened separately or together, then the overtemperature alarm about the bridge occurs, if both switches are opened, it indicates that trip and failure have occurred.

The IS200EGPAG1B board has five jumpers that allow the user to select the desired application-specific configuration and easily adjust the jumper configuration before installation.

Is it the same?

Yes, we do! The leds on the IS200EGPAG1B board are also used to indicate the current status entering the bridge, line filters, gate power supply, output ignition, bridge temperature, alarm/fault conditions, and cooling fan rotation.

In the EX2100 series, there are many different types of printed circuit boards. What is the IS200EGPAG1B model?

Model IS200EGPAG1B is a bridge and protection board/module for printed circuit boards.

Is there any difference between IS200EGPAG1A and IS200EGPAG1B?

According to the GEH-6632 EX2100 Excitation Control User Guide, there is no difference between the two EGPA boards.
