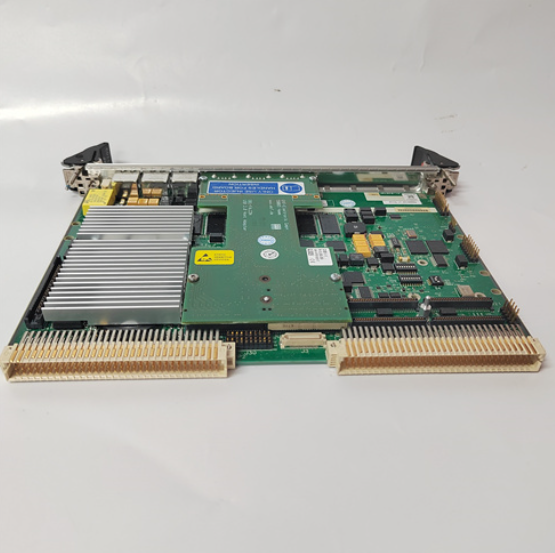

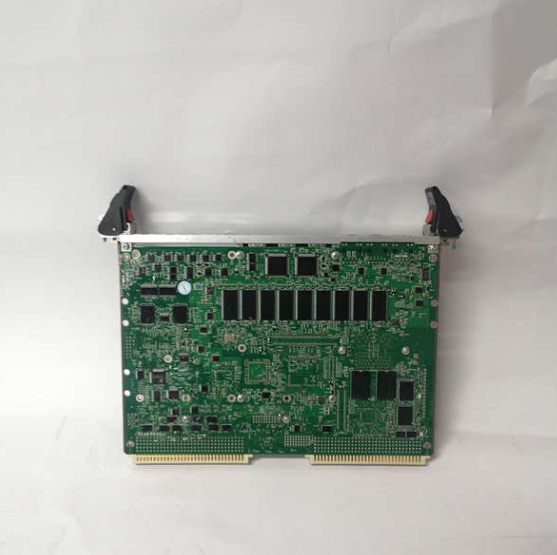

MVME6100-0161 VME单板计算机 特定应用模块
【产品详情】
特征：
2eSST VMEbus 协议，跨 VMEbus 的传输速率为 320MB/s
从现有摩托罗拉 VMEbus 平台迁移的路径
高性能 MPC7457 PowerPC 处理器，运行频率为 1.267 GHz
用于并行处理的128位AltiVec协处理器
高达 1GB 的板载 DDR ECC 内存
两个 33/66/100 MHz PMC-X 站点允许添加行业标准、特定应用模块
双千兆以太网接口
128MB 闪存，位于两个 64MB 存储区
艾默生/摩托罗拉 MVME6100 VME 单板计算机是第一款采用 Tundra Tsi148 VMEbus 设计的 VMEbus 单板计算机 （SBC） 提供 2eSST VMEbus 性能的接口芯片。2eSST（双边沿源同步传输）协议 在大多数情况下，使 VMEbus 以 320MB/s 的实际带宽运行。2eSST 协议已经存在 一段时间（试用标准草案于 1999 年发布，并于 2003 年作为 ANSI 标准发布），但 到目前为止，2eSST 板无法在标准 VMEbus 背板中工作，因为现有的 VMEbus 收发器 无法支持所需的 VMEbus 2eSST 信令速度。德州仪器 （TI） 开发了新的 VMEbus 支持 2eSST 协议所需的 VMEbus 信号切换速度的收发器。组合 新的德州仪器 （TI） VMEbus 收发器和 Tsi148 VMEbus 传统协议支持允许用户 将 MVME6100 系列集成到现有基础设施中，提供向后兼容性。
MVME6100-0161 VME单板计算机 特定应用模块
【英文介绍】
Features:
2eSST VMEbus protocol, the transmission rate across VMEbus is 320MB/s
Migration path from the existing MOTOROLA VMEbus platform
The high-performance MPC7457 PowerPC processor runs at 1.267 GHz
128-bit AltiVec coprocessor for parallel processing
Up to 1GB of on-board DDR ECC memory
Two 33/66/100 MHz PMC-X sites allow the addition of industry-standard, application-specific modules
Dual Gigabit Ethernet interface
128MB flash memory in two 64MB storage areas
The Emerson/MOTOROLA MVME6100 VME single-board computer is the first interface chip to deliver 2eSST VMEbus performance using the Tundra Tsi148 VMEbus design VMEbus. The 2eSST (Bilateral Synchronous Transmission along the Source) protocol allows the VMEbus to operate at an actual bandwidth of 320MB/s in most cases. The 2eSST protocol has been around for some time (a draft trial standard was published in 1999 and published as an ANSI standard in 2003), but so far, 2eSST boards have not been able to work in standard VMEbus backplanes. Because existing VMEbus transceivers cannot support the required VMEbus 2eSST signaling speeds. Texas Instruments (TI) has developed a new VMEbus transceiver that supports the VMEbus signal switching speed required by the 2eSST protocol. Combining the new Texas Instruments (TI) VMEbus transceiver and Tsi148 VMEbus legacy protocol support allows users to integrate the MVME6100 series into their existing infrastructure, providing backward compatibility.
