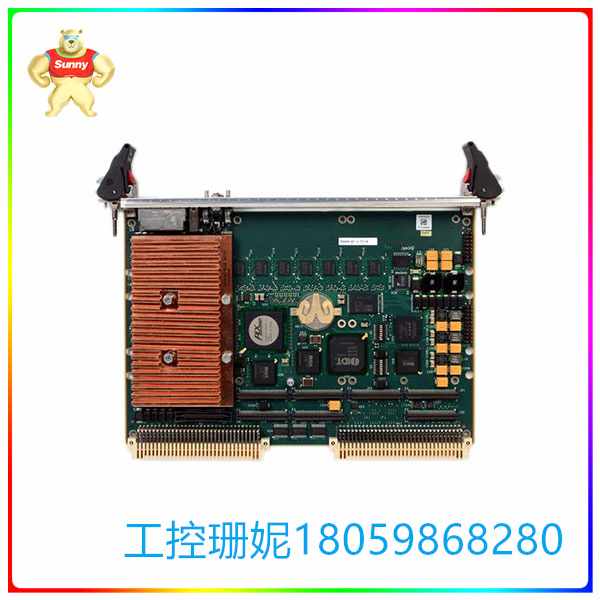

MVME7100-0163 VME单板计算机 用于集成高性价比的外设
【产品详情】
产品信息
项目/零件编号 MVME7100
项目描述 MVME7100 NXP® MPC864xD VME单板计算机
扩展说明 该MVME7100采用MPC864xD处理器，为使用前几代VME（特别是MPC74xx）的VME客户提供了一条增长路径。与其他架构相比，它具有出色的功率/散热、可靠性和生命周期优势。
建筑 VME、VME64x
产品特点
高达 1.3 GHz 的片上系统 NXP® MPC864xD，具有双 PowerPC® e600 处理器内核、双集成内存控制器、DMA 引擎、PCI Express 接口、以太网和本地 I/O
适用于 VxWorks、LynxOS 和 Linux 的板级支持包
2eSST VMEbus 协议，跨 VMEbus 的传输速率为 320MB/s
高达 2GB 的 DDR2 ECC 内存、128MB NOR 闪存和 2、4 或 8GB NAND 闪存
4 个千兆以太网端口
USB 2.0 控制器，用于集成高性价比的外设（仅限商用温度）
双 33/66/100MHz PMC-X 站点，可通过支持处理器 PMC 的行业标准模块进行扩展
8 个 PCI Express 扩展连接器，用于使用 SMART EC XMCspan 进行 PMC-X 和 XMC 扩展
MVME7216E直接连接后部转换模块 （RTM），用于通过 VMEbus 机箱后部进行 I/O 路由
提供扩展温度范围（-40°C至+71°C）和坚固耐用的电路板型号

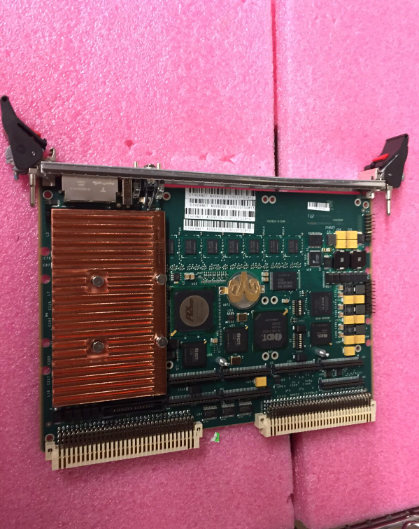

MVME7100-0163 VME单板计算机 用于集成高性价比的外设
【英文介绍】
Product information
Item/Part Number MVME7100
Item Description MVME7100 NXP® MPC864xD VME single-board computer
The MVME7100 is powered by the MPC864xD processor, providing a growth path for VME customers using previous generations of VME, particularly the MPC74xx. It offers excellent power/heat dissipation, reliability and life cycle advantages over other architectures.
Building VME, VME64x
Product characteristics
Up to 1.3GHz, system-on-chip NXP® MPC864xD features dual PowerPC® e600 processor cores, dual integrated memory controllers, DMA engine, PCI Express interface, Ethernet and local I/O
Board-level support packages for VxWorks, LynxOS, and Linux
2eSST VMEbus protocol, the transmission rate across VMEbus is 320MB/s
Up to 2GB DDR2 ECC memory, 128MB NOR flash and 2, 4 or 8GB NAND flash
Four Gigabit Ethernet ports
USB 2.0 controller for integration of cost-effective peripherals (commercial temperature only)
Dual 33/66/100MHz PMC-X sites that can be expanded with industry-standard modules that support processor PMCS
Eight PCI Express extension connectors for PMC-X and XMC extensions using SMART EC XMCspan
The MVME7216E connects directly to the Rear Conversion Module (RTM) for I/O routing through the rear of the VMEbus chassis
Offers an extended temperature range (-40°C to +71°C) and rugged circuit board models
