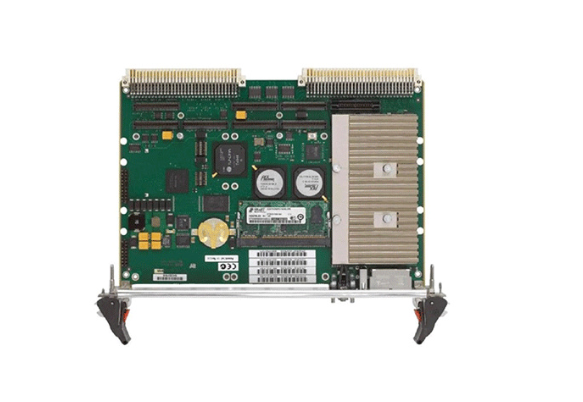

MVME4100 VMEbus CPU 板  可实现双精度浮点运算

【产品详情】

该MVME4100的计算能力来自具有 e500 内核的 MPC8548E PowerPC，时钟速度为 1.3 GHz。MPC8548E CPU 具有 32/32 KB L1 和 512 KB L2 缓存。该MVME4100配备 2 GB ECC DDR2-533 RAM，并提供四个 10/100/1000BaseTX 千兆以太网接口。128 MB 闪存可用于应用程序和操作系统。此外，还提供额外的 2 GB 用户闪存。

该卡为两个 33/66/100 MHz PMC 模块提供 PMC 插槽。为了连接现代外围设备，该板具有一个 USB 2.0 接口和五个 RS232 端口。使用 XMCspan 扩展卡，最多可以扩展四个额外的 PMC 插槽。该MVME4100配有IEEE夹具和VMEbus梯形夹具。

板级支持包可用于 LINUX 和 VxWorks。

该MVME4100可与转换模块 MVME7216E-101 结合使用，从而可以扩展两个额外的千兆以太网和四个 RS232 接口。

MVME4100 VMEbus CPU 板  可实现双精度浮点运算

【英文介绍】

The MVME4100's computing power comes from the MPC8548E PowerPC with an e500 core and a clock speed of 1.3 GHz. The MPC8548E CPU has 32/32 KB L1 and 512 KB L2 caches. The MVME4100 is equipped with 2 GB of ECC DDR2-533 RAM and offers four 10/100/1000BaseTX Gigabit Ethernet interfaces. 128 MB flash memory is available for applications and operating systems. In addition, an additional 2 GB of user flash memory is available.

The card provides PMC slots for two 33/66/100 MHz PMC modules. To connect modern peripherals, the board has one USB 2.0 port and five RS232 ports. With the XMCspan expansion card, up to four additional PMC slots can be expanded. The MVME4100 is equipped with an IEEE fixture and a VMEbus ladder fixture.

Board-level support packages are available for LINUX and VxWorks.

The MVME4100 can be used in combination with the conversion module MVME7216E-101, which allows the expansion of two additional Gigabit Ethernet and four RS232 interfaces.

MVME4100 VMEbus CPU 板  可实现双精度浮点运算

【其他型号推荐】

The MVME4100's computing power comes from the MPC8548E PowerPC with an e500 core and a clock speed of 1.3 GHz. The MPC8548E CPU has 32/32 KB L1 and 512 KB L2 caches. The MVME4100 is equipped with 2 GB of ECC DDR2-533 RAM and offers four 10/100/1000BaseTX Gigabit Ethernet interfaces. 128 MB flash memory is available for applications and operating systems. In addition, an additional 2 GB of user flash memory is available.

The card provides PMC slots for two 33/66/100 MHz PMC modules. To connect modern peripherals, the board has one USB 2.0 port and five RS232 ports. With the XMCspan expansion card, up to four additional PMC slots can be expanded. The MVME4100 is equipped with an IEEE fixture and a VMEbus ladder fixture.

Board-level support packages are available for LINUX and VxWorks.

The MVME4100 can be used in combination with the conversion module MVME7216E-101, which allows the expansion of two additional Gigabit Ethernet and four RS232 interfaces.
