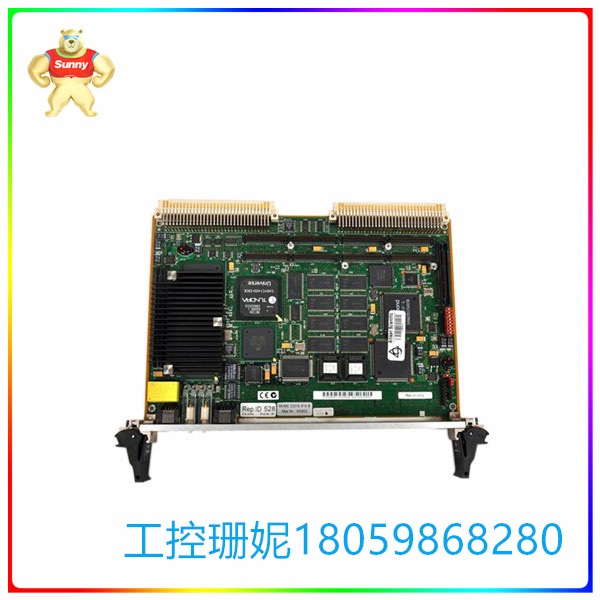

MVME2500/2502 低成本VMEbus CPU板 适用于恶劣环境条件

【产品详情】

 P2010处理器，配备800 MHz e500内核，或飞思卡尔QorlQ P2020处理器，配备两个1.0 GHz e500内核，或飞思卡尔QorlQ P2020处理器，配备两个1.2 GHz e500内核。QorIQ处理器具有512 KB的L2缓存。高达 2GB 的 DDR3-800 RAM 焊接到主板上。此外，还提供 16 MB SPI 闪存。

MVE2500 提供 1 个 PMC/XMC 插槽，MVME2502 提供 2 个 PMC/XMC 插槽。为了连接现代外围设备，该板具有三个千兆以太网端口、一个 USB 2.0 接口、五个串行端口和一个 SDHC 闪存插槽以及 opt。SSD 硬盘。MVME2500 系列提供 IEEE 夹具或 VMEbus 梯形夹具。

MVME2500 系列使用具有上电自检、初始化和操作系统启动功能的潜艇固件。它基于飞思卡尔 2009.08 修补的潜艇固件。

MVME2500系列是PowerQUICC处理器板（MVME3100和MVME4100）以及G4处理器板（MVME5100和MVME5110）的完美迁移，特别是由于双核CPU版本的功耗仅为28W。因此，MVME2500系列具有无与伦比的性价比。

• 板级支持包可用于 VxWorks、Linux、QNX 和 Integrity。

• 6U/4HP VMEbus 板

• 800 MHz Freescale QorlQ P2010 CPU，带一个 e500 内核，1.0 GHz Freescale QorIQ P2020 CPU，带两个 e500 内核，1.2 GHz Freescale QorIQ P2020 CPU，

•


• 带两个 e500 内核

• 高达 2GB 800MHz DDR3 RAM，焊接

• 8 GB eMMC 闪存（MVME2502

• SDHC 插槽

• 512 KB 磁共振成像

• 16 MB SPI闪存

• 多达 2 个 PMC/XMC 插槽

• 3 个千兆以太网端口，1 个端口位于前面板，1 个后端口，1 个端口位于前面板或背面

• 前面板上有一个 Micro-DB9 串行端口

• 前面板上的一个 USB 2.0 端口

• 四个 RS-232 端口，通过后部 I/O

• 选配固态硬盘

• 潜艇固件

• 2eSST VMEbus 接口

• 实时时钟和看门狗定时器

• 适用于两种不同的环境规格：标准工作温度范围 0°C55°C 和扩展温度范围 -40°C ..+71°摄氏度

MVME2500/2502 低成本VMEbus CPU板 适用于恶劣环境条件

【英文介绍】

A P2010 processor with an 800 MHz e500 core, or a Freescale QorlQ P2020 processor with two 1.0 GHz e500 cores, or a Freescale QorlQ P2020 processor with two 1.2 GHz e500 cores. The QorIQ processor has 512 KB of L2 cache. Up to 2GB of DDR3-800 RAM is soldered to the motherboard. In addition, 16 MB SPI flash memory is available.

The MVE2500 provides one PMC/XMC slot, and the MVME2502 provides two PMC/XMC slots. To connect modern peripherals, the board has three gigabit Ethernet ports, a USB 2.0 port, five serial ports and an SDHC flash memory slot as well as opt. An SSD disk. The MVME2500 series is available with IEEE fixtures or VMEbus ladder fixtures.

The MVME2500 series uses submarine firmware with power-on self-test, initialization, and operating system boot capabilities. It is based on the submarine firmware patched by Freescale 2009.08.

The MVME2500 series is a perfect migration from the PowerQUICC processor boards (MVME3100 and MVME4100) and the G4 processor boards (MVME5100 and MVME5110), especially since the dual-core CPU versions consume only 28W. As a result, the MVME2500 series offers an unparalleled price/performance ratio.

Board level support packages are available for VxWorks, Linux, QNX, and Integrity.

6U/4HP VMEbus board

800 MHz Freescale QorlQ P2010 CPU with one e500 core, 1.0 GHz Freescale QorIQ P2020 CPU with two e500 cores, 1.2 GHz Freescale QorIQ P2020 CPU,

With two e500 cores

Up to 2GB 800MHz DDR3 RAM, welded

8 GB eMMC flash memory (MVME2502

SDHC slot

512 KB magnetic resonance imaging

16 MB SPI flash memory

Up to 2 PMC/XMC slots

Three Gigabit Ethernet ports, one port on the front panel, one port on the rear, and one port on the front or rear panel

There is a Micro-DB9 serial port on the front panel

A USB 2.0 port on the front panel

Four RS-232 ports, via rear I/O

Optional SSD

Submarine firmware

2eSST VMEbus interface

Real-time clock and watchdog timer

Suitable for two different environmental specifications: standard operating temperature range 0°C55°C and extended temperature range -40°C... +71° C
