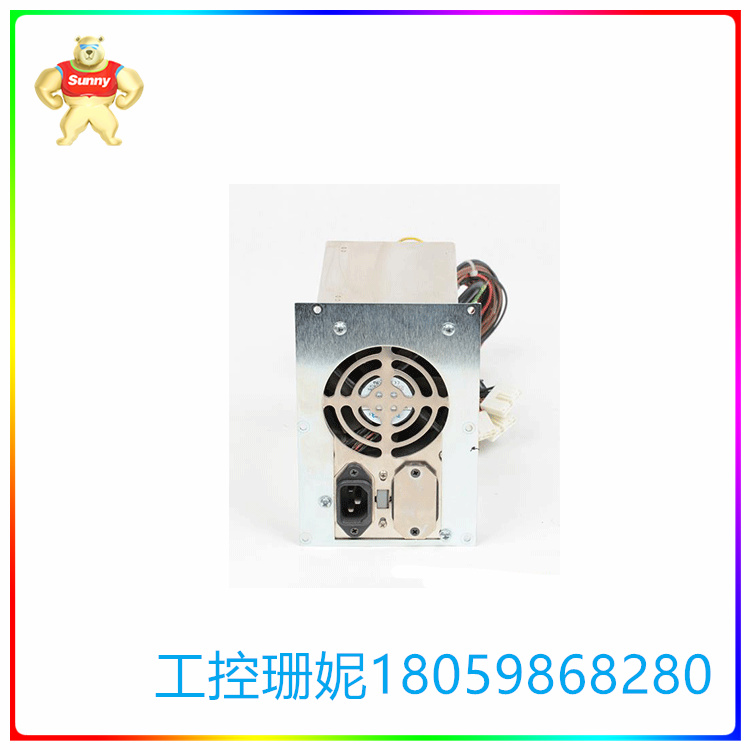

AP2-5400F 电源 后置过渡板接口

【产品详情】

该装置由 Quantum Power Labs 制造，型号为 AP2-5400F。

部件号 01-W2360E01A

重要提示：除非在上述库存项目描述中列出，否则其他附件、手册、电缆、校准数据、软件等不包含在本设备中。

特征：

启用热插拔

6U 高度

外围托架

后置过渡板接口

CPX2000 系列系统包括：CPX2108、CPX2208、CPX2208T、CPX2208TDC、CPX2208DC、CPX2408AC、CPX2408DC、CPX2408TAC 和 CPX2408TDC。CPX2108机箱采用 19 英寸机架、壁挂式或台式安装。CPX2208 和 CPX2408 机箱采用 19 英寸或 23 英寸机架、壁挂式或台式安装。6U背板有8个垂直插槽，可容纳最多4个插槽（16HP）宽的CPU模块;和 7 个 I/O 插槽，（4HP） 宽。您可以通过前面板访问这八个插槽。CPX2108机箱不支持 IEEE 1101.11 后转换模块。CPX2208 和 CPX2408 确实支持后转换模块。CPX2208上的三个外围托架（5.25 英寸 x 1.63 英寸）可让您从侧面访问软盘、CD-ROM 和/或硬盘驱动器。CPX2408为您提供五个外围托架，最多可容纳三个硬盘驱动器。

CPX2108可以提供集成的SCSI外围设备（即硬盘驱动器，CD-ROM或CPV5000单板计算机上的80MB闪存驱动器）。CPX2208T 和 CPX2408T 在七个外设（非系统）插槽的 J4 连接器之间提供集成的 H.110 总线。H.110 总线为您提供了传真、文本转语音、语音识别和其他电信接口之间的通信媒介。该系统采用背板和系统架构，支持高密度、热插拔和欧洲卡封装。

CPX 2000 系列机箱“启用热插拔”。这意味着机箱可以容纳符合 PCI 工业计算机制造商组织 （PICMG） 热插拔规范的热插拔模块。

AP2-5400F 电源 后置过渡板接口

【英文介绍】

The device was built by Quantum Power Labs and is model AP2-5400F.

The part number is 01-W2360E01A

Important: Other accessories, manuals, cables, calibration data, software, etc. are not included in this device unless listed in the inventory item description above.

Features:

Enable hot swap

6U height

Outer bracket

Rear transition board interface

The CPX2000 series includes: CPX2108, CPX2208, CPX2208T, CPX2208TDC, CPX2208DC, CPX2408AC, CPX2408DC, CPX2408TAC, and CPX2408TDC. The CPX2108 chassis is available in a 19-inch rack, wall-mounted or benchtop mount. The CPX2208 and CPX2408 enclosures are available in 19-inch or 23-inch racks, wall-mounted or benchtop mounting. The 6U backplane has eight vertical slots and can accommodate CPU modules up to four slots (16HP) wide; And 7 I/O slots, (4HP) wide. You can access these eight slots through the front panel. The CPX2108 chassis does not support IEEE 1101.11 post-conversion modules. CPX2208 and CPX2408 do support post-conversion modules. Three peripheral bays (5.25 "x 1.63") on the CPX2208 give you side-access to floppy disks, CD-ROMs, and/or hard drives. The CPX2408 gives you five peripheral bays that can hold up to three hard drives.

The CPX2108 can be supplied with integrated SCSI peripherals (i.e., hard drives, CD-ROMs or 80MB flash drives on CPV5000 single-board computers). The CPX2208T and CPX2408T provide an integrated H.110 bus between J4 connectors in seven peripheral (non-system) slots. The H.110 bus provides you with a communication medium between fax, text-to-speech, speech recognition, and other telecommunications interfaces. The system uses a backplane and system architecture that supports high-density, hot-swappable and European card packaging.

Enable Hot swap for CPX 2000 series chassis. This means that the chassis can accommodate hot-swappable modules that comply with PCI Industrial Computer Manufacturers Organization (PICMG) hot-swappable specifications.
