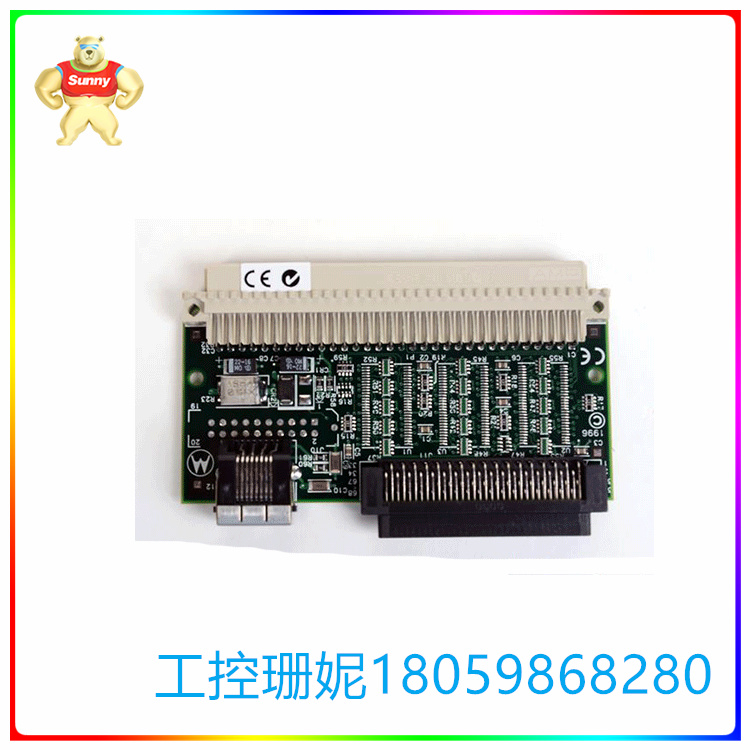

MVME4600P2-001 单端SCSI终端适配器

【产品详情】

特征：

可定制的平台

64MB 板载 ECC DRAM — 高达 1GB

可堆叠的基本 I/O、处理器/内存和 PMC 托架型号

艾默生/摩托罗拉 MVME3600 和 MVME4600 是 VME 处理器模块，提供出色的基础平台，可以快速轻松地针对各种行业特定应用进行定制。MVME3600 和 MVME4600 VMEbus 板级计算机旨在满足军事、航空航天和工业自动化应用的需求，由处理器内存模块和基本 I/O 模块组成，均为 6U，组装成一个双插槽砖。这种模块化结构允许处理器模块升级（包括为多处理器实现提供足够的空间），并为更大范围的网络和大容量存储扩展接口提供物理空间。DRAM 扩展夹层支持将内存升级到最大 1GB 的 ECC DRAM，而无需额外的 VME 插槽。双处理器MVME4600的紧密耦合多处理器配置为要求最苛刻的任务提供了额外的计算能力，包括仿真和数据库或矩阵操作。

处理器 I/O 对接和 PCI 扩展

MVME3600 和 MVME4600 处理器模块具有 64 位 PCI 连接，允许与基本 I/O 模块配接。连接器和电气规格的设计详细信息可从您当地的摩托罗拉代表处获得。处理器模块还具有单独的 PCI 连接器，以支持 PCI 扩展载体，例如摩托罗拉 PMCspan。

内存模块

MVME3600/4600 系列采用模块化内存设计。64MB 的 DRAM 焊接在处理器内存模块上。额外的夹层阵列支持从 64MB 到 1GB 的附加 DRAM。这些 RAM201 扩展模块允许现场升级内存容量，并且不需要额外的 VME 插槽。

MVME4600P2-001 单端SCSI终端适配器

【英文介绍】

Features:

Customizable platform

64MB onboard ECC DRAM - up to 1GB

Stackable basic I/O, processor/memory, and PMC tray models

The Emerson/MOTOROLA MVME3600 and MVME4600 are VME processor modules that provide an outstanding base platform that can be quickly and easily customized for a variety of industry-specific applications. Designed to meet the needs of military, aerospace and industrial automation applications, the MVME3600 and MVME4600 VMEbus board level computers consist of a processor memory module and a basic I/O module, both 6U, assembled into a two-slot brick. This modular architecture allows processor modules to be upgraded, including enough space for multiprocessor implementations, and provides physical space for a wider range of networking and mass storage expansion interfaces. DRAM expansion sandwich supports memory upgrade to ECC DRAM up to 1GB without the need for additional VME slots. The dual processor MVME4600's tightly coupled multiprocessor configuration provides additional computing power for the most demanding tasks, including simulation and database or matrix operations.

Processor I/O docking and PCI expansion

The MVME3600 and MVME4600 processor modules have 64-bit PCI connectivity, allowing for pairing with basic I/O modules. Design details for connectors and electrical specifications are available from your local MOTOROLA representative office. The processor module also has a separate PCI connector to support PCI expansion carriers, such as the MOTOROLA PMCspan.

Memory module

The MVME3600/4600 series features a modular memory design. 64MB of DRAM is soldered to the processor memory module. The additional sandwich array supports additional DRAM from 64MB to 1GB. These RAM201 expansion modules allow for on-site upgrades of memory capacity and do not require additional VME slots.

MVME4600P2-001 单端SCSI终端适配器
