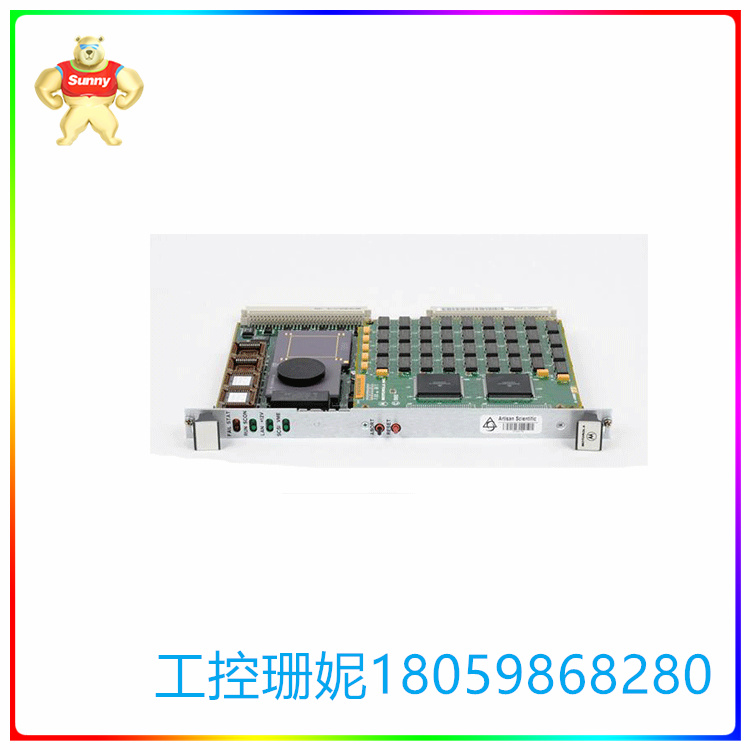

MVME167-32 单板计算机 集成灵活性

【产品详情】

配置： • 33 MHz MC68040 微处理器，带浮点协处理器

• 8 MB DRAM

• 安装了

2 个 BIOS 芯片 部件号：01-W3899B 32A、01-W3899B 32C、01-W3826B 32E、01-W3826B 32F 子卡部件号：

01-W3914B 02A、01-W3060F

02A 本机也称为 MVME167-032B、MVME167-32 和 MVME167-032A

特征：

完整的 32 位主/从虚拟机总线接口

高性能 DMA

远程复位/中止/状态控制功能

完全可编程，实现最大的集成灵活性

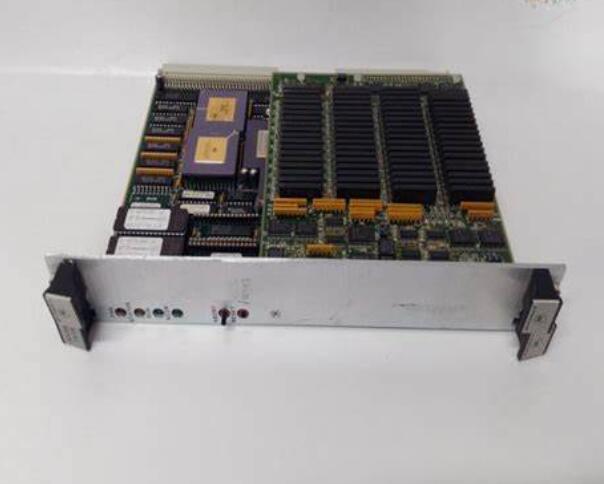

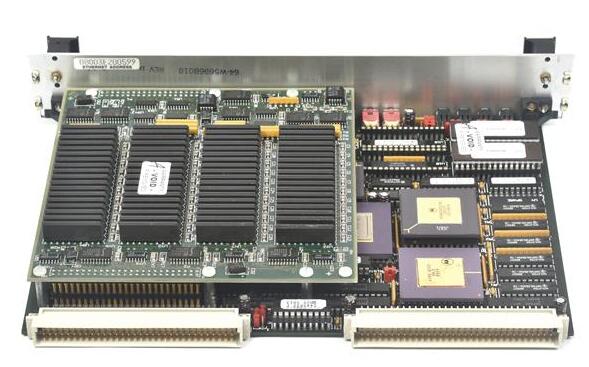

摩托罗拉MVME167单板计算机是基于CISC的系统中的高性能单板计算机。

摩托罗拉MVME167P单板计算机代表了基于 CISC 的系统的功能、灵活性和性能。该MVME167P基于摩托罗拉MC68040，将微处理器与内存管理和浮点单元相结合。这种出色的处理速度和浮点性能使该MVME167P成为科学和工业应用的理想解决方案。

新的“Petra”专用集成电路（ASIC）取代了以前在MCECC芯片中实现的功能，提高了存储器子系统的性能。内存配置开关使客户能够为需要较小内存配置的应用定制内存大小。

该MVME167P与现有 M68000 系列软件的兼容性使基于 CISC 的软件环境能够实现接近 RISC 的性能水平，同时保持与现有软件平台的目标代码兼容性。

MVME167-32 单板计算机 集成灵活性

【英文介绍】

Configuration: • 33 MHz MC68040 microprocessor with floating point coprocessor

• 8 MB DRAM

• Installed

Two BIOS chip parts number: 01-W3899B 32A, 01-W3899B 32C, 01-W3826B 32E, 01-W3826B 32F Child card Part number:

01-W3914B 02A, 01-W3060F

The 02A machine is also known as the MVME167-032B, MVME167-32, and MVME167-032A

Features:

Full 32-bit master/slave virtual machine bus interface

High performance DMA

Remote reset/abort/status control function

Fully programmable for maximum integration flexibility

MOTOROLA MVME167 single board computer is a high performance single board computer in the system based on CISC.

The MOTOROLA MVME167P single-board computer represents the power, flexibility, and performance of CISC-based systems. The MVME167P is based on the MOTOROLA MC68040 and combines a microprocessor with a memory management and floating-point unit. This excellent processing speed and floating-point performance make the MVME167P an ideal solution for scientific and industrial applications.

The new "Petra" application-specific integrated circuit (ASIC) replaces functions previously implemented in the MCECC chip and improves the performance of the memory subsystem. The memory configuration switch enables customers to customize the memory size for applications that require a smaller memory configuration.

The MVME167P's compatibility with the existing M68000 family of software enables CISC-based software environments to achieve near-RISC performance levels while maintaining object code compatibility with existing software platforms.
