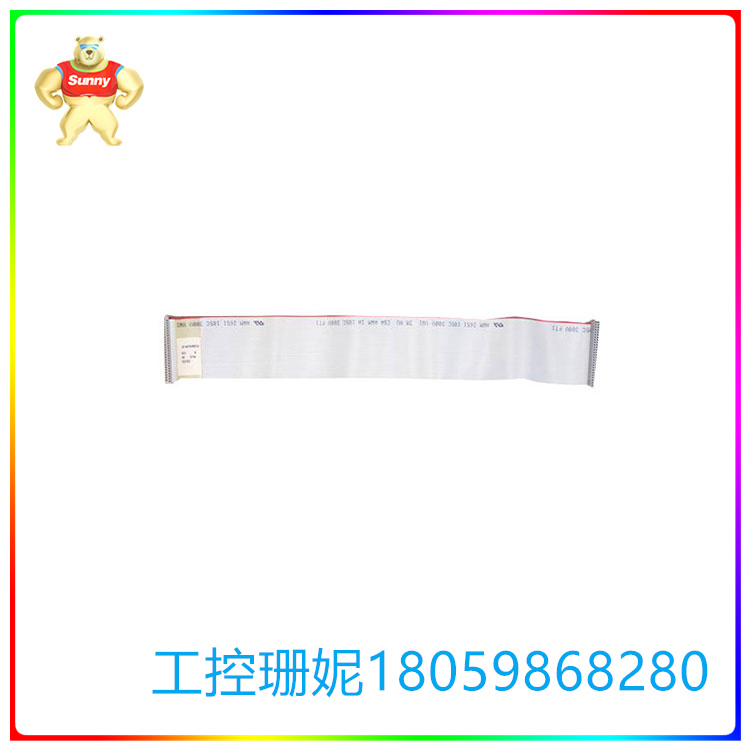

30-W2960B01A 电缆链接 50 针带状电缆

【产品详情】

配置：

• 17.5 英寸长

• IDC 连接器

特征：

25 个 232 引脚多协议 EIA-<>-D 串行端口

该MVME712M是用于摩托罗拉 MPU VME 模块、VME 处理器模块、嵌入式控制器和单板计算机 （SBC） 系列处理器模块的 I/O 转换模块。MVME712M兼容MVME147、MVME1600、MVME162、MVME2600、MVME167、MVME2700、MVME177、MVME3600 MVME4600。MVME712M用作处理器模块与其外围设备之间的接口。该模块的目的是提供后面板行业标准连接器，以简化外部客户电缆要求。

P2 适配器组件将 I/O 信号和接地从机箱背板上的 P2 连接器、VMEmodule MPU 连接处路由到MVME712M。MVME712M将信号路由到四个串行端口，其前面板上有四个行业标准 DB-25 连接器。串行端口可通过 MVME 232M 上的跳线布置配置为 EIA-712-D DTE 或 DCE。MVME712M前面板还具有以太网端口、SCSI 端口和打印机端口。此外，MVME712M将EIA-232-D端口2信号路由到内部调制解调器。

MVME712M需要使用不包括在内的 P2 转接板。P2 适配器板的功能包括：

• 允许 SCSI 电缆连接到其他 SCSI 设备和/或通过扁平带状电缆MVME712M的连接器 • SCSI 终端电阻安装在插座中，用于电缆末端或电缆

中间配置

• 端接器电源从连接器 P2 上的 +5 伏直流电在 P2 适配器上开发， 和 P1 适配器

上的保险丝 （2 A） • 将 EIA-232-D 端口、打印机端口、SCSI 和以太网信号连接到MVME712M的连接器

30-W2960B01A 电缆链接 50 针带状电缆

【英文介绍】

Settings:

• 17.5 inches long

• IDC Connectors

Features:

25 232-pin multi-protocol EIA-<>-D serial ports

The MVME712M is an I/O conversion module for MOTOROLA MPU VME modules, VME processor modules, embedded controllers, and Single-board Computer (SBC) series processor modules. The MVME712M is compatible with MVME147, MVME1600, MVME162, MVME2600, MVME167, MVME2700, MVME177, MVME3600 and MVME4600. The MVME712M serves as the interface between the processor module and its peripherals. The module is designed to provide rear panel industry standard connectors to simplify external customer cable requirements.

The P2 adapter component routes the I/O signal and ground from the P2 connector and VMEmodule MPU connections on the backplane of the chassis to the MVME712M. The MVME712M routes signals to four serial ports and has four industry-standard DB-25 connectors on its front panel. The serial port can be configured as EIA-712-D DTE or DCE via a jumper arrangement on the MVME 232M. The MVME712M front panel also has Ethernet ports, SCSI ports, and printer ports. In addition, the MVME712M routes the EIA-232-D port 2 signal to the internal modem.

The MVME712M requires a P2 adapter that is not included. The functions of P2 adapter board include:

• A connector that allows SCSI cables to be connected to other SCSI devices and/or via a flat ribbon cable MVME712M • A SCSI terminal resistor is installed in a socket for the cable end or cable

Intermediate configuration

• Terminal power is developed from connector P2 with +5 volts DC on the P2 adapter, and P1 adapter

Fuse (2 A) on the connector that connects the EIA-232-D port, printer port, SCSI and Ethernet signals to the MVME712M
