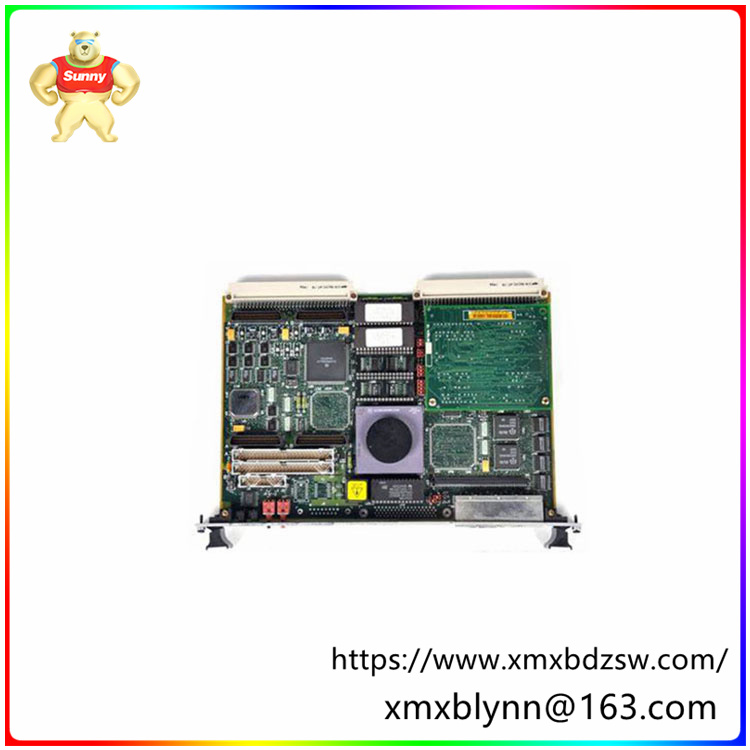

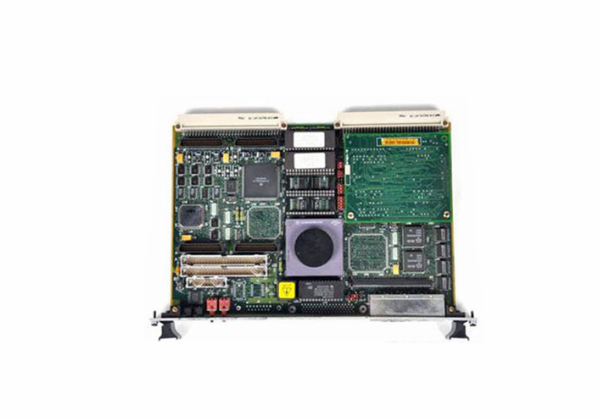

MVME162-533A 处理器与浮点协处理器 实现与其他VME模块的通信

>>>>>型号:MVME162-533A   处理器与浮点协处理器   实现与其他VME模块的通信

【功能描述】

配置:

•32 MHz MC68040处理器与浮点协处理器

•16mb DRAM

•512kb sram

•1mb闪存

•(4)工业包装港口

•以太网收发接口

SCSI总线接口与32位本地总线突发DMA

•串口B接口:EIA-232-D (DCE)串行接口模块，型号:SIMM06

部件编号:01-W3960B 04D

子卡部件号:01-W3992B 01A

功能:

中央处理器(CPU): MVME162-533A可能包含MC68040微处理器，这是20世纪90年代工业控制系统中常用的32位CPU。它执行控制程序并为自动化系统执行计算。

内存:主板可能有内置RAM(随机存取内存)用于程序和数据存储，代码中的“16MB”表示内存容量为16MB。

I/O(输入/输出)功能:MVME162-533A很可能提供各种I/O接口，用于连接到VME系统中的其他模块。这可能包括:

串行端口:用于与终端或调制解调器等外部设备通信。

并行端口:用于连接打印机或其他传统设备。

SCSI接口:用于连接大容量存储设备，如硬盘驱动器。

VME总线接口:连接单板与VME背板，实现与其他VME模块的通信。

【英文介绍】

Configuration:

• 32 MHz MC68040 Processor with Floating-Point Coprocessor

• 16 MB DRAM

• 512 KB SRAM

• 1 MB Flash Memory

• (4) Industry Pack Ports

• Ethernet Transceiver Interface

• SCSI Bus Interface with 32-Bit Local Bus Burst DMA

• Serial Port B Interface: EIA-232-D (DCE) Serial Interface Module, Model Number: SIMM06

Part Number: 01-W3960B 04D

Daughter Card Part Number: 01-W3992B 01A

Functionalities:

Central Processing Unit (CPU): The MVME162-533A likely houses an MC68040 microprocessor, a 32-bit CPU commonly used in industrial control systems during the 1990s. It executes control programs and performs calculations for the automation system.

Memory: The board might have built-in RAM (Random Access Memory) for program and data storage, and the "16MB" in the code suggests a memory capacity of 16 Megabytes.

I/O (Input/Output) Capabilities: The MVME162-533A most likely provides various I/O interfaces for connecting to other modules within the VME system. This could include:

Serial Ports: For communication with external devices like terminals or modems.

Parallel Ports: For connecting printers or other legacy devices.

SCSI Interface: For connecting mass storage devices like hard drives.

VME Bus Interface: Connects the board to the VME backplane for communication with other VME modules.
