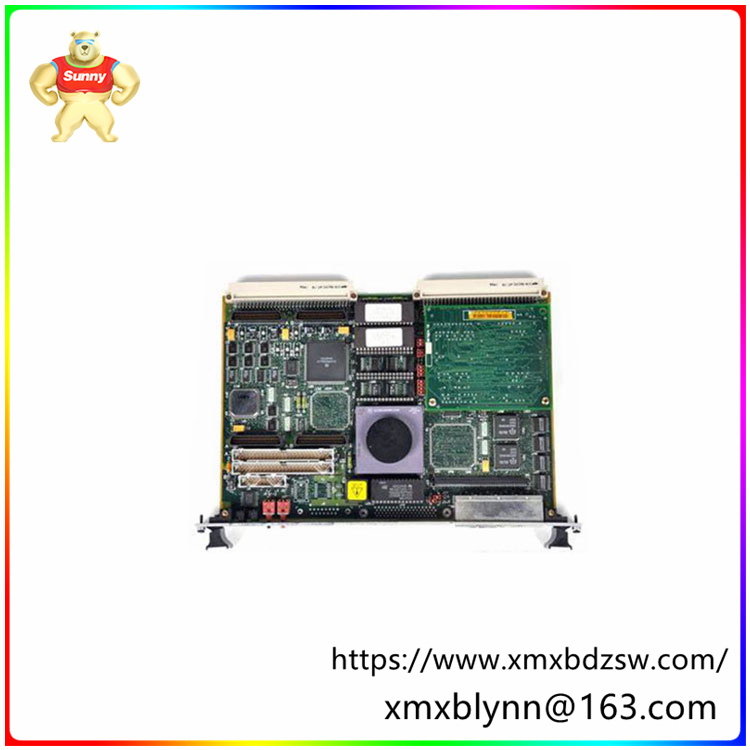

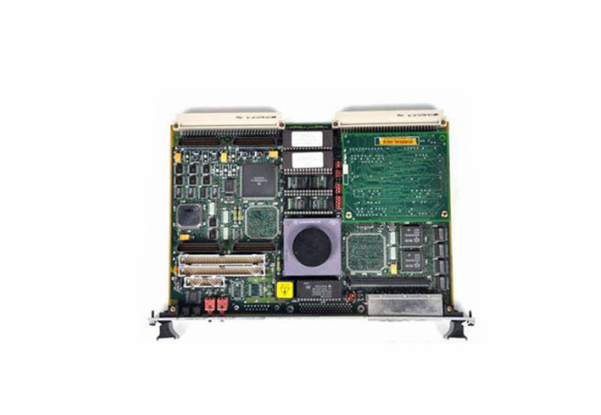

MVME162-212 VME板载计算机 每个通道可以配置为电压或电流输入

>>>>>型号:MVME162-212   VME板载计算机   每个通道可以配置为电压或电流输入

【功能描述】

MVME162-212是一款由摩托罗拉公司生产的VME板载计算机。它采用了68040处理器，主频为25 MHz，并配备了4 MB的内存。此外，它还具有2个串口，尺寸为6U，背板为VME64。

MVME162-212在工业领域中具有广泛的应用，包括自动化控制、数据采集、通信、医疗以及军事等领域。其强大的处理能力和稳定的性能使得它能够满足各种复杂和严苛的工业环境需求。

从功能上看，MVME162-212的AI815模拟输入模块具有8个通道，每个通道可以配置为电压或电流输入，但电流和电压信号不能在同一输入/输出模块上混合。这些通道具有12位分辨率，并配备了电流限制的变送器供应以及HART直通通信功能。

在使用MVME162-212时，用户需要遵循一定的使用事项。例如，在PLC屏结构图上，主站上的模块需要按照特定的顺序排列。此外，PLC的CPU采用具有加强型ETHERNET功能的CPU，可以实现远程信号采集和与其他模块的信息交换。

总的来说，MVME162-212是一款功能丰富、性能稳定的工业计算机，能够满足各种工业自动化和控制的需求。但在使用前，建议用户仔细阅读相关文档，并遵循制造商的使用指南，以确保其正确、安全地运行。

【英文介绍】

The MVME162-212 is a VME onboard computer manufactured by MOTOROLA. It uses a 68040 processor at 25 MHz and comes with 4 MB of RAM. In addition, it also has 2 serial ports, size 6U, and the backplane is VME64.

MVME162-212 has a wide range of applications in the industrial field, including automation control, data acquisition, communications, medical and military fields. Its powerful processing power and stable performance make it able to meet the needs of a variety of complex and harsh industrial environments.

Functionally, the AI815 analog input module of the MVME162-212 has eight channels, each of which can be configured as a voltage or current input, but the current and voltage signals cannot be mixed on the same input/output module. These channels have 12-bit resolution and are equipped with a current-limited transmitter supply and HART pass-through communication capability.

When using MVME162-212, the user needs to follow certain instructions. For example, on the PLC screen structure diagram, the modules on the master station need to be arranged in a specific order. In addition, the CPU of the PLC uses a CPU with enhanced ETHERNET function, which can realize remote signal acquisition and information exchange with other modules.

Overall, the MVME162-212 is a feature-rich, stable industrial computer that can meet a variety of industrial automation and control needs. However, before use, it is recommended that users carefully read the relevant documentation and follow the manufacturer's usage guidelines to ensure its correct and safe operation.
