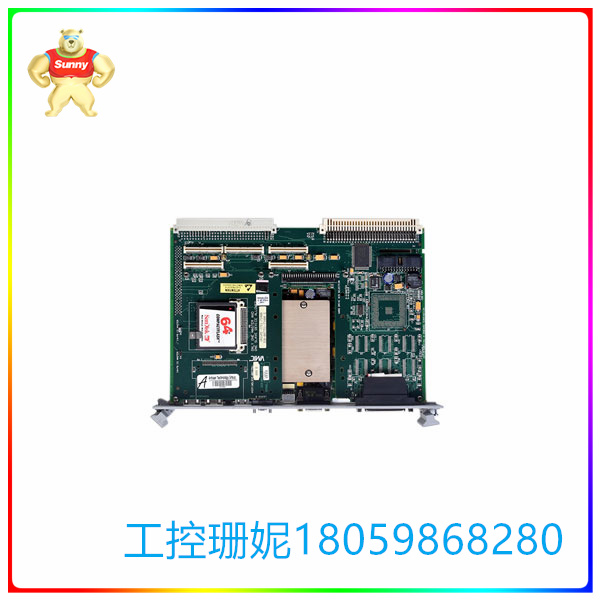

VMIVME-7751 单板计算机 双以太网

☆型号：VMIVME-7751 单板计算机 双以太网

【产品详情】

VMIVME-7751-760000（又名 VMIVME-7751-76000）

• 处理器：1.26 GHz Pentium III，带 512 KB 高速缓存

• SDRAM：512 MB

• CompactFlash：未安装 • SCSI 接口：未安装 • IDE 硬盘：未安装

特征：

高达 1.26 GHz 的奔腾 III 处理器，带 256 KB 高级传输缓存

高达 512 MB PC133 SDRAM，使用单个 SODIMM

内部AGP SVGA控制器，带4 MB显示缓存

支持 10BaseT 和 100BaseTX 的双以太网控制器

可选 PCI 双通道 Ultra160 SCSI

Abaco Systems / VMIC VMIVME-7751 系列奔腾 III VME 单板计算机将英特尔奔腾 III 处理器引入 VMEbus，提供高达 1.26 GHz 的处理器速度。奔腾 III 处理器具有 32 位寻址和 64 位数据总线。其超标量架构允许每个时钟周期执行三条指令。动态分支预测单元、单独的指令和数据缓存以及 MMX 技术也提高了处理器的性能。奔腾 III 处理器还提供 256 KB（1.26 GHz 具有 512 KB）的高级传输缓存（片上，全速 2 级缓存），使用双独立总线架构以实现高带宽和高性能。此 L2 缓存以与处理器相同的时钟频率运行，从而提高了性能。

概述

VME-7751 是一款双插槽奔腾 III SBC，工作频率高达 1.26 GHz，具有 512 KB 的 SDRAM。其他 I/O 包括多达 3 个 PMC 扩展站点、双以太网和多达 1 GB 的 CompactFlash。

☆型号：VMIVME-7751 单板计算机 双以太网

【英文介绍】

This unit includes parallel port cables. If necessary, it can be removed at the time of purchase.

VMIVME-7751-760000 (also known as VMIVME-7751-76000)

• Processor: 1.26 GHz Pentium III with 512 KB cache

• SDRAM: 512 MB

CompactFlash: Not installed SCSI interface: not installed IDE hard disk: not installed

Features:

Pentium III processor up to 1.26 GHz with 256 KB of advanced transfer cache

Up to 512 MB PC133 SDRAM using a single SODIMM

Internal AGP SVGA controller with 4 MB display cache

Dual Ethernet controllers with 10BaseT and 100BaseTX support

Optional PCI dual-channel Ultra160 SCSI

The Abaco Systems/VMIC VMIVME-7751 series Pentium III VME single-board computers bring Intel Pentium III processors to VMEbus, offering processor speeds of up to 1.26 GHz. The Pentium III processor has 32-bit addressing and a 64-bit data bus. Its superscalar architecture allows three instructions to be executed per clock cycle. Dynamic branch prediction units, separate instruction and data caches, and MMX technology also improve processor performance. The Pentium III processor also offers an advanced transfer cache (on-chip, full-speed level 2 cache) of 256 KB (1.26 GHz with 512 KB), using a dual independent bus architecture for high bandwidth and high performance. This L2 cache runs at the same clock rate as the processor, which improves performance.

summarize

The VME-7751 is a dual-slot Pentium III SBC operating at up to 1.26 GHz with 512 KB of SDRAM. Other I/ OS include up to 3 PMC extension sites, dual Ethernet, and up to 1 GB of CompactFlash.

3 PMC extension sites

Up to 512 MB SDRAM

Pentium III processors up to 1.26 GHz

Dual Ethernet
