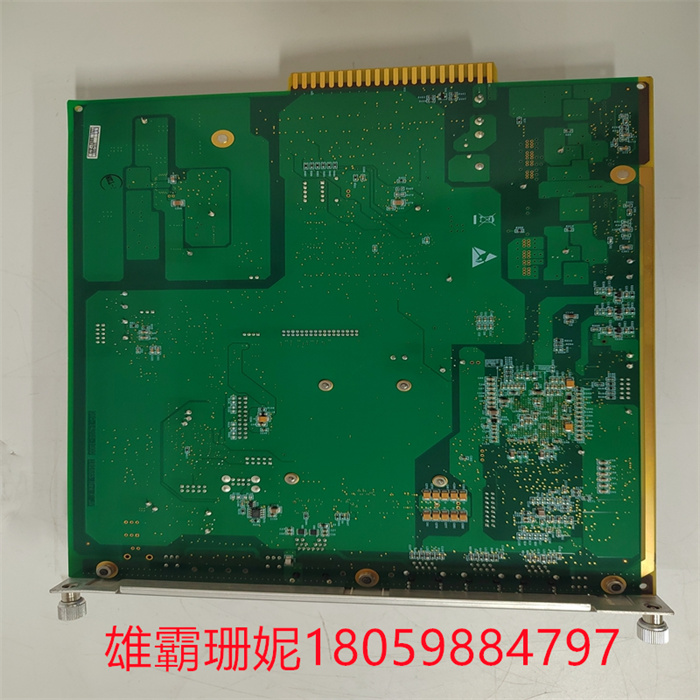

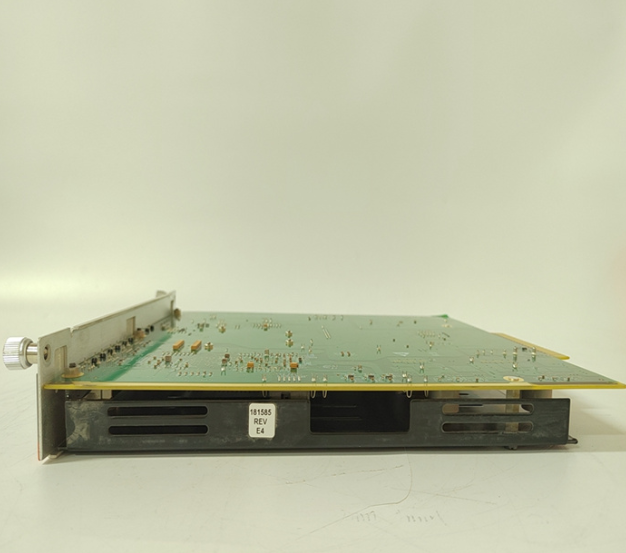

METSO DPU-MR 控制器模块

METSO  DPU-MR 控制器模块

METSO  DPU-MR 控制器模块

METSO DPU-MR PROFIBUS DP和CI801在单CPU和冗余CPU配置中，ABB驱动器可以通过PROFIBUS DP和CI801。参见第171页的图59。只能使用标准驱动器连接到CI801。

每个驱动器可以连接十四（14）个标准驱动器如果没有连接I/O单元，则为CI801。对于可以使用的驱动器的数量当I/O单元（TB820）和标准驱动器都被连接时已连接，请参阅有关PROFIBUS DP FCI的文档。有关ABB驱动器及其类型（Std和Eng）的更多信息，请参阅S800 I/O文档。有关分支装置的信息（第171页图59），请参阅ABB驱动系统文档。ABB驱动器也可以通过PROFIBUS DP（CI854/CI854A）连接，直接连接到PROFIBUS DP从模块NPBA-12、RPBA-01和FPBA-01。

METSO  DPU-MR 控制器模块

METSO DPU-MR PROFIBUS DP and CI801 In single-CPU and redundant CPU configurations, ABB drives can pass the PROFIBUS DP and CI801. See Figure 59 on page 171. You can only connect to the CI801 using standard drives.

Each drive can be connected to fourteen (14) standard drives, CI801 if no I/O unit is connected. For the number of drives that can be used when both the I/O unit (TB820) and the standard drive are connected, see the documentation on PROFIBUS DP FCI. For more information about ABB drives and their types (Std and Eng), see the S800 I/O documentation. For information on branch devices (Figure 59, page 171), see the ABB Drive System documentation. ABB drivers can also be connected via PROFIBUS DP (CI854/CI854A), directly to the PROFIBUS DP slave modules NPBA-12, RPBA-01 and FPBA-01.

METSO  DPU-MR 控制器模块
