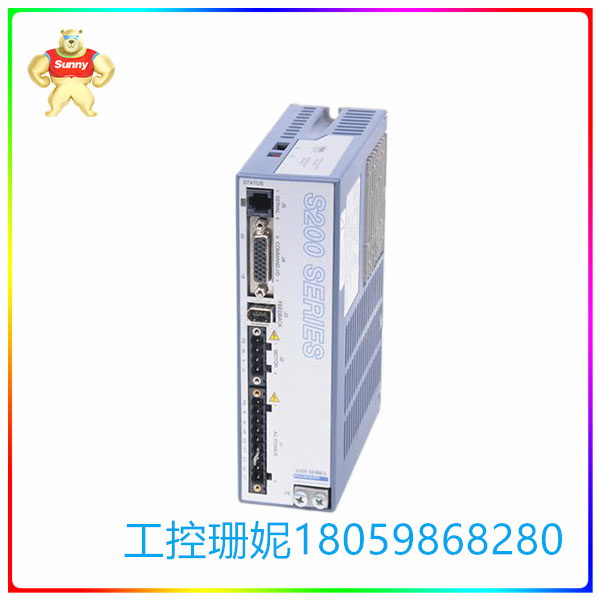

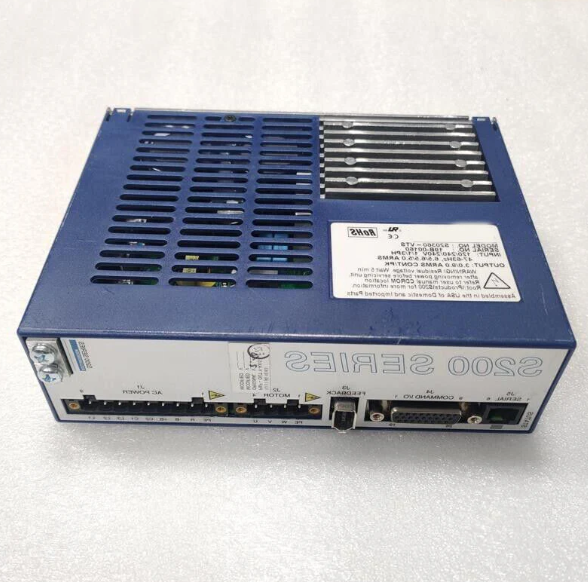

S20360-VTS  紧凑型无刷伺服驱动器 全数字工业驱动器

【产品详情】

特征：

全数字工业驱动器

高分辨率反馈（24 位）

高性能电流环路带宽（3-5kHz）

带电子齿轮的扭矩和速度控制底座

高达 18 位模拟基准输入和编码器等效输出

丹纳赫 Mtion / 科尔摩根 S200 伺服驱动器是首款速度环路带宽为 800 Hz 的全数字工业驱动器。这些紧凑型驱动器提供简化的调谐和无与伦比的系统吞吐量，具有高分辨率反馈和高性能电流环路带宽，可实现平稳运动和快速响应。带有电子电机铭牌的智能反馈设备允许在大多数应用中即插即用调试。

可用于 120/240 VAC 和 20-90 VDC 操作，额定电流从 1.5 安培 RMS 连续到 48 安培 RMS 峰值

24 位高分辨率反馈

3-5 kHz 高性能电流环路带宽

带有电子电机铭牌的智能反馈设备无需驱动参数设置和伺服回路调整，可在大多数应用中实现即插即用调试

标准功能包括扭矩和速度控制底座、电子齿轮、高达 18 位的模拟参考输入和编码器等效输出

可支持分度或基于 SynqNet™ 的可编程运动控制的选件

符合 UL 508C、CE、EN50178、EN61800-C 和 Semi F47 标准

独立的“保持活动”电源输入允许从紧急停止条件下快速恢复

好处

宽功率范围允许在整个机器中部署单个驱动器系列

紧凑的占地面积允许使用较小的机柜，或安装在靠近使用点的位置

光隔离输入/输出、正向锁定连接器和全面的故障保护，可延长机器寿命并防止意外损坏

专为提高机器产量而设计的高性能系统

易于使用的图形用户界面可缩短工程和支持时间

降低总体成本

S20360-VTS  紧凑型无刷伺服驱动器 全数字工业驱动器

【英文介绍】

Features:

Full digital industrial drive

High resolution feedback (24-bit)

High performance current loop bandwidth (3-5kHz)

Torque and speed control base with electronic gear

Up to 18-bit analog reference input and encoder equivalent output

The Danaher Mtion/Kollmorgen S200 servo driver is the first fully digital industrial driver with a speed loop bandwidth of 800 Hz. These compact drivers offer simplified tuning and unmatched system throughput with high-resolution feedback and high-performance current loop bandwidth for smooth motion and fast response. Intelligent feedback devices with electronic motor nameplates allow plug and play debugging in most applications.

Available for 120/240 VAC and 20-90 VDC operation, rated from 1.5 amp RMS continuous to 48 amp RMS peak

24-bit high resolution feedback

3-5 kHz High performance current loop bandwidth

Intelligent feedback devices with electronic motor nameplates do not require drive parameter Settings and servo loop adjustments, enabling plug and play debugging in most applications

Standard features include torque and speed control mounts, electronic gears, analog reference inputs up to 18 bits, and encoder equivalent outputs

Options that support indexing or SynqNet™ -based programmable motion control

Meets UL 508C, CE, EN50178, EN61800-C and Semi F47 standards

Separate "Stay active" power inputs allow quick recovery from emergency stop conditions

advantage

The wide power range allows a single drive family to be deployed throughout the machine

The compact footprint allows smaller cabinets to be used or installed close to the point of use

Optical isolation input/output, forward-locking connectors and comprehensive fault protection extend machine life and prevent accidental damage

High-performance systems designed to increase machine productivity

Easy to use graphical user interface reduces engineering and support time

Reduce overall cost
