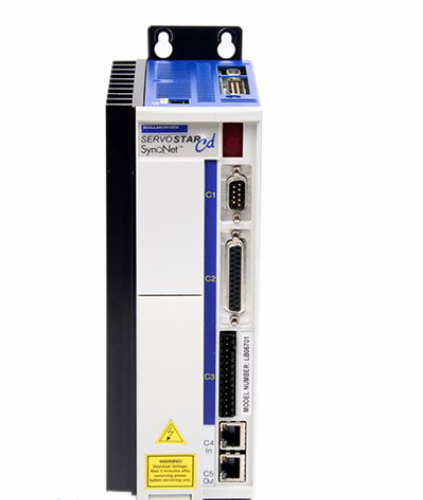

Z2004H-36121 伺服驱动器模块

【产品详情】

特征：

增量编码器

扭矩更新高达 16 kHz

5V 至 24V 工作电压

两个双向 RS422 I/O

两个模拟输入

科尔摩根/驱动程序是基于经过现场验证的 SERVOSTAR CD 驱动器系列的 SynqNet 伺服驱动器。功率级与CD相同，而控制级是专用的SynqNet设计。CD SynqNet 被设计为扭矩驱动器，SynqNet 控制器以高伺服更新率提供扭矩命令。提供广泛的 I/O 支持，包括特定功能的输入，如限位开关、Home 和 Brake，以及众多通用 I/O。CD SynqNet 提供 N 分频功能，使其能够被编程为每 N 个驱动器编码器计数器寄存器计数生成一个输出脉冲。

SynqNet 是一款高性能、全数字同步网络，专为多轴运动控制应用而设计。SynqNet 的物理层基于 IEEE 802.3 标准的 100BASE-TX，以太网的物理层，而 SynqNet 的数据链路和应用层是专门为运动控制应用而设计的。100BASE-TX 介质系统基于 ANSI TP-PMD 物理介质标准中发布的规范。100BASE-TX系统通过两对电线运行，一对用于“接收”数据信号，另一对用于“发送”数据信号。

Z2004H-36121 伺服驱动器模块

【英文介绍】

Features:

Incremental encoder

Torque updates up to 16 kHz

Operating voltage from 5V to 24V

Two two-way RS422 I/O

Two analog inputs

Kol Morgen/Drivers are SynqNet servo drives based on the field-proven SERVOSTAR CD drive family. The power level is the same as the CD, while the control level is a dedicated SynqNet design. CD SynqNet is designed as a torque driver, and the SynqNet controller provides torque commands at a high servo update rate. Extensive I/O support is available, including inputs for specific functions such as limit switches, Home and Brake, as well as numerous general-purpose I/ OS. CD SynqNet provides an n-division function that enables it to be programmed to generate an output pulse for every N driver encoder counter register counts.

SynqNet is a high-performance, fully digital synchronous network designed for multi-axis motion control applications. SynqNet's physical layer is based on the IEEE 802.3 standard 100BASE-TX, the physical layer of Ethernet, while SynqNet's data link and application layer is specifically designed for motion control applications. The 100BASE-TX media system is based on the specifications published in the ANSI TP-PMD Physical Media Standard. The 100BASE-TX system operates through two pairs of wires, one for "receiving" data signals and the other for "sending" data signals.

Z2004H-36121 伺服驱动器模块
