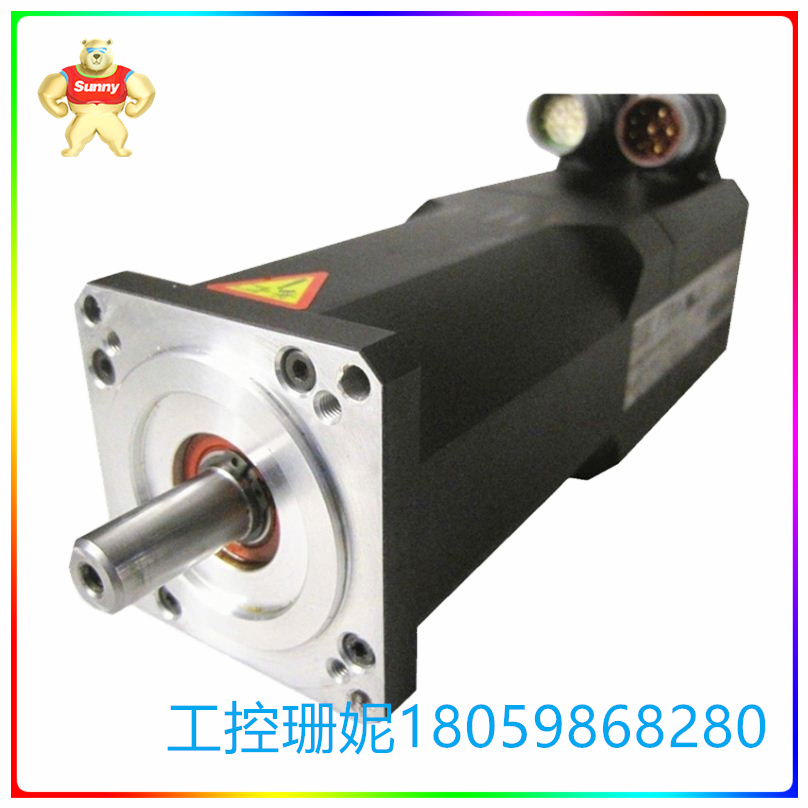

AKM34H-ANC2R-00 提供可满足应用与性能要求的多种反馈选件

【产品详情】

AKM2G 系列

AKM2G 代表了行业优秀的 AKM 系列电机的极高水平

由于电机的尺寸不变但是转矩明显增大，因此 OEM 无需更换电机安装座或者使用更大占地空间便可大幅提升性能。

由于 AKM2G 占地空间较小，但是功率与转矩密度较大，因此可让需要对设备进行“瘦身”的设计师受益匪浅。

提供可满足应用与性能要求的多种反馈选件，另外还包括提高功能安全性的选件

电机轴、安装座与连接器选件

抱闸与温度传感器选件

现有的低电压型号将 AKM2G 的优点集于一身，由于功率较高，因此成为了尺寸较小并且能源需求量较低的电机，适合于便携式、移动式与电池供电式应用

用于 120 Vac-480 Vac 工作条件的标准绕组，以及用于 24-96 伏（Vdc 或 Vac）的低电压绕组，具有不同的转速/转矩性能曲线

符合应用要求以及适合于所选驱动器的反馈选件

科尔摩根 SFD3

HIPERFACE DSL（支持功能安全性应用）

EnDat 2.2（支持功能安全性应用）

旋变

换向编码器为低电压电机的标准选件

可通过联合研发提供客户指定的反馈设备

连接器选件（适合于反馈类型与电机尺寸）

SpeedTec （单电缆或双电缆设计的标准）

ytec（双路连接器，只需使用电机上的一个插孔，适用于 2 号电机）

提供可与科尔摩根 AKD2G 伺服驱动器以及 AKD 系列中其他伺服驱动器配套使用的系统电缆选件

单电缆 SFD3/HIPERFACE DSL/EnDat 2.2

用于旋变的双电缆式产品，包括采用 ytec 连接器的电机与换向编码器

标准达到 IP54 等级，如果包含选配轴封，则达到 IP65 等级。可通过联合研发达到其他可选防护等级

符合国际标准的安装座，配备各种光轴或闭式键槽

可通过联合研发提供其他安装座与电机轴选件

24VDC 机械抱闸选件

可为电机提供极大保护并且可与伺服驱动器兼容的温度传感器选件

适合于湿式与干式运行应用的低摩擦轴封选件

AKM34H-ANC2R-00 提供可满足应用与性能要求的多种反馈选件

【英文介绍】

AKM2G Series

The AKM2G represents the highest level of industry excellence in the AKM series of motors

Because the size of the motor is the same but the torque is significantly increased, Oems can significantly improve performance without changing the motor mount or using more floor space.

Because AKM2G has a small footprint but a high power and torque density, it can benefit designers who need to slim down their devices.

Multiple feedback options are available to meet application and performance requirements, as well as options to improve functional safety

Motor shaft, mount and connector options

Lock and temperature sensor options

The existing low-voltage model combines the benefits of AKM2G with a smaller and lower energy requirement due to its higher power, suitable for portable, mobile and battery-operated applications

Standard windings for 120 VAC-480 Vac operating conditions, and low voltage windings for 24-96 volts (Vdc or Vac) have different speed/torque performance curves

Meets application requirements and feedback options suitable for the selected drive

Kollmorgen SFD3

HIPERFACE DSL (Support for functional security applications)

EnDat 2.2 (Support for functional safety applications)

Rotatory transformation

Commutation encoders are standard options for low voltage motors

Customer specific feedback equipment can be provided through joint development

Connector options (suitable for feedback type and motor size)

SpeedTec (standard for single or dual cable designs)

ytec (two-way connector, using only one jack on the motor, for No. 2 motor)

System cable options are available for use with Kollmorgen AKD2G servo drives and other servo drives in the AKD family

Single cable SFD3/HIPERFACE DSL/EnDat 2.2

Dual-cable products for rotations, including motors with ytec connectors and commutator encoders

The standard is IP54 grade and IP65 grade if optional shaft seals are included. Other optional levels of protection can be achieved through joint development

International standard mounting seats with various optical shafts or closed keyways

Additional mount and motor shaft options are available through joint development

24VDC mechanical lock option

Temperature sensor options that provide maximum motor protection and are compatible with servo drives

Low friction shaft seal options for wet and dry operating applications

AKM34H-ANC2R-00 提供可满足应用与性能要求的多种反馈选件
