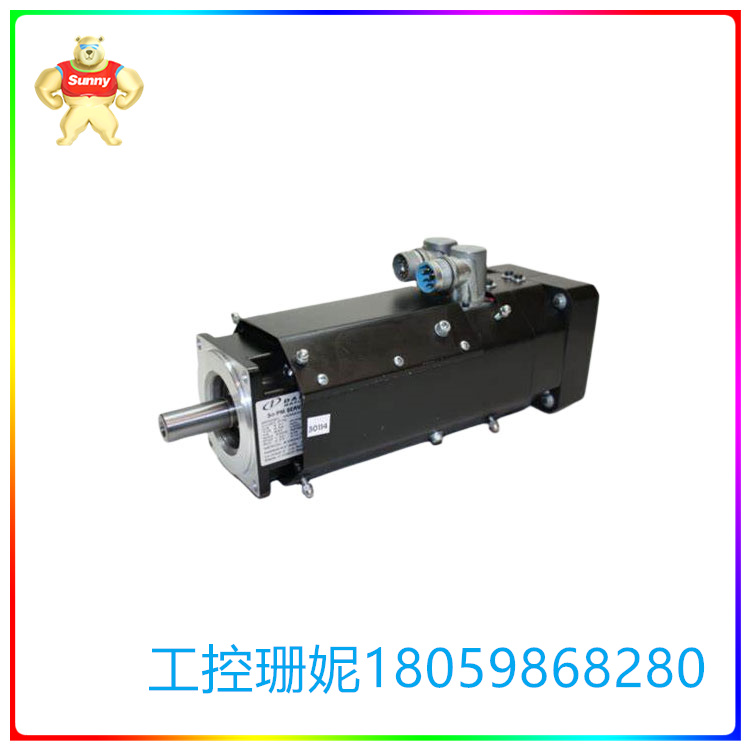

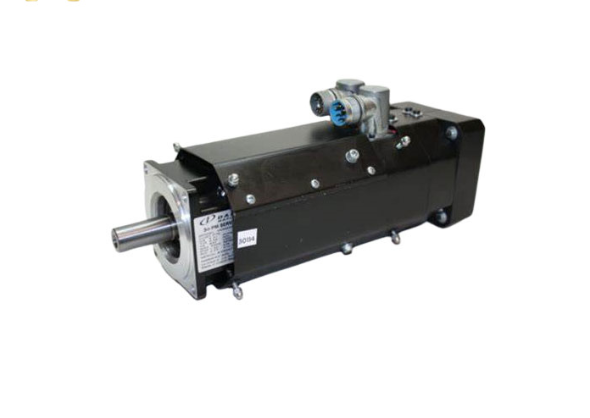

AKM33E-ANCNR-00AKM™系列伺服电机

【产品详情】

AKM33E-ANCNR-00AKM™系列伺服电机

我们广泛的标准配置提供与定制解决方案相同的优势

凭借超过 500,000 种标准产品和几乎无限的协同设计修改，选择适合您的电机（针对您的特定应用要求进行优化）从未如此简单。

广泛的选择和灵活性，从广泛的标准产品和共同设计的修改中脱颖而出，以完全符合您的设计要求

一流的性能，具有行业领先的功率密度

极低齿槽效应和低谐波失真，确保平稳性能

易于调试和使用，在 AKD™ 系列伺服驱动器上具有即插即用电机识别和全频自动整定功能

特征

8 种帧尺寸，28 种帧/堆叠组合

转速高达 8,000 RPM

75 伏直流;120、240、480 VAC 绕组

各种反馈装置、安装和密封件

与大多数科尔摩根伺服驱动器直接配接

绕组的额定温度在 100°C 环境中的上升温度为 40°C，同时使用 155°C（F 类）绝缘材料

cURus， 符合 CE 标准， UL 认可

选项

反馈设备：旋转变压器、SFD、增量式和正弦编码器

用于改善环境保护的密封件

轴端封闭或开放式键槽，平整、光滑

双或单英特康连接器，直型或可旋转型

24 VDC 故障安全制动器

IP67 冲洗版本，带食品级润滑脂和饰面

AKM33E-ANCNR-00AKM™系列伺服电机

【英文介绍】

AKM™ series servo motors

Our wide range of standard configurations offer the same benefits as custom solutions

With more than 500,000 standard products and almost unlimited co-design modifications, choosing the right motor for you - optimized for your specific application requirements - has never been easier.

Wide selection and flexibility to stand out from a wide range of standard products and co-design modifications to exactly match your design requirements

Best-in-class performance with industry-leading power density

Very low slot effect and low harmonic distortion ensure smooth performance

Easy to debug and use with plug-and-play motor recognition and full frequency automatic tuning on AKD™ series servo drives

trait

8 frame sizes, 28 frame/stack combinations

Up to 8,000 RPM

75 volts DC; 120, 240, 480 VAC windings

Various feedback devices, installations and seals

Direct connection with most Kollmorgen servo drives

The rated temperature of the windings is 40°C in a 100°C environment with 155°C (Class F) insulation

cURus, CE standard, UL approved

Options

Feedback devices: rotary transformers, SFD, incremental and sinusoidal encoders

Seals for improved environmental protection

Shaft end closed or open keyway, smooth and smooth

Dual or single Intercom connectors, straight or rotatable

24 VDC fail-safe brake

IP67 flush version with food grade grease and finish
