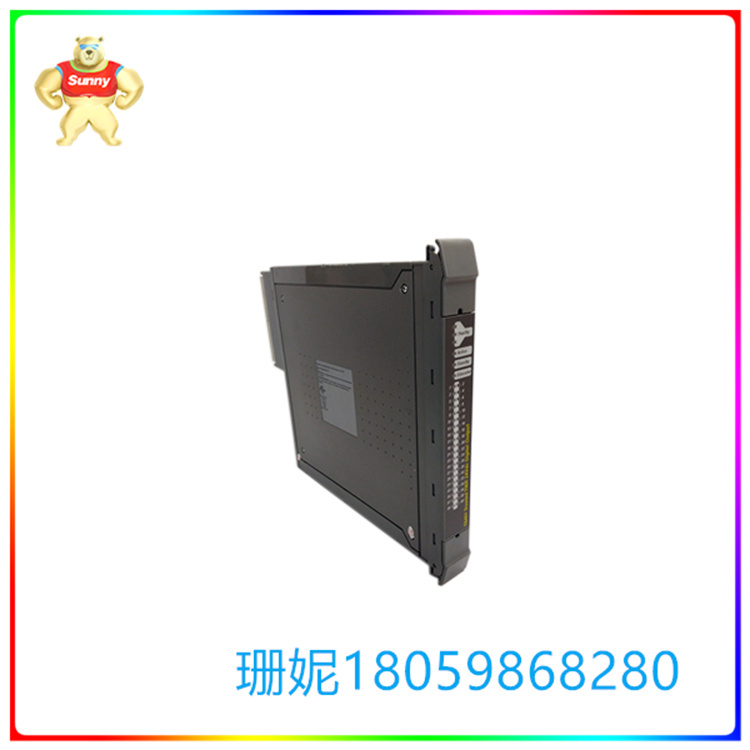

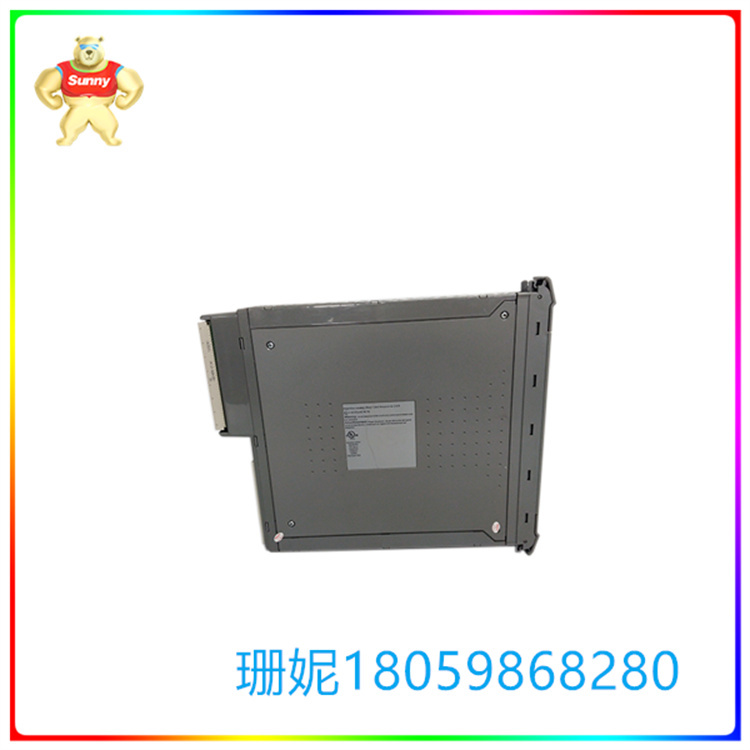

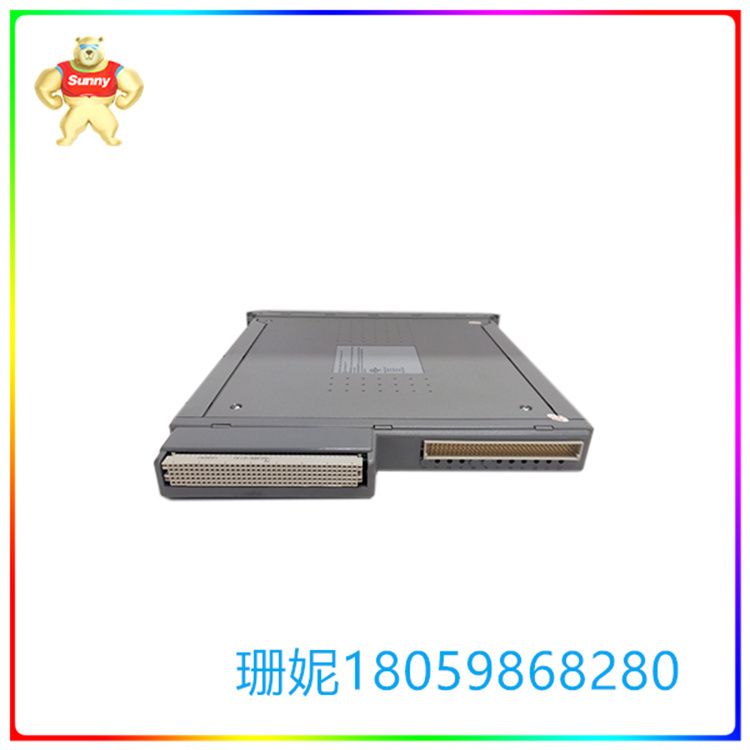

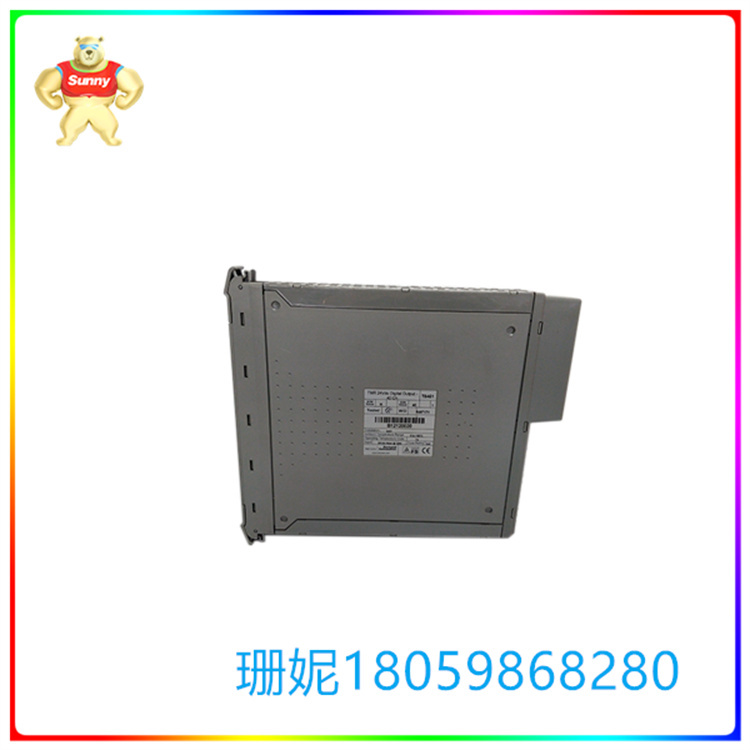

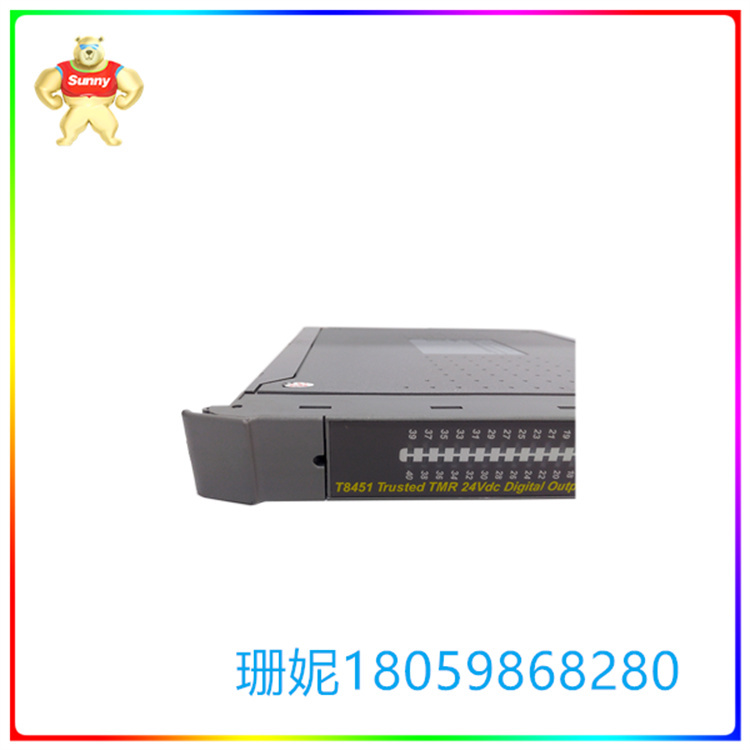

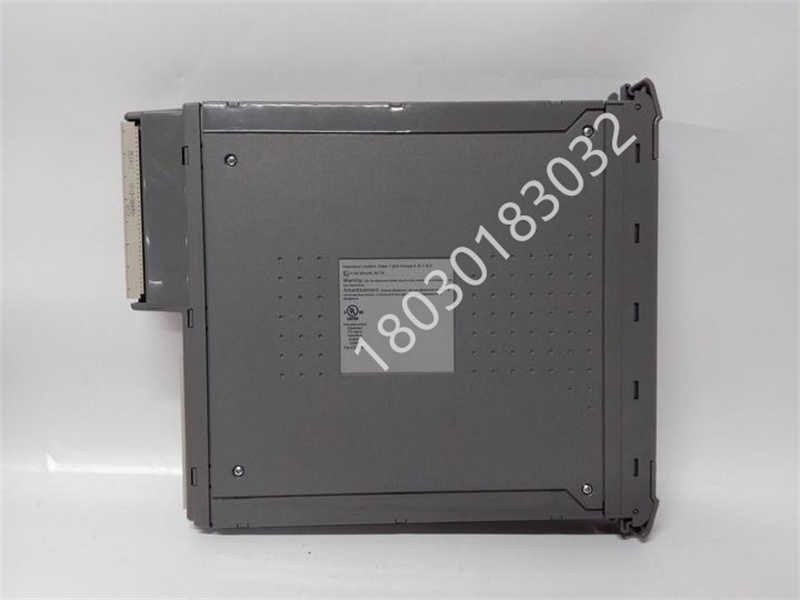

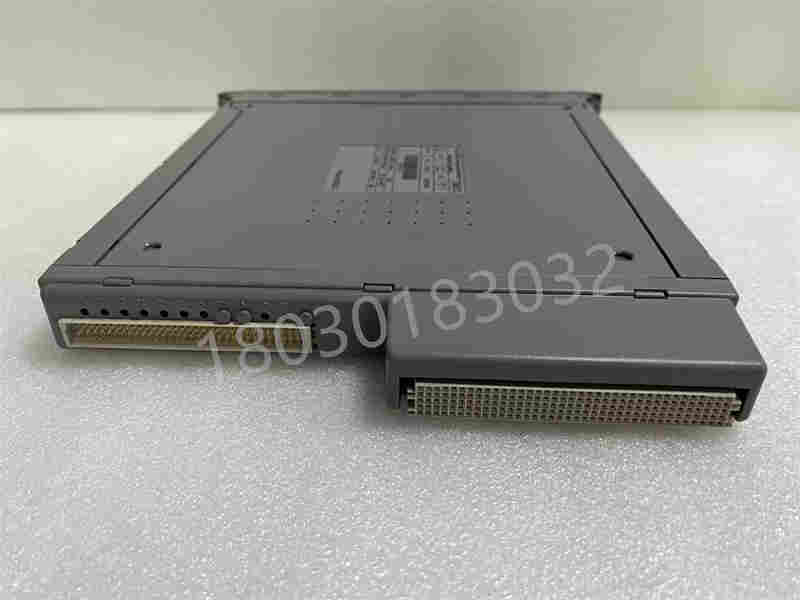

ICS TRIPLEX T8451 数字输出模块 TrustedTM 模块
【产品详情】
预计交货时间:4 - 6 周.
品牌 : ICS Triplex
产品编号 : T8451
产品类型 : TrustedTM 模块
系统电源电压范围:20 至 32Vdc
电路类型:容错,完全三重,可选线路监控
输出数量 : 40 通道
独立电源组:5 个输出中各 8 个
工作输出/现场电压范围:18 至 32V 直流
输出电压
测量范围:0 至 32V 直流
最大耐受性:-1 至 40V 直流
输出电流额定值(连续):每通道 2A,每个电源组限制为 8A
最大电容:3.5 发布前:30-55uF
闪光/脉冲电流负载:建议使用 3.5 版
最小导通状态负载电流:50mA
输出关断状态电阻(有效漏电):33Ω
输出导通电阻:0.6O
输出短路保护:电子(闭锁)
通道间串扰:>-40dB
版本 3.5:2800A 时至少 2uF
功耗
现场电源(每通道 1A):24W
系统电源 (24V) : 24W
现场公共隔离
持续工作:±250V dc
最大耐受性:±2.5kV dc
输出开/关延迟:0.5ms
采样更新时间:0.5ms
事件顺序
事件分辨率:1ms
自检间隔:2分钟
本质安全:外部屏障
输出短路保护:自动
工作温度:-5°C 至 60°C(23°F 至 140°F)
非工作温度:-25°C 至 70°C(-13°F 至 158°F)
温度变化 : 0.5ºC/min
工作湿度 : 5 – 95% RH 无冷凝
尺寸(长x宽x高):30cm x 3cm x 24.1cm
重量 :1.13 公斤
装运重量 : 3 Kg
ICS TRIPLEX T8451 数字输出模块 TrustedTM 模块
【英文介绍】
Estimated delivery time: 4-6 weeks.
Brand: ICS Triplex
Product Number: T8451
Product type: TrustedTM module
System power supply voltage range: 20 to 32Vdc
Circuit type: Fault tolerant, full triple, optional line monitoring
Output quantity: 40 channels
Independent power group: 8 out of 5 outputs
Working output/Field voltage range: 18 to 32V DC
Output voltage
Measuring range: 0 to 32V DC
Maximum tolerance: -1 to 40V DC
Output current rating (continuous) : 2A per channel, limited to 8A per power pack
Maximum capacitance: 3.5 pre-release: 30-55uF
Flash/pulse current load: Version 3.5 is recommended
Minimum on-state load current: 50mA
Output off state resistance (effective leakage) : 33Ω
Output on-resistance: 0.6O
Output short-circuit protection: Electronic (latching)
Inter-channel crosstalk: >-40dB
At least 2uF with version 3.5:2800A
Power dissipation
Onsite power supply (1A per channel) : 24W
System power supply (24V) : 24W
On-site public isolation
Continuous operation: ±250V dc
Maximum tolerance: ±2.5kV dc
Output on/off delay: 0.5ms
Sampling and updating time: 0.5ms
Sequence of events
Event resolution: 1ms
Self-check interval: 2 minutes
Intrinsically secure: external barriers
Output short-circuit protection: automatic
Operating temperature: -5°C to 60°C (23°F to 140°F)
Non-operating temperature: -25°C to 70°C (-13°F to 158°F)
Temperature change: 0.5ºC/min
Operating humidity: 5-95%RH Non-condensing
Dimensions (L x W x H) : 30cm x 3cm x 24.1cm
Weight: 1.13 kg
Shipping weight: 3 Kg
ICS TRIPLEX T8451 数字输出模块 TrustedTM 模块
