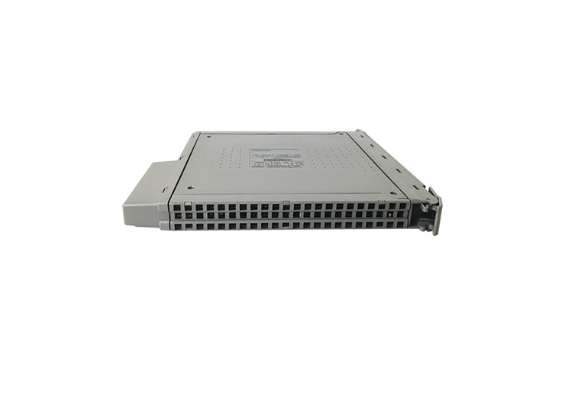

ICS TRIPLEX T8403C 三模冗余 使用输入电路

Trusted@三模冗余(TMR)24VDC/48VDC数字输出模块与40个现场设备接口。T8403C三重诊断测试是在整个模块中执行，包括电流测量，以及投票输出通道各部分上的电压。还进行了测试对于卡滞和卡滞故障。通过TMR实现容错40个输出通道中每个通道的模块内架构。提供现场设备的自动线路监控。T8403C功能启用模块，用于检测现场接线中的开路和短路故障，以及加载设备。对于配对插槽配置，受信任机箱中的两个相邻插槽配置用于相同的模块功能。一个插槽是主插槽另一个是唯一的辅助(或备用)插槽。两个插槽在受信任机箱的后部，T8403C带有双宽I/0接口电缆将两个插槽连接到公共现场接线终端。正常期间操作时，主插槽包含活动模块，如模块前面板上的激活指示灯。

Trusted®TMR 24 Vdc数字输入模块接口到40个字段输入

设备。容错是通过三模冗余实现的(TMR)架构在模块内为每一个40个输入通道。每个场输入是三倍，输入电压是测量使用输入电路。由此得到的场电压测量值为比较用户可配置的阈值电压来确定报告字段输入状态。当在现场开关处安装线路监控装置时，该模块可以检测现场电缆的断路和短路。线监测每个输入通道的功能是独立配置的。的三次电压测量，加上机载诊断测试，提供全面的故障检测和容错功能。该模块提供板载事件序列(SOE)报告分辨率为1ms。状态的变化触发SOE条目。州由可以在每个通道上配置的电压阈值决定基础

ICS TRIPLEX T8403C 三模冗余 使用输入电路

Trusted@ TMR)24VDC/48VDC digital output module interfaces with 40 field devices. T8403C triple diagnostic test is performed in the whole module, including current measurement and voltage on each part of the voting output channel. Tests were also carried out for stuck and stuck faults. The intra-module architecture of each of the 40 fault-tolerant output channels is realized through TMR. Provide automatic line monitoring of field equipment. T8403C function enabling module is used to detect open circuit and short circuit faults in field wiring and load equipment. For a paired slot configuration, two adjacent slots in a trusted chassis are configured for the same module function. One slot is the main slot and the other is the only auxiliary (or spare) slot. Two slots are at the back of the trusted chassis, and T8403C has a double-width I/O interface cable to connect the two slots to the public field terminal. During normal operation, the main slot contains active modules, such as the activation indicator on the front panel of the module.

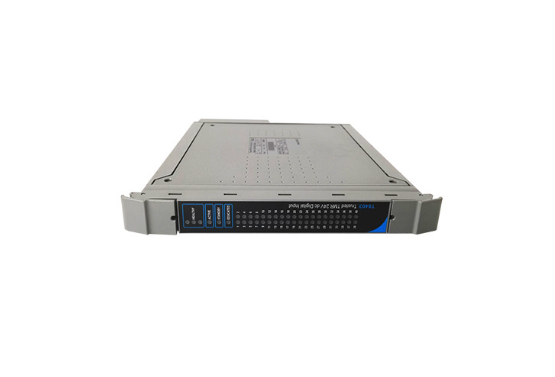

The Trusted® TMR 24 Vdc Digital Input module interfaces to 40 field input

devices.  Fault tolerance is achieved through a Triple Modular Redundant

(TMR) architecture within the module for each of the 40 input channels.

Each field input is triplicated and the input voltage is measured using a

sigma-delta input circuit.  The resulting field voltage measurement is

compared to user configurable threshold voltages to determine the reported

field input state.  When a line-monitoring device is installed at the field switch,

the module can detect open and short circuit field cables.  Line monitoring

functions are independently configured for each input channel.  The

triplicated voltage measurement, coupled with onboard diagnostic testing,

provides comprehensive fault detection and tolerance.

The module provides onboard Sequence of Events (SOE) reporting with a

resolution of 1 ms.  A change of state triggers an SOE entry.  States are

determined by voltage thresholds that can be configured on a per channel

basis
