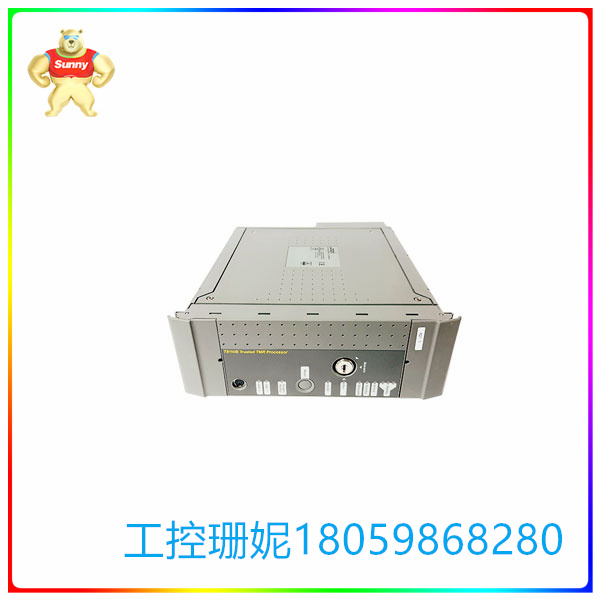

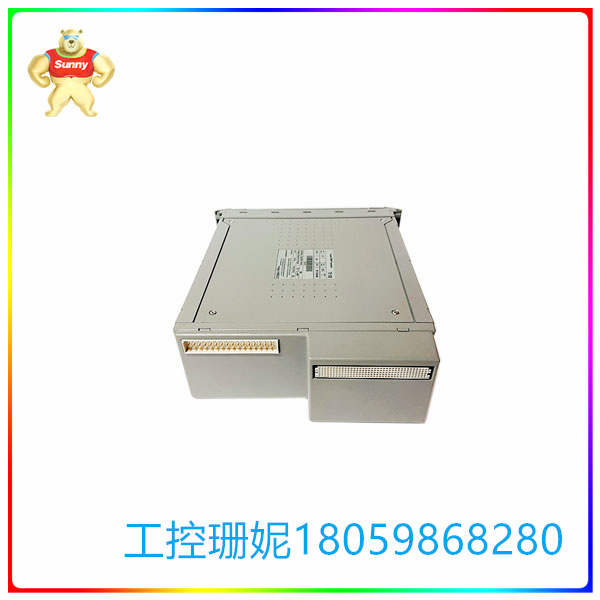

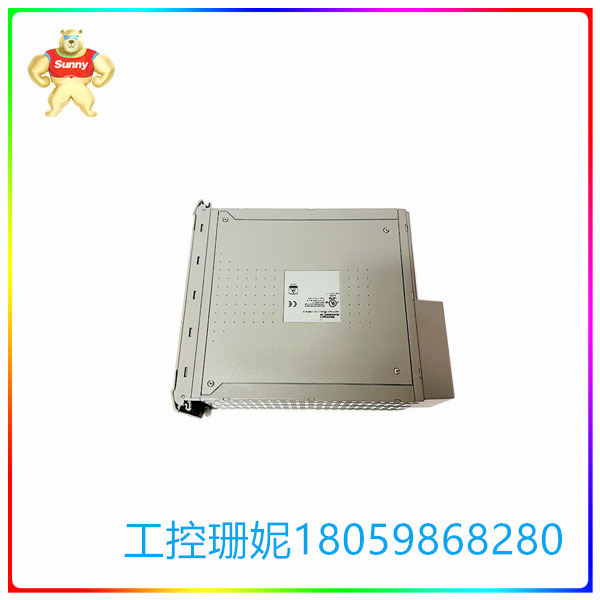

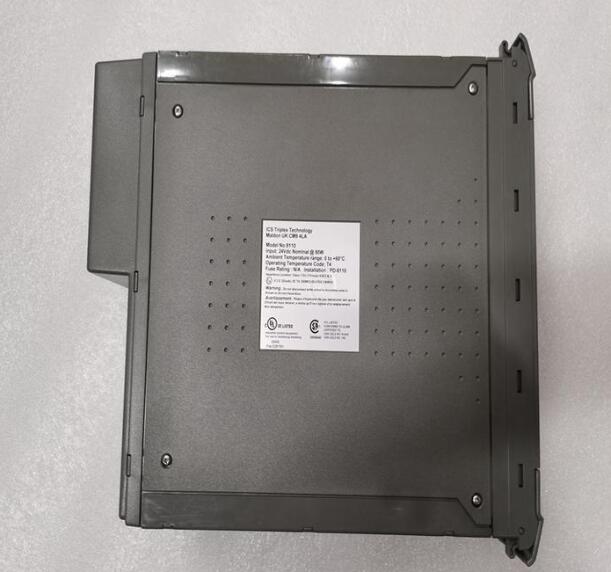

☆型号:T8110B 可信TMR处理器模块 三模冗余的容错设计
【产品详情】
可信TMR处理器是一种基于三模冗余的容错设计
(TMR)体系结构在锁步配置中运行。图1显示了简化版本
可信TMR处理器模块的基本结构。
该模块包含三个处理器故障遏制区(FCRS),每个区域一个
摩托罗拉Power PC系列处理器及相关内存(EPROM, DRAM, Flash ROM,
和NVRAM),内存映射I/O,选民和胶逻辑电路。每个处理器FCR都有
三分之二(2003年)读取访问其他两个处理器的FCR存储器
系统去污操作。
该模块的三个处理器存储和执行应用程序、扫描和更新
维护I/O模块,检测系统故障。每个处理器执行应用程序
独立,但与其他两个同步。他们中的一个应该
处理器分裂,其他机制允许重新同步失败的处理器
另外两个。
每个处理器都有一个接口,该接口由输入选择器、差异检测逻辑、
存储器和输出驱动总线接口到模块间总线。各输出
处理器通过模块连接器连接到不同的通道
Inter-Module总线
可信TMR处理器与其他机箱中的模块之间的通信是通过的
一个可信接口模块,如可信TMR接口到Regent+Plus I/O
或Expander机箱的Expander接口。
四种模块存储器的功能是:
•EPROM -保存模块引导加载程序
•闪存ROM -存储模块固件和应用程序
•DRAM -具有可扩展容量的工作存储器
•NVRAM -保存数据,如事件日志和保留的程序数据
☆型号:T8110B 可信TMR处理器模块 三模冗余的容错设计
【英文介绍】
Trusted TMR processor is a fault-tolerant design based on three-mode redundancy
The (TMR) architecture runs in a lock-step configuration. Figure 1 shows the simplified version
Basic structure of trusted TMR processor module.
The module contains three processor failure containment Zones (FCRS), one for each zone
MOTOROLA Power PC series processors and associated memory (EPROM, DRAM, Flash ROM,
And NVRAM), memory mapped I/O, voter and glue logic circuits. Every processor FCR has it
Two-thirds (2003) read access to the FCR memory of the other two processors
System decontamination operation.
The module's three processors store and execute applications, scans, and updates
Maintain I/O modules and detect system faults. Each processor executes the application
Independent, but synchronized with the other two. One of them should
The processor splits, and other mechanisms allow the resynchronization of failed processors
The other two.
Each processor has an interface consisting of an input selector, difference detection logic,
The memory and output driver bus interface to the intermodule bus. Each output
Processors are connected to different channels through module connectors
Inter-Module bus
The communication between the trusted TMR processor and the modules in the other chassis is through
A trusted interface module, such as a trusted TMR interface to Regent+Plus I/O
Or Expander interface of the Expander chassis.
The functions of the four modular memory types are:
•EPROM - Save the module boot loader
Flash ROM - Storage module firmware and applications
•DRAM - working memory with scalable capacity
NVRAM - holds data such as event logs and retained program data
