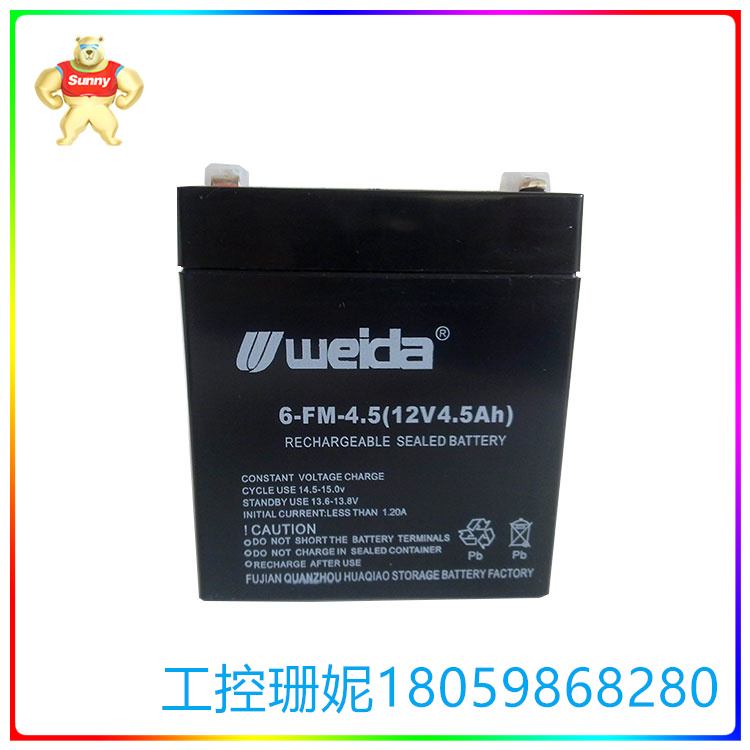

产品名称：威达蓄电池6-FM-4.5
容量：12V4.5AH
质保：1年
质保：1年
寿命：3年
电池特性：规范系列浮充寿数可达8～10年
6-FM系列特色：
1.长期放电特性。
2.适用于备用和储能电源运用。
3.特别的极板规划，循环运用寿数长。
4.特别的铅钙合金配方，增强了板栅的耐腐蚀性，延长了电池运用寿数。
5.专用隔板增强了电池内部功用。
6.热容量大，减少了热失控的危险，不易干枯，可在较恶劣的环境中运用。
7.气体复合效率高。
8.失水很少无电解液层化现象。
9.贮存期较长。
10.杰出的深放电康复功用。
11.选用气相二氧化硅颗粒度小，比外表积大。
12.自放电率极低，习惯温度规模广。
13.选用阀控式安全阀，运用安全、牢靠。
环境温度
铅酸蓄电池正常运转的温度是20-4口℃，更佳运转温度是25℃.当温度每升高5℃，蓄电池的运用寿数下降10%，且简单发作热失控.
环境湿度
铅酸蓄电池的运转湿度应该在5^--95%《不结露)之lad,境湿度过高，会在蓄电池外表结露，简单呈现短路;PF境湿度过低，简单发作静电.
尘埃
尘埃过多，简单使铅酸蓄电池短路，安全阀阻塞失效.
功用优点：
◆ 优胜的负载特性
彻底满意从0到100％负载的跃变，而无需切换到旁路，并维护输出安稳牢靠。
◆ 完善的维护功用
具有优异的输入输出过欠压维护、输入浪涌维护、相序维护、电池过充过放维护、输出过载短路维护、温度过高维护等多种体系维护和报警功用。
◆ 高功用的动态特性
选用瞬时操控办法和有效值等多种反应操控，完成了高动态调节，减小输出电压失真度。
◆ 可选的输入谐波滤波器或12脉冲整流器
有效按捺输入的谐波污染，进步UPS的输入功率因数，减小输入的谐波电流。
◆ 可选的电池巡检模块
可对单个的参数进行丈量，并在显现板上显现出来。如有电池故障当即报警，告诉管理员。
◆ 个性化的设置
可根据用户用电要求对UPS进行作业状况设置，用户可选 UPS作业形式、ECO节能作业形式、EPS作业形式。
电池循环寿数的终结为正极板铅膏发作软化，形成上述情况的原因, R.F. Nelson等人以为，恒压限流充电形式下，进行循环的电他正极板正常，而负极板有部分外表搜盖了白色的硫酸铅层，因为此办法充电时.到充电后期充电电流很小.而这一电流消耗于氧气在负极板的再复合.然后使得电池负极板在循环进程中长期处于欠充状况致使发作负极板硫酸盐化;而后一种充电形式克服了前一仲充电形式的不足。
蓄电池运用说明
（一）、运用办法
1.蓄电池赤色为正极，黑色为负极，请正确衔接；
2.该电池为荷电出厂，用户可直接运用，如出厂时刻较长，运用前应进行补充电；
3.电池的装置和线路的衔接应由专业人员进行。
（二）、维护保养及注意事项
1、蓄电池应在室温、枯燥、清洁及通风杰出的环境中储存，防止阳光直射，远离热源；
2、坚持蓄电池外部及接线处的清洁、枯燥；
3、主张室温环境中给电池充电，冬天应采纳保温防冻措施；
4、坚持蓄电池边侧气孔疏通；
6、电解液对皮肤、眼睛、衣物等均有腐蚀效果，应注意防备电解液溢出。
（三）、常见问题：
1、过放电：因为用户运用设备没有低压维护，保证电池不低余10V补电；
2、充电接反：如果严重接反充电，电压会越充越低，极力防止；
3、电池短路：电池短路会形成电池烧坏，乃至兴起直至作废；
4、电池没电压：电池现已损坏，停止运用；
5、电池兴起：内部极板短路直接作废停止运用；
6、液体溢出：有液体应擦洗干净避免腐蚀其它金属物品，有少数溢出不影响运用；
7、运送摔裂：形成摔裂的应当即停止运用。
正确的挑选UPS后备三瑞蓄电池容量，对UPS的正常运转至关重要。三瑞蓄电池容量挑选偏小不只不能满意UPS后备时刻，还会因电池放电倍率太大，严重影响电池的功用及运用寿数，同时给体系的安稳运转带来极大的隐患。
蓄电池容量（ah）是指在规范环境温度下，电池在给定时刻指点停止电压时，可供给的恒定电流（A）与继续放电时刻（h）的乘积。在断定了UPS的品牌和后备时刻下。能够根据蓄电池品牌样本数据中供给的恒功率放电数据表或许横流放电曲线，通过功率法，估算法以及电源法等核算办法来核算断定蓄电池的型号和容量。
Product name: Vida Battery 6-FM-4.5
Capacity: 12V4.5AH
Warranty: 1 year
Life span: 3 years
Battery characteristics: The standard series floating charge life can reach 8 ~ 10 years
6-FM Series Features:
1. Long-term discharge characteristics.
2. Suitable for backup and energy storage power supply.
3. Special plate planning, long cycle life.
4. The special lead-calcium alloy formula enhances the corrosion resistance of the grid and prolongs the service life of the battery.
5. Special partition enhances the internal function of the battery.
6. Large heat capacity, reduce the risk of thermal runaway, not easy to dry, can be used in harsh environments.
7. High gas recombination efficiency.
8. Water loss is rarely without electrolyte layer phenomenon.
9. Long storage period.
10. Outstanding deep discharge rehabilitation function.
11. The selection of fumed silica particle size is small, larger than the surface.
12. The self-discharge rate is very low, and the customary temperature scale is wide.
13. Use valve-controlled safety valve, safe and reliable.
Ambient temperature
The normal operating temperature of the lead-acid battery is 20-4 ° C, and the better operating temperature is 25 ° C. When the temperature rises by 5 ° C, the service life of the battery decreases by 10%, and the heat is simply out of control.
Ambient humidity
The operating humidity of the lead-acid battery should be 5^- 95% "no condensation) of the lad, the ambient humidity is too high, will condensation on the surface of the battery, simple short circuit; the ambient humidity is too low, simple static electricity.
dust
Too much dust, simple lead acid battery short circuit, safety valve blocking failure.
Functional advantages:
◆ Excellent load characteristics
Complete load jumps from 0 to 100% without switching to bypass and maintaining stable and reliable output.
◆ Perfect maintenance function
With excellent input and output over and under voltage maintenance, input surge maintenance, phase sequence maintenance, battery over charge and over discharge maintenance, output overload and short circuit maintenance, high temperature maintenance and other system maintenance and alarm functions.
◆ Dynamic characteristics of high function
A variety of response controls such as instantaneous control and effective value are selected to achieve high dynamic adjustment and reduce the distortion of output voltage.
◆ Optional input harmonic filter or 12-pulse rectifier
Effectively control the input harmonic pollution, improve the input power factor of UPS, reduce the input harmonic current.
◆ Optional battery inspection module
Individual parameters can be measured and displayed on the display board. If there is a battery fault immediately alarm, tell the administrator.
◆ Personalized Settings
The UPS can be set according to the user's power requirements. The user can choose UPS operation mode, ECO energy-saving operation mode, and EPS operation mode.
The end of the battery cycle life is the positive plate lead paste attack softening, forming the cause of the above situation, R.F. Nelson et al., in the form of constant voltage and current limiting charging, the circulating electrode plate is normal, and the negative plate has a part of the surface covered with white lead sulfate layer, because this method is charged. The charging current is very small in the late charging period. This current is consumed by the recombination of oxygen on the negative plate. Then, the negative plate of the battery is undercharged for a long time during the cycle process, resulting in sulfation of the negative plate. The latter charging form overcomes the shortcomings of the former charging form.
Battery instruction
(1) Methods of application
1. The red electrode of the battery is positive, and the black electrode is negative. Connect the battery correctly.
2. The battery is delivered on charge, and users can use it directly. If the factory time is longer, it should be supplemented before use;
3. The connection of the battery device and the line should be carried out by professionals.
(2) Maintenance and precautions
1, the battery should be stored in room temperature, dry, clean and ventilated environment, prevent direct sunlight, away from heat sources;
2, adhere to the battery external and wiring clean, boring;
3. It is recommended to charge the battery in the room temperature environment, and insulation and anti-freezing measures should be adopted in winter;
4, adhere to the battery side pores dredging;
6, electrolyte on the skin, eyes, clothing, etc., have a corrosive effect, should pay attention to guard against electrolyte overflow.
(3) Common problems:
1, overdischarge: because the user uses the equipment without low-voltage maintenance, to ensure that the battery is not low more than 10V recharge;
2, charging and reverse: if seriously connected to reverse charging, the voltage will be charged lower and lower, and try to prevent;
3, battery short circuit: battery short circuit will cause the battery to burn out, and even rise until obsolete;
4, battery no voltage: the battery has been damaged, stop using;
5, the rise of the battery: internal plate short circuit directly scrapped to stop use;
6, liquid overflow: liquid should be scrubbed clean to avoid corrosion of other metal items, a few overflow does not affect the use;
7, transport crack: the formation of crack should be stopped.
The correct selection of UPS backup three rui battery capacity is crucial to the normal operation of UPS. The selection of small battery capacity is not only unsatisfactory for UPS backup moments, but also because the battery discharge rate is too large, which seriously affects the function and service life of the battery, and brings great hidden dangers to the stable operation of the system.
Battery capacity (ah) refers to the product of the constant current (A) that can be supplied by the battery when the stop voltage is indicated at a given time and the time of continued discharge (h) at a standardized ambient temperature. After determining the UPS brand and backup moment. According to the constant power discharge data table or cross-flow discharge curve supplied in the battery brand sample data, the model and capacity of the battery can be calculated and determined by power method, estimation method and power supply method.
