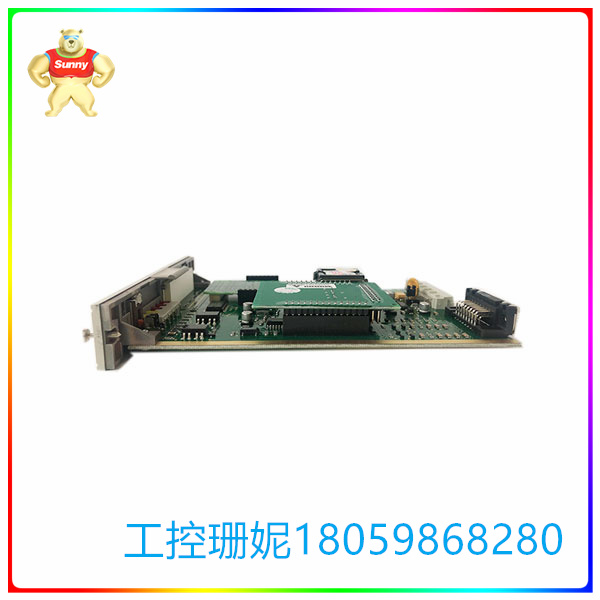

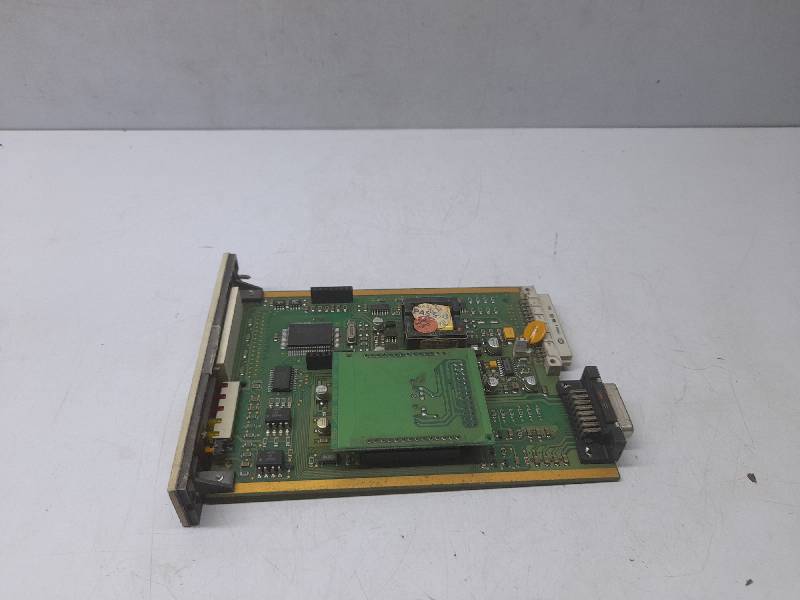

05701-A-0281 工业气体探测器

【产品详情】

PRINCIPAL FEATURES

The 5701 Series Control System is part of the System 57 family and is

designed to monitor field mounted industrial gas detectors.  The principal

features of the system are:

* Provides up to 16 channels of gas detection in a standard 19'' subrack using a 3U card format.

* Provides up to eight channels of gas detection in a half 19'' subrack using a 3U card format.

* Racking available for both front and rear access field wiring.

* Simple field connections for wire up to 2.5mm2

.

* Single channel mode of operation for high integrity systems.

* Channel Control Cards removable without disturbing other wiring.

* Catalytic bridge or 4 - 20mA input.

* Optional alarm change-over relay outputs.

* Multi-alarm mode for master, zoned and voted alarms.

* Rising, falling, STEL and LTEL / RATE alarm outputs.

* Update alarm on individual or multi channel alarms.

* Remote inhibit and reset inputs.

* Time delay on switch on and/or switch off of relay outputs.

* Optional 0 - 20mA or 4 - 20mA isolated monitor output.

* Easy to calibrate and operate using a dedicated Engineering card.

* EMC compliant.

* Options provided via Engineering Card:

* Master Alarm Update.

* Event Printers.

* Serial communication using Modbus protocol.

1 - 4

CHAPTER 1 - SYSTEM CONCEPT

MAN0443. P65 Issue 13 Aug 04 5701 Control System

05701-M-5001 A02279

2.  CONSTRUCTION

The system consists of individual 1'' (2.54cm) wide cards fitted to a

rigid custom rack designed to fit Euro rack cabinets.  Two rack widths

are available:

a. 19 inch with 17 card slots to house up to 16 Channel Control Cards

and an Engineering Card.

b. Half 19 inch with nine card slots to house up to eight Channel

Control Cards and an Engineering Card.

Each sub-rack contains an Engineering Card and a DC Input Card to

make up the rack system

The system is designed to meet the differing customer wiring

configurations and to achieve this the control functions are split away

from the relays and field wiring connections.  A single channel of gas

detection therefore consists of:

a. Sensor Drive Module

In order to achieve compatibility with a range of different inputs and

sensor types, the circuitry necessary to control the sensor is

housed on an independent plug-in Sensor Drive Module.  These

modules plug directly into a Channel Control Card and are factory

fitted.  There are two different modules, one for catalytic inputs and

one for 4 - 20mA inputs.

b. Single Channel Control Card

Each Single Channel Control Card functions independently and

contains all the necessary electronic circuitry to provide the sensor

drive, alarm detection and gas level display for that channel of gas

detection.

c. Field Interface or Relay Card

The Field Interface/Relay Cards provide the interface connections

between the Control Cards and their respective field connected

gas sensor.  In addition, Relay Cards provide alarm outputs to the

field connections

05701-A-0281 工业气体探测器

【英文介绍】

主要特点

5701系列控制系统是System 57系列的一部分

设计用于监控现场安装的工业气体探测器。校长

该系统的特点是:

*提供多达16个通道的气体检测在一个标准的19“机架使用3U卡格式。

*使用3U卡格式，在半19“机架中提供多达八个通道的气体检测。

*机架可用于前面和后面的访问现场布线。

*简单的现场连接电线高达2.5mm2

．

*高完整性系统的单通道操作模式。

*通道控制卡可拆卸，不干扰其他布线。

*催化桥或4 - 20mA输入。

*可选报警转换继电器输出。

*多报警模式主，分区和投票报警。

*上升，下降，STEL和LTEL / RATE报警输出。

*更新单个或多通道报警。

*远程抑制和复位输入。

*继电器输出的开关接通和/或开关断开的时间延迟。

*可选0 - 20mA或4 - 20mA隔离监视器输出。

*使用专用工程卡易于校准和操作。

* EMC兼容。

*通过工程卡提供的选项:

*主告警更新。

*事件打印机。

*采用Modbus协议进行串行通信。

1 - 4

第一章系统概念

MAN0443。P65 Issue 13 Aug 04 5701控制系统

05701 - m - 5001 A02279

2. 建设

该系统由单独的1“(2.54厘米)宽的卡安装在一个

刚性定制机架设计适合欧洲机架柜。两种机架宽度

是可用的:

a. 19英寸17卡插槽容纳多达16通道控制卡

和一张工程卡。

b.半19英寸，有9个卡槽，最多可容纳8个通道

控制卡和工程卡。

每个子机架包含一个工程卡和一个直流输入卡

组成机架系统

该系统的设计是为了满足不同的客户接线

配置和实现这一控制功能是分开的

从继电器和现场接线连接。单一的气体通道

因此，检测包括:

a.传感器驱动模块

为了实现与一系列不同输入和输入的兼容

传感器的类型，控制传感器所必需的电路是

安装在一个独立的插入式传感器驱动模块。这些

模块直接插入到通道控制卡和工厂

安装。有两个不同的模块，一个用于催化输入和

一个用于4 - 20mA输入。

b.单通道控制卡

每个单通道控制卡独立工作和

包含所有必要的电子电路来提供传感器

该燃气通道的驱动、报警检测和液位显示

检测。

c.现场接口或中继卡

现场接口/中继卡提供接口连接

在控制卡和各自的领域之间连接

气体传感器。此外，中继卡提供报警输出到

现场连接
