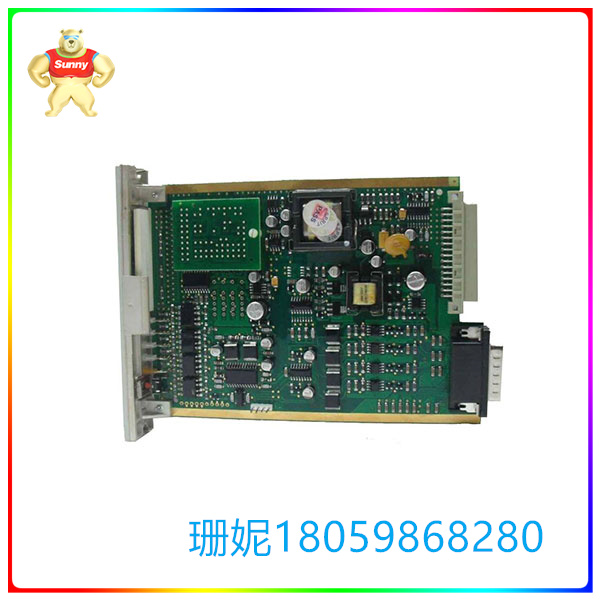

05704-A-0145 四通道控制卡4 – 20mA输入HONEYWELL

【产品详情】

HONEYWELL 05704-A-0145 控制卡

制造商:霍尼韦尔

产品编号:05704-A-0145

产品类型:四通道控制卡4 – 20mA输入

功耗:8.3W(最大)。7.5W(典型值)。

回路供电输出电压:隔离24V±5%调节，回路供电设备最大25mA。

回路保护:短路，开路电压50V..

配置:传感器电流源。

测量信号范围:0至25mA(线性)。

最大线路电阻:500欧姆回路电阻，包括传感器。

隔离击穿电压:大于50V dc至系统0V

重量:0.18公斤

运输重量:2公斤

监测应用的远程易燃检测系统。XCD RFD 将 XCD 发射器

与 705 可燃传感器相结合，经认证可用于 I

类 1 区额定区域。XCD RFD 提供单人、非侵入式操作，

并减少日常维护时间和成本。XCD

变送器包括两个可编程报警/故障继电器以及一个

行业标准的 4-20 mA 输出，带有可选的 Modbus RTU。

变送器的校准和继电器操作可通过变送器的背光LCD进行调整

。

在调整过程中自动禁止输出，从而降低维护期间

控制面板误报的风险。

Sensepoint RFD随附所有必要的附件，便于

安装。它可以使用提供的通用支架安装在

墙壁或 2“ 圆形支撑杆上。该探测器非常适合与导管或钢丝铠装电缆和压盖一起使用

，包括

3/4 英寸。接线盒的 NPT 和 M20 入口。

Sensepoint RFD 提供易于安装和快速的日常操作。

与霍尼韦尔分析的 Sensepoint 和 705 易燃传感器的标准

和高温变体兼容，

提高了产品系列的整体灵活性。符合 I 类 1 区

UL 性能标准

05704-A-0145 四通道控制卡4 – 20mA输入HONEYWELL

【英文介绍】

HONEYWELL 05704-A-0145 control card

Manufacturer: Honeywell

Product Number :05704-A-0145

Product type: Four-channel control card 4-20MA input

Power consumption :8.3W(Max.) 7.5W(typical value).

Loop supply output voltage: isolation 24V±5% adjustment, loop supply equipment maximum 25mA.

Circuit protection: short circuit, open circuit voltage 50V...

Configuration: Sensor current source.

Measuring signal range :0 to 25mA(linear).

Maximum line resistance :500 ohms loop resistance, including sensor.

Isolated breakdown voltage: > 50V dc to system 0V

Weight :0.18 kg

Shipping weight :2 kg

Remote flammable detection system for monitoring applications. XCD RFD will be an XCD emitter

In combination with the 705 combustible sensor, certified for use with I

Class 1 zone rated area. XCD RFD provides single-person, non-invasive operation,

And reduce routine maintenance time and cost. XCD

The transmitter includes two programmable alarm/fault relays as well as one

Industry standard 4-20 mA output with optional Modbus RTU.

Transmitter calibration and relay operation can be adjusted via the transmitter's backlit LCD

.

The output is automatically disabled during adjustment, reducing the maintenance period

Risk of false positives from the control panel.

The Sensepoint RFD comes with all the necessary accessories for easy

Install. It can be mounted using the generic bracket provided

Walls or 2 "round support rods. The detector is ideal for use with conduits or wire armored cables and gland

, include

3/4 inch. NPT and M20 inlet of junction box.

Sensepoint RFD offers easy installation and fast daily operation.

Standard with Honeywell analysis of Sensepoint and 705 flammable sensors

Compatible with high temperature variants,

Improves the overall flexibility of the product range. Meets Category I Zone 1

UL performance standard

05704-A-0145 四通道控制卡4 – 20mA输入HONEYWELL
