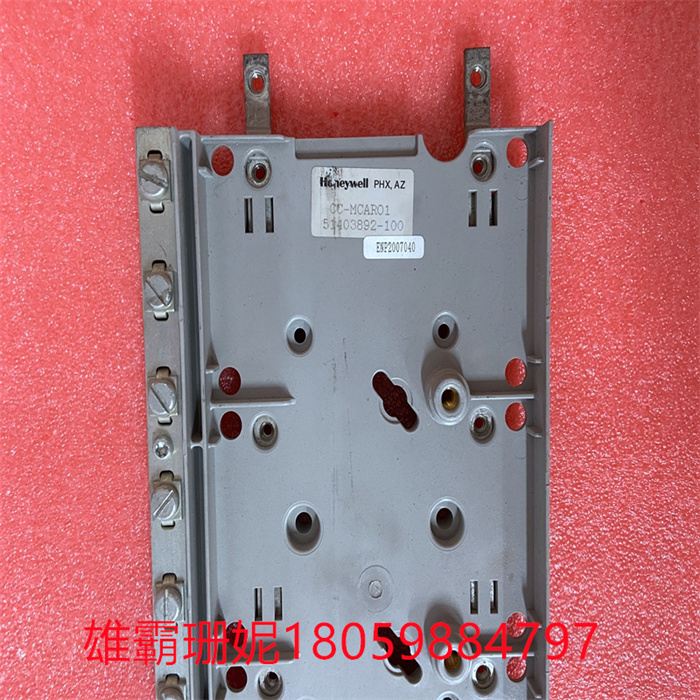

HONEYWELL CC-MCAR01 控制系统
HONEYWELL CC-MCAR01 控制系统
品牌:Honeywell
型号 :CC-MCAR01
产品描述
CC-MCAR01输出类型大致分为三种,继电器输出型、晶体管输出型和可控硅输出型. R-继电器;T-晶体管
继电器输出交流直流都可以,晶体管常见有5vdc和24vdc输出,可控硅比较少见,只有特殊输出型号才有.
考虑选用的CC-MCAR01类型,通常继电器输出模块具有价格低、使用电压范围广(可接市电)、负载能力大,导通压降小,承受瞬时电压和过电流的能力较强,但寿命短、响应时间较长、动作速度较慢等.
晶体管输出(可分PNP、NPN型)优点是通断速度快(脉冲输出,适合高频),一般为0.2ms左右;寿命长;缺点是工作电压低(不能接市电);负载能力弱,300mA左右。
可控硅输出模块适用于直流负载,开关频繁,反应速度快,寿命长,电感性低功率因数负荷场合,但价格较贵,过载能力较差.
CC-MCAR01有三种输入类型。一是直流输入,一般为DC24V或DC12V,分为源输入和漏输入。源输入是指输入电压为0V,COM端接24V,漏输入是指输入电压为24V,COM端0V;二是交流输入,输入规格为AC220V;第三种输入是模拟量输入,规格为0-20MA电流信号、4-20MA电流信号。
HONEYWELL CC-MCAR01 控制系统
Brand :Honeywell
Model: CC-MCAR01
Product description
CC-MCAR01 output types are roughly divided into three types, relay output type, transistor output type and thyristor output type. R-relay; t-transistor
Relay output AC DC can be, the transistor common 5vdc and 24vdc output, thyristor is relatively rare, only special output models have.
Considering the CC-MCAR01 type selected, usually the relay output module has low price, wide voltage range (can be connected to the mains), large load capacity, small on-voltage drop, strong ability to withstand instantaneous voltage and overcurrent, but short life, long response time, slow action speed and so on.
Transistor output (can be divided into PNP, NPN type) has the advantage of fast on-off speed (pulse output, suitable for high frequency), generally about 0.2ms; Long life; The disadvantage is low working voltage (can not be connected to the mains); The load capacity is weak, about 300mA.
Thyristor output module is suitable for DC load, frequent switching, fast reaction speed, long life, low inductive power factor load, but the price is more expensive, the overload capacity is poor.
CC-MCAR01 has three input types. One is DC input, generally DC24V or DC12V, which is divided into source input and leakage input. The source input means that the input voltage is 0V and the COM terminal is 24V. The leakage input means that the input voltage is 24V and the COM terminal is 0V. The second is AC input, the input specification is AC220V; The third type of input is an analog input, and the specifications are 0-20MA current signal and 4-20MA current signal.
