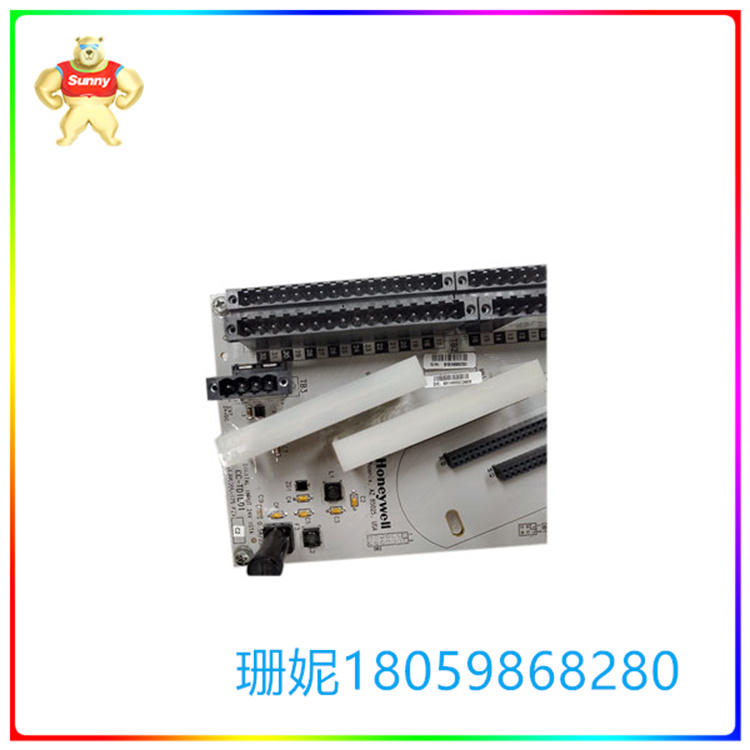

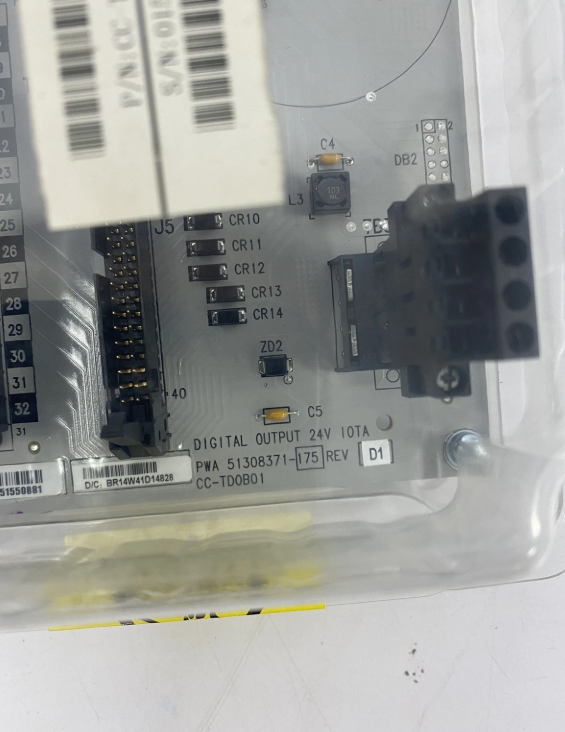

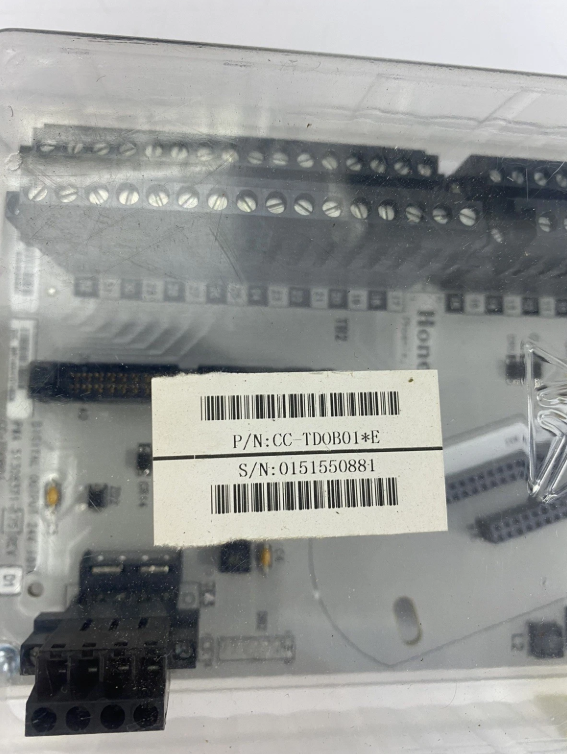

HONEYWELL CC-TDOB01 输出模块 对正在运行的梯形逻辑进行故障排除
HONEYWELL CC-TDOB01 输出模块 对正在运行的梯形逻辑进行故障排除
HONEYWELL CC-TDOB01 在对正在运行的梯形逻辑进行故障排除时,逻辑名称将是第一个可见的元素,因此考虑这些名称在代码和数据库中的出现是很重要的。如果数据库按字母顺序排列标签,请考虑用相同的字符说明每组相似的项目,以便它们保持可读,但仍在数据库中分组。 许多语言不支持标记名中的空格(空格字符),所以使用下划线、大小写混合以及其他策略来命名标记是一个很好的做法。 HONEYWELL CC-TDOB01 接线标签是一个短代码,将出现在控制柜中的物理电线上,以及连接两个部件的示意性“电线”线上。它也可能是对程序打印版本中某一行的引用。 贴在数据库标签上的正确电线标签可以帮助故障排除人员追踪从PLC终端到原始现场设备(开关、传感器或线圈)的电路,这些设备可能是故障系统中的可疑设备 HONEYWELL CC-TDOB01 标签描述可以提供关于标签的功能和使用的进一步信息,即使它不直接引用物理I/O终端。例如,定时器可以用于处理化学批处理,但是定时器的持续时间取决于来自其他输入的几个因素。描述是记录这些重要细节的有用方法,有助于将来的故障排除或流程改进升级。
传统的领域正经历着一场前所未有的变革,开始向网络化方向发展。控制系统的结构从最初的CCS(计算机集中控制系统),到第二代的DCS(分散控制系统),发展到现在流行的FCS(现场总线控制系统)。对诸如图像、语音信号等大数据量、高速率传输的要求,又催生了工业以太网与控制网络的结合。
HONEYWELL CC-TDOB01 输出模块 对正在运行的梯形逻辑进行故障排除
HONEYWELL CC-TDOB01 will be the first visible element when troubleshooting the running ladder logic, so it is important to consider the appearance of these names in the code and database. If the database arranges labels alphabetically, consider using the same characters to describe each group of similar items, so that they remain readable but are still grouped in the database. Many languages do not support spaces (space characters) in tag names, so it is a good practice to use underscores, mixed case and other strategies to name tags. HONEYWELL CC-TDOB01 wiring label is a short code, which will appear on the physical wires in the control cabinet and the schematic "wires" connecting the two components. It may also be a reference to a line in the printed version of the program. Correct wire labels attached to database labels can help troubleshooters to trace the circuits from PLC terminals to original field devices (switches, sensors or coils), which may be suspicious devices in the faulty system. The description of HONEYWELL CC-TDOB01 labels can provide further information about the functions and uses of the labels, even if it does not directly refer to physical I/O terminals. For example, a timer can be used to process chemical batches, but the duration of the timer depends on several factors from other inputs. Description is a useful way to record these important details, which is helpful for future troubleshooting or process improvement and upgrading.
HONEYWELL CC-TDOB01 输出模块
