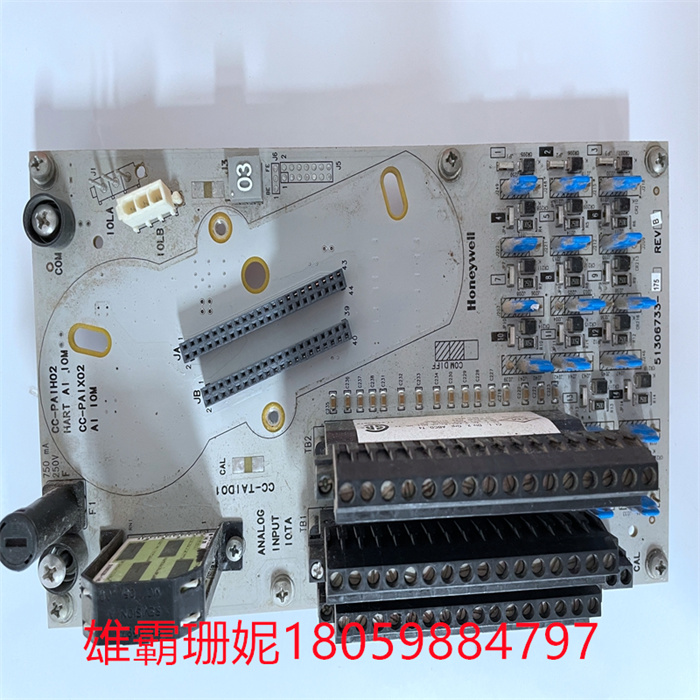

HONEYWELL CC-TAID01 输入输出模块

HONEYWELL CC-TAID01  输入输出模块

HONEYWELL CC-TAID01  输入输出模块

HONEYWELL CC-TAID01  输入输出模块根据现场输入信号的不同，可将输入模块分为开关量输入模块和模拟量输入模块。 开关量输入模块的作用是把各种开关信号变成CPU所需的TTL标准信号。按输入端电源类型，又可将其为直流输入模块和交流输入模块。输入信号经分压、限流、滤波后再通过光电耦合转换成TTL（5V）标准信号。 模拟量输入模块的作用是把现场连续变化的模拟量信号如温度、流量、电流、电压等转换成CPU能够处理的若干位数字信号。模拟量输入电路一般由运放变换、模转换（A/D）、光电隔离等组成。

HONEYWELL CC-TAID01  输入输出模块模块的种类：数字输入DI,数字输出DO,模拟量输入AI，模拟量输出AO。 数字的输入输出一般都是24V的. 模拟量的2类4种量,2类分别是电压型和电流型.电压型有0-10V和-10到10V.电流型主要有4-20MA,0-20MA.然后模块再通过A/D转换,把模拟量转换成+32767~-32768之间的数,然后再实行控制。 信号模板的作用是把各种过程i/o信号进行转换.把输入的各种信号转换成数字量,便于plc识别,处理和分析.把输出转换成模拟量给各种调节机构去执行,或将输出转换成2位式do量,去控制一些设备如启动停止、接通和断开等

HONEYWELL CC-TAID01  输入输出模块就是外部控制信号或现场检测信号给PLC CPU的处理模块，外部信号一般是按钮、接近开关、行程开关等。

HONEYWELL CC-TAID01  输入输出模块是PLC根据输入模块采入的信号和内部逻辑编程进行逻辑处理，处理后的结果过，开关量输出便由输出模块输出高低电平信号，驱动外部中间继电器、接触器、指示灯、电磁阀等元件，进而使外部设备进行相应的动作

HONEYWELL CC-TAID01  输入输出模块

HONEYWELL CC-TAID01 input and output module can be divided into switch input module and analog input module according to the different field input signals. The function of switch input module is to turn all kinds of switch signals into TTL standard signals needed by CPU. According to the type of input power supply, it can be divided into DC input module and AC input module. After voltage division, current limiting and filtering, the input signal is converted into TTL(5V) standard signal through photoelectric coupling. The function of analog input module is to convert analog signals such as temperature, flow, current, voltage, etc., which are continuously changing on site, into several digital signals that can be processed by CPU. Analog input circuit is generally composed of operational amplifier conversion, analog-to-digital conversion (A/D) and photoelectric isolation.

HONEYWELL CC-TAID01 input and output module types: digital input DI, digital output DO, analog input AI and analog output AO. Generally, the digital input and output are 24V. There are two types and four quantities of analog, namely voltage type and current type. The voltage type includes 0-10V and -10 to 10V. The current type mainly includes 4-20mA and 0-20mA. Then, the analog is converted into a number between+32767 and-32768 through A/D conversion, and then the control is implemented. The function of signal template is to convert all kinds of process i/o signals. The input signals are converted into digital quantities, which are convenient for plc to identify, process and analyze. The output is converted into analog quantities for various regulating mechanisms to implement, or the output is converted into 2-bit do quantities to control some equipment such as start-stop, turn-on and turn-off.

HONEYWELL CC-TAID01 input and output module is the processing module for external control signals or field detection signals to PLC CPU. External signals are generally buttons, proximity switches, travel switches, etc.

HONEYWELL CC-TAID01 I/O module is the logic processing of PLC according to the signals taken in by the input module and internal logic programming. After the processed results are passed, the output module outputs high and low level signals to drive external intermediate relays, contactors, indicator lights, solenoid valves and other components, so as to make external devices perform corresponding actions.

HONEYWELL CC-TAID01  输入输出模块
