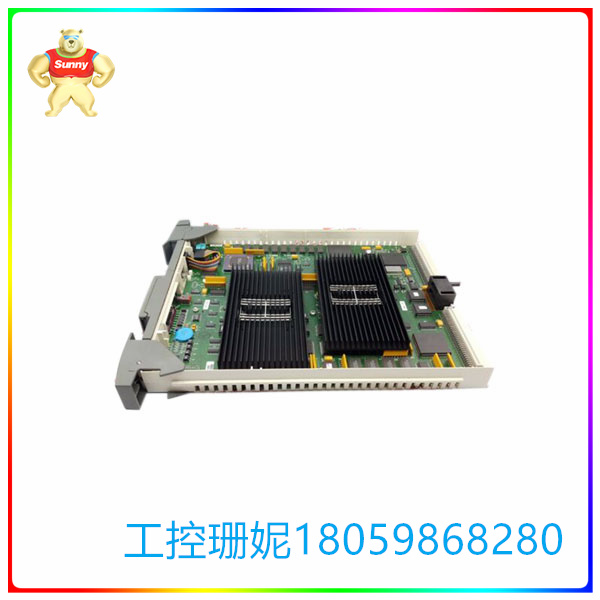

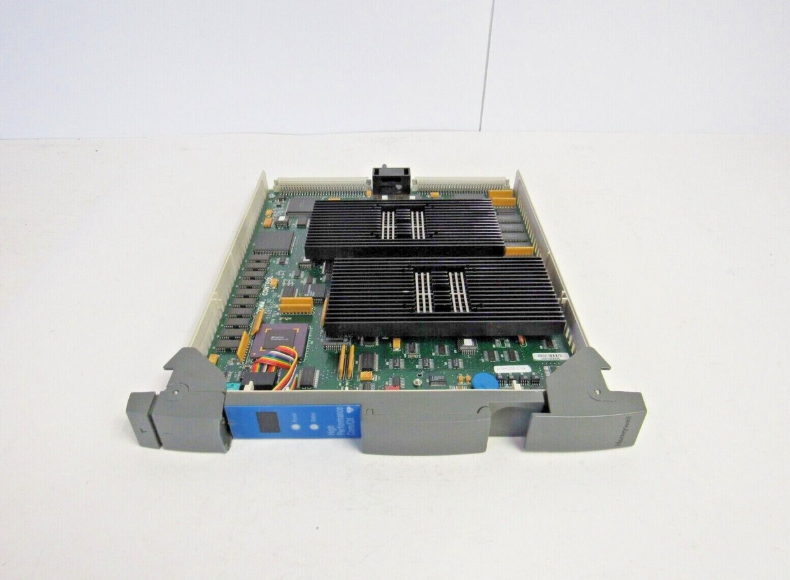

51401635-150 高性能通信控制器 通信与控制处理器

☆型号：51401635-150 高性能通信控制器 通信与控制处理器

【产品详情】

品牌 ： Honeywell

产品编号: 51401635-150

产品类型 ： 通信与控制处理器

装运重量 ： 5 Kg

1、TDC2000当时在控制系统领域产生了许多重要成果，如冗余控制器、冗余控制网络（DH-Data Hiway）、人机界面等。

根据分布原理，全TDC2000的基本功能分布特点如下：控制网络采用单层冗余结构;操作站负责操作和数据存储;不同的控制器实现不同的过程控制等。这种基本功能分布仍然被DCS的一些控制制造商使用。

2、作为最典型的DCS系统，TDC3000进一步体现了分布式控制的概念，具有以下主要特点：

为满足大规模生产的需要，采用两层控制网络架构，每个LCN可连接10个UCN，每个UCN可连接32对冗余控制器。64 个 LCN 也可以通过 NG 链接。

三层控制平台

1）PMX实现最基本的环路调节、逻辑联动、顺序控制和复杂环路控制。

2）AM实现先进控制 3）通过VAX

优化控制

，引入SM紧急停机系统，实现安全生产保护。

TDC3000是目前最经典的DCS系统之一，满足大规模安全生产、复杂控制和高级控制应用。广泛应用于工业生产控制，特别是在许多大型石化联合生产厂。

☆型号：51401635-150 高性能通信控制器 通信与控制处理器

【英文介绍】

Brand: Honeywell

Product Number: 51401635-150

Product Type: Communication and Control processor

Shipping weight: 5 Kg

1. TDC2000 produced many important achievements in the field of control systems at that time, such as redundant controllers, redundant control networks (DH-Data Hiway), human-machine interface and so on.

According to the distribution principle, the basic function distribution characteristics of all TDC2000 are as follows: the control network adopts single-layer redundancy structure; The operation station is responsible for operation and data storage; Different controllers realize different process control and so on. This basic function distribution is still used by some control manufacturers of DCS.

2, as the most typical DCS system, TDC3000 further reflects the concept of distributed control, with the following main features:

In order to meet the needs of large-scale production, a two-layer control network architecture is used, each LCN can be connected to 10 UCNs, and each UCN can be connected to 32 pairs of redundant controllers. 64 LCN can also be linked via NG.

Three-layer control platform

1) PMX implements the most basic loop regulation, logical linkage, sequence control and complex loop control.

2) AM for advanced control and 3) via VAX

Optimal control

SM emergency shutdown system is introduced to achieve safe production protection.

The TDC3000 is one of the most classic DCS systems available to meet large-scale safety production, complex control and advanced control applications. It is widely used in industrial production control, especially in many large petrochemical combined production plants.
