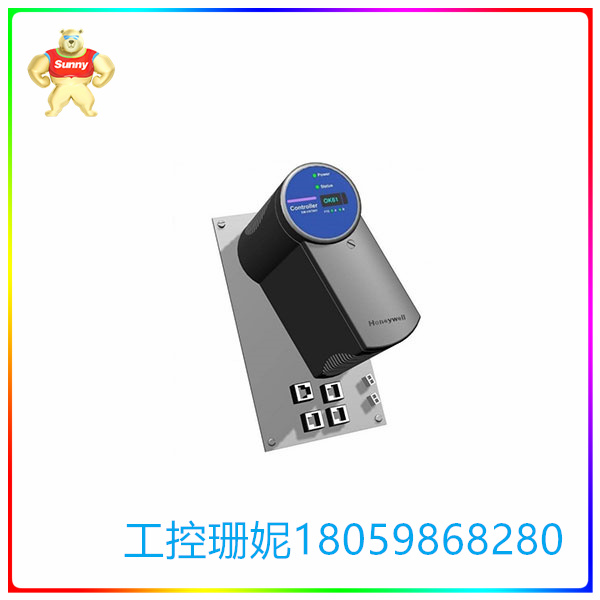

8C-PDILA1 单冗余配置 使用控制硬件的功能

☆型号：8C-PDILA1 单冗余配置 使用控制硬件的功能

【产品详情】

系列8继承了系列c的创新样式。这种样式包括便于在系统环境中有效使用控制硬件的功能。这些功能包括:

•垂直安装允许更有效的布线，因为大多数现场布线应用需要从系统柜的顶部或底部进入。

•“信息圈”允许快速的视觉提示，将维护技术人员的眼睛吸引到重要的状态信息。

•“倾斜”设计允许在机柜外壳内有效的热管理。由于系列8允许显着增加机柜密度，因此有效的热管理系统对于高系统至关重要

可用性。

•输入和输出电路免受短路保护，以减轻在线熔断的需要，降低安装和维护成本

系列8 iota将多种功能整合到单个设备中:

•单冗余配置

•过程信号的车载终止

•车载信号调节

•板载连接到适当的网络(FTE, I/O LINK)

•无需外部编组的现场配电

•IOM插入IOTA并从IOTA接收电源

•IOTA通过电缆从头板接收电源。

系列8 I/O大小

在几乎所有的配置中，C300控制器和系列8 I/O提供了有用的、可维护的过程设备连接，比传统的基于机架的系统占用更小的空间。安装系列8 I/O模块有助于节省总体安装成本。

☆型号：8C-PDILA1 单冗余配置 使用控制硬件的功能

【英文介绍】

Series 8 inherits the innovative style of Series c. This style includes features that facilitate the effective use of control hardware in a system environment. These features include:

Vertical mounting allows for more efficient cabling, as most field cabling applications require access from the top or bottom of the system cabinet.

The "Infosphere" allows for quick visual cues that draw the eye of maintenance technicians to important status information.

• The "tilt" design allows for effective thermal management within the cabinet housing. Since Series 8 allows for a significant increase in cabinet density, an effective thermal management system is essential for high systems

Availability.

• Input and output circuits are protected from short circuits to mitigate the need for in-line fuses and reduce installation and maintenance costs

Series 8 iota combines multiple functions into a single device:

• Single redundancy configuration

• On-board termination of process signals

• On-board signal adjustment

• Onboard connection to the appropriate network (FTE, I/O LINK)

• Onsite power distribution without external marshalling

• The IOM plugs into IOTA and receives power from IOTA

•IOTA receives power through a cable from the head board.

Series 8 I/O size

In almost all configurations, the C300 controller and Series 8 I/O provide useful, maintainable process equipment connectivity that takes up less space than traditional rack-based systems. Installing Series 8 I/O modules helps save overall installation costs.
