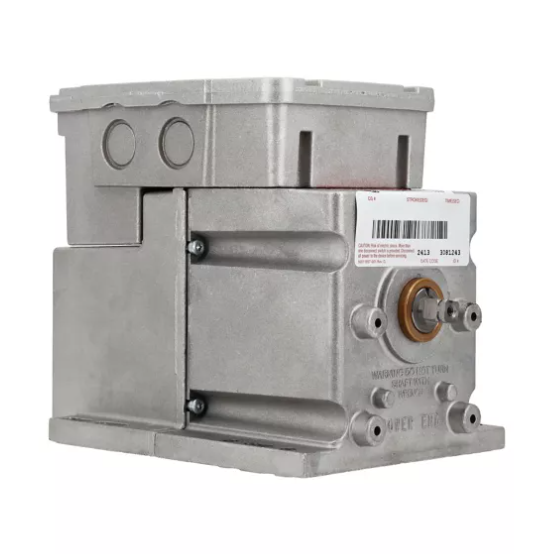

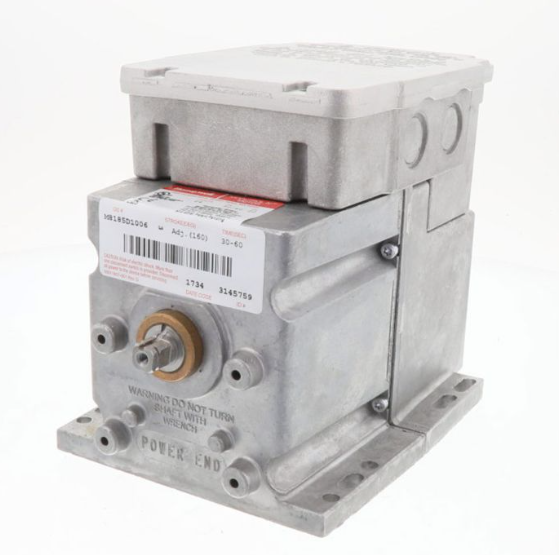

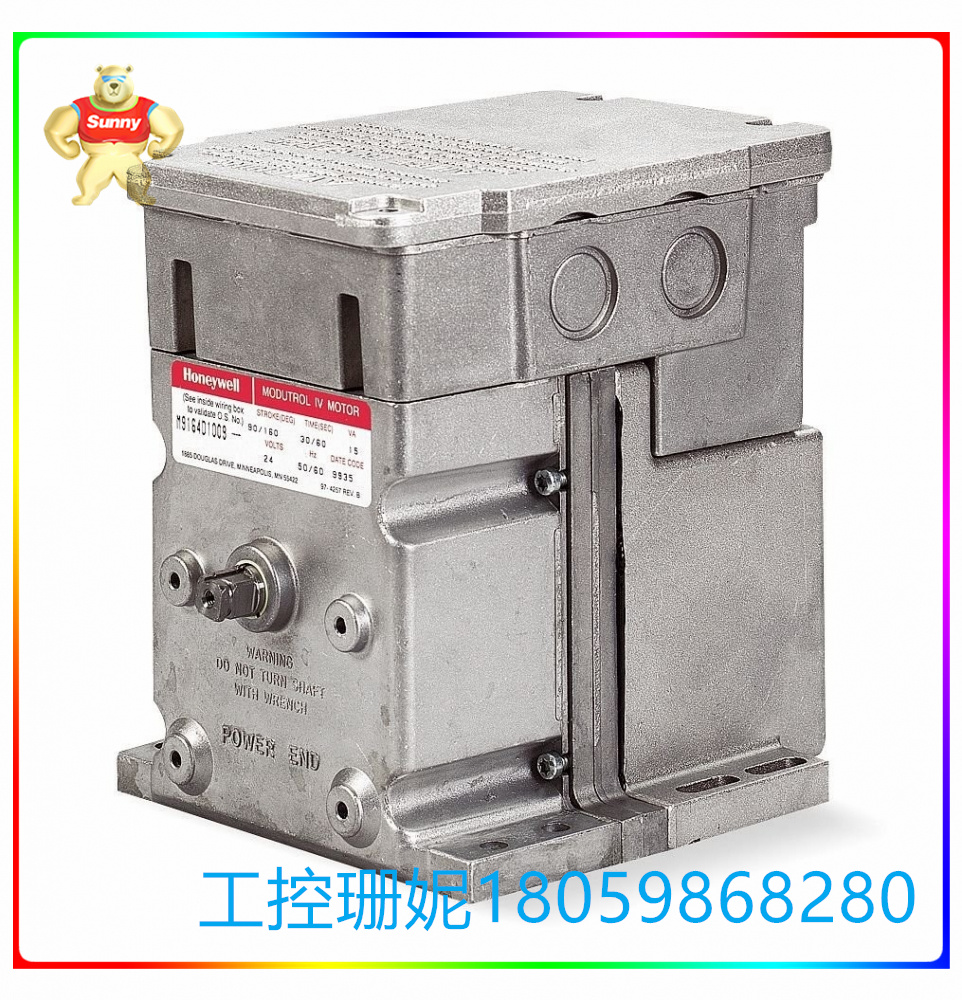

M8185D1006 电机 复位脚踏式执行器

☆型号：M8185D1006  电机 复位脚踏式执行器

【产品详情】

描述

–

41 系列和 81 系列 Modutrol IV 电机是 2 位（每个电机控制的线路电压和低电压）弹簧复位电机。它们用于在电源故障或中断时需要或希望受控元件返回起始位置的应用中操作阻尼器或阀门。

特征

在整个电压范围内保持固定扭矩。

当电源中断时，一体式弹簧复位将电机返回正常位置。

如果电机安装在直立位置，一体式接线盒可提供 NEMA 3 天气保护。

电机和电路在 24 Vac 下工作。

快速连接端子是标准配置--螺丝端子适配器可用。

提供用于匹配旧电机轴高度的适配器支架。

电机具有现场可调行程（90 至 160 度）。

电机设计用于常开或常闭阀门和阻尼器。

集成式辅助开关可在工厂安装，也可在现场添加。

电机可以从动力端或辅助端轴操作阀门连杆，用于常闭或常开阀门应用。

所有型号均具有双轴（两端开槽和攻丝）。

规格

应用类型：电动

故障安全模式：弹簧复位

控制信号：两位，SPST

反馈：否

电机轴：双端轴

行程：可调;90 至 160 度，不对称

额定扭矩 （lb-in.）： 60 lb-in

提供外部辅助开关：是

频率：50 Hz、60 Hz

驱动功耗 （VA）： 20 VA

电气连接：快速连接端子

轴尺寸（英寸）： .375 in

轴形状：方形

安装方式：底脚安装

尺寸： 6 7/16 in.高 x 5 1/2 英寸宽 x 8 3/4 英寸深

温度范围：-40 至 150F

轴上的自重载荷（两端）（lb）：200 lbs

轴上的自重载荷（两个轴上的组合）（lb）：300 lbs

标称定时（秒）：30 -60 秒

轴旋转（控制信号增加时）：顺时针（从电源端看）（常闭）

辅助开关额定值 AFL - 120 Vac：7.2A

辅助开关额定值 AFL - 240 Vac：3.6A

辅助开关额定值 ALR- 120 Vac：43.2A

辅助开关额定值 ALR- 240 Vac：21.6A

☆型号：M8185D1006  电机 复位脚踏式执行器

【英文介绍】

Description

-

Series 41 and 81 Modutrol IV motors are 2-position (line voltage and low voltage controlled by each motor) spring return motors. They are used to operate dampers or valves in applications that require or want controlled elements to return to the starting position in the event of a power failure or interruption.

trait

Maintain a fixed torque throughout the voltage range.

When the power supply is interrupted, the integrated spring reset returns the motor to its normal position.

If the motor is installed in an upright position, the integrated junction box provides NEMA 3 weather protection.

Motors and circuits operate at 24 Vac.

Quick connection terminals are standard - screw terminal adapters are available.

Adapter brackets are available to match the height of the old motor shaft.

The motor has field adjustable travel (90 to 160 degrees).

The motor is designed for normally open or normally closed valves and dampers.

Integrated auxiliary switches can be installed in the factory or added on site.

The motor can operate the valve link from the power end or auxiliary end shaft for normally closed or normally open valve applications.

All models have dual shafts (slotted and tapped at both ends).

specification

Application type: Electric

Fail-safe mode: spring return

Control signal: two digits, SPST

Feedback: No

Motor shaft: double-ended shaft

Travel: adjustable; 90 to 160 degrees, asymmetrical

Rated torque (lb-in.) : 60 lb-in

External auxiliary switch: Yes

Frequency: 50 Hz, 60 Hz

Drive power consumption (VA) : 20 VA

Electrical connection: Quickly connect terminals

Shaft size (in) :.375 in

Shaft shape: square

Installation method: Foot installation

Dimensions: 6 7/16 in. Height x 5 1/2 inches wide x 8 3/4 inches deep

Temperature range: -40 to 150F

Dead weight load on shaft (both ends) (lb) : 200 lbs

Dead weight load on the shaft (combined on both shafts) (lb) : 300 lbs

Nominal timing (seconds) : 30-60 seconds

Axis rotation (when the control signal increases) : clockwise (from the power end) (normally closed)

Auxiliary switch rating AFL-120 Vac: 7.2A

Auxiliary switch rating AFL-240 Vac: 3.6A

Auxiliary switch rating ALR-120 Vac: 43.2A

Auxiliary switch rating ALR-240 Vac: 21.6A
