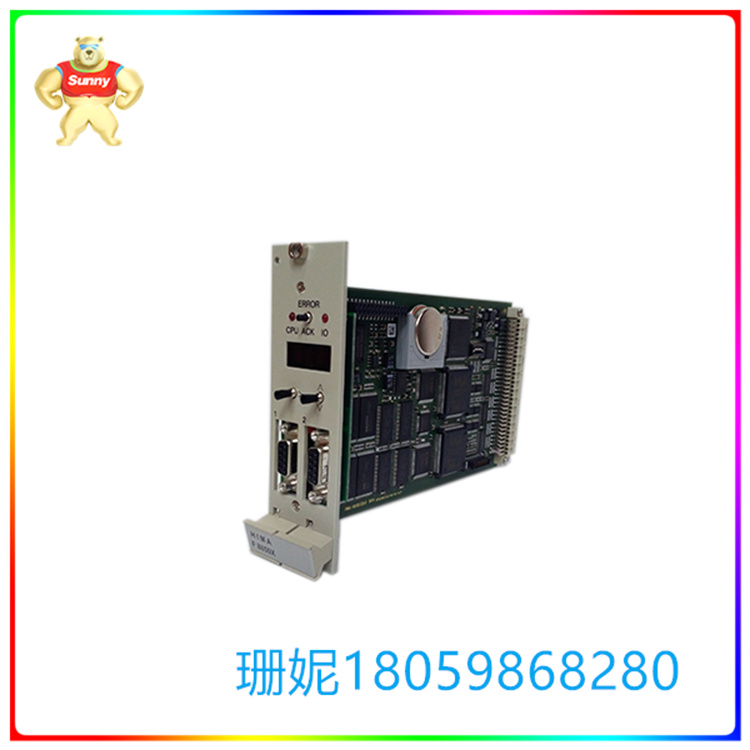

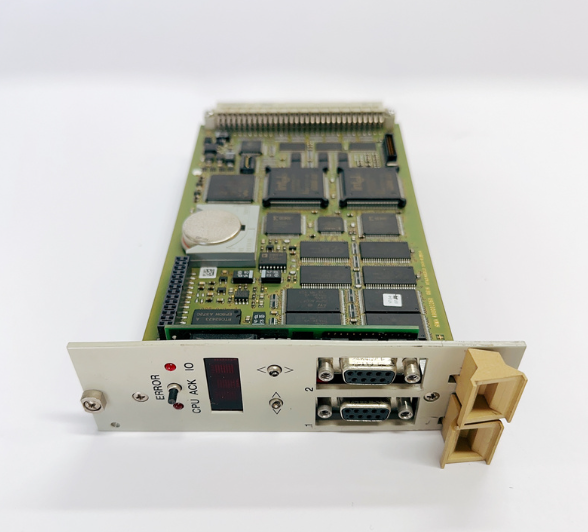

F8650X 微处理器 HIMA
【产品详情】
微处理器
INTEL 386EX, 32位
时钟频率
25兆赫
每微处理器内存
操作系统
Flash-EPROM 1mb
用户程序
闪存- eprom 1mb *
数据
SRAM1MB *
*使用程度取决于操作系统版本
接口
两个串行接口rs485电气隔离
诊断显示
四位数矩阵显示可选择的信息
故障停机
安全相关看门狗,输出24v;
负载可达500ma,防短路
建设
两个欧洲标准pcb,
一个PCB用于诊断显示
空间需求
8日苏
操作数据
5 v12
对于串行接口只有公交车站号。1 ~ 31可设置。
在乙太网路中,公车站编号。取值范围为1 ~ 99。因此开关
除了S1-1/2/3/4/5开关外,还必须设置S1-6/7。
网络中通信伙伴的数量仍然限制在64个。
这个加强了的公共汽车站的设置。只能从操作系统BS41q/51q
中央模块V7.0-8(05.31)版本。
F8650X 微处理器 HIMA
【英文介绍】
Microprocessors
INTEL 386EX, 32 bits
Clock frequency
25 MHz
Memory per microprocessor
Operating System
Flash-EPROM 1 MB
User program
Flash-EPROM 1 MB *
Data
SRAM1MB*
* Degree of utilization depending on operating system version
Interfaces
Two serial interfaces RS 485 with electric isolation

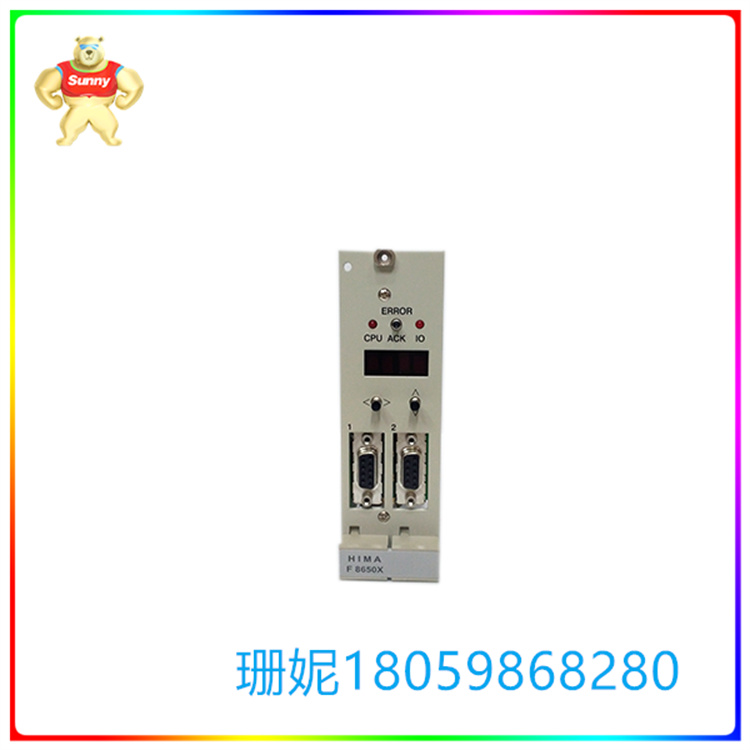

Diagnostic display
Four digit matrix display with selectable information
Shutdown on fault
Safety-related watchdog with output 24 V,
loadable up to 500 mA, short-circuit proof
Construction

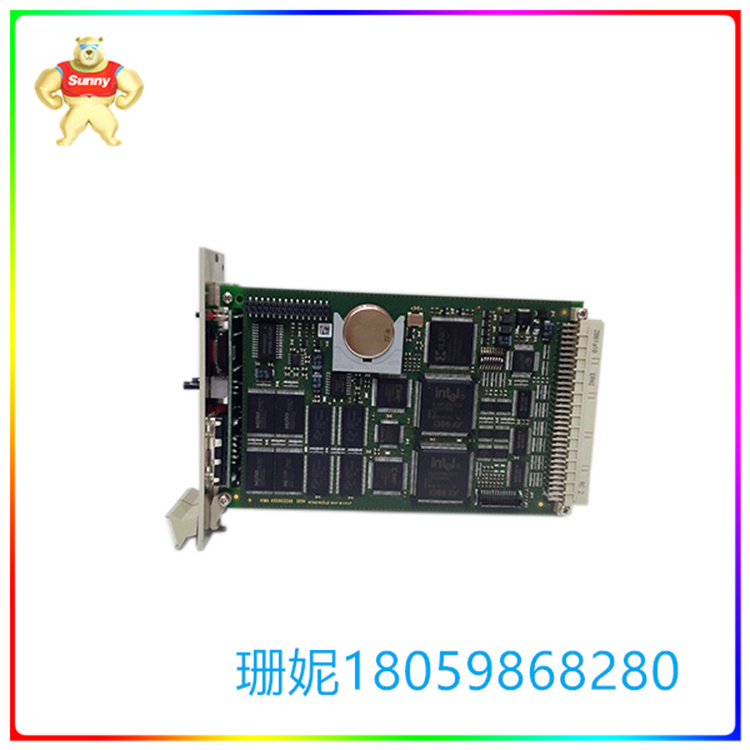

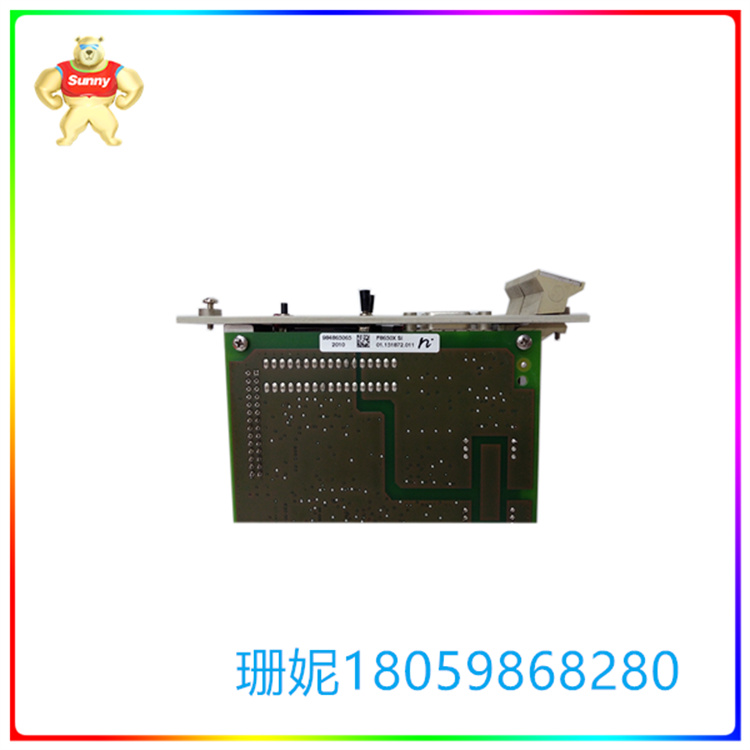

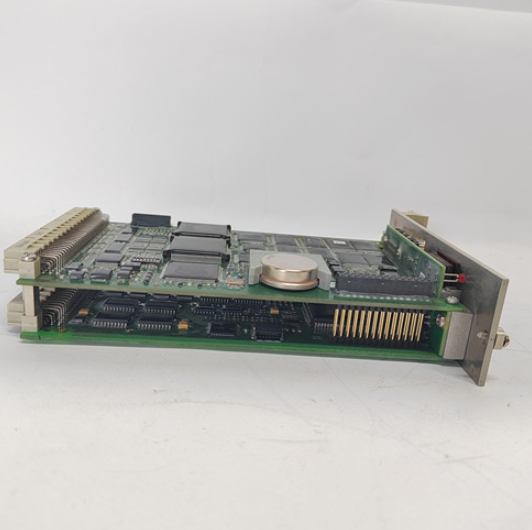

Two European standard PCBs,
one PCB for the diagnostic display
Space requirement
8 SU
Operating data
5V12 A
For the serial interface only the bus station no. 1-31 can be set.
Within an Ethernet network the bus station no. can be set from 1 to 99. Therefore the switches
S1-6/7 must be set in addition to the switches S1-1/2/3/4/5.
The number of the communication partners within a network is still limited to 64.
This enhanced setting of the bus station no. is only possible from operating system BS41q/51q
V7.0-8 (05.31) of the central module.
