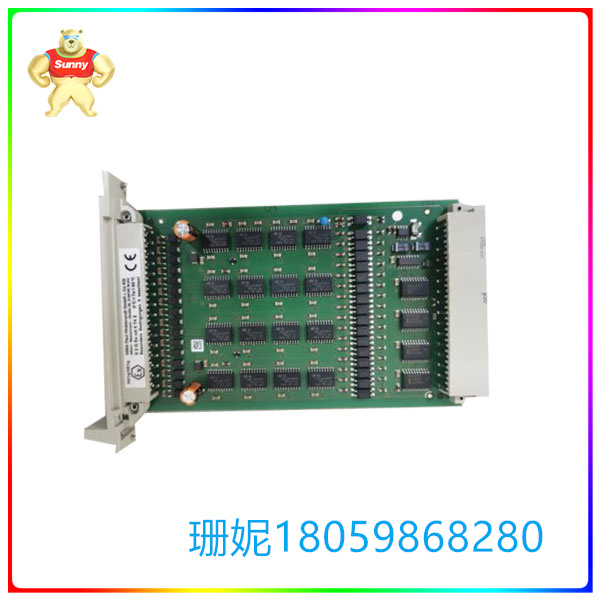

HIMA F3322 中央单元即可满足安全等级

【产品详情】

Hima H41q/H51q采用的是HI-Quad 安全技术的成熟理念是提高生产力的关键。

Hima H41q/H51q-HI-Quad 安全技术的成熟理念概述：

• 在中央单元（CU）上设置了双CPU；

• 一个中央单元即可满足安全等级 AK6/SIL3

• CU之间的通讯由高速 双口RAM（ DPR）来完成；

• 2oo4/QMR 结构 (Quadruple Modular Redundant)；

• 最大的实用性和冗余容错结构（全冗余、两级容错）

hima H41/51q-MS系统AK6\SIL3 & 较高的实用性

• 系统的基本扫描周期达5ms;

• 基于HiQuad技术的CU结构，即使是单CU、单I/O 模件，系统仍能达到AK6\SIL3 的安全等级要求。

hima H41/51q-HS系统AK6/SIL3 & 高实用性

 H41q-51q-HS系统AK6-sil3高实用性

hima H41/51q-HRS系统AK6/SIL3 & 最高的实用性系统特点:

 无故障修复时间限制；

 实用性99.99%以上；

 平均无故障时间200年以上；

 系统故障诊断率99.99%以上，HIMA特有的冗余、容错和故障分离技术，使系统对硬件和软件诊断的准确性、及时性和灵敏度得到极大改善，使误报率和漏报率大幅降低。

H41 51q-HRS系统最高的实用性

hima H41/51q 特点

>> 冗余配置的可选性使得系统设计具有极大的灵活性，以满足不同需求。

>> 物理上完全分离的冗余结构，消除了公共部分故障可能带来的致命风险。

>> 并列运行的冗余方式避免了卡件切换时可能引起的扰动，实现了真正意义的“热插拔”。

>> 低密度的i/o模件使得卡件故障的风险进一步分散。

>> 直观的编程、多种集成和通讯方式选择。

>> 1997年开始在全球使用，并且在技术上不断创新。至今“四重化”的结构模式几乎被所有新开发的esd系统所沿用。

Hima H41q/H51q可以为您实现更大的效率

Hima-H41q-H51q可以为您实现更大的效率

• 当对系统的应用程序进行修改时，可以在线下装；

• H51q/H41q 系列不需要全部逻辑功能的重新测试；

• 仅仅测试修改部分即可。

HIMA F3322 中央单元即可满足安全等级

【英文介绍】

Hima H41q/H51q's proven philosophy of HI-Quad safety technology is the key to increased productivity.

Hima H41q/H51q-HI-Quad Safety Technology Mature concept Overview:

• Dual CPU on the central unit (CU);

• One central unit meets safety level AK6/SIL3

Communication between CU's is accomplished by high-speed dual-port RAM (DPR);

• 2oo4/QMR (Quadruple Modular Redundant);

• Maximum utility and redundant fault-tolerant structure (full redundancy, two-stage fault-tolerant)

hima H41/51q-MS system AK6\SIL3 & High utility

• The basic scanning cycle of the system is up to 5ms;

• Based on the CU structure of HiQuad technology, even with single CU and single I/O modules, the system can still meet the safety level requirements of AK6\SIL3.

hima H41/51q-HS System AK6/SIL3 & High utility

The H41q-51q-HS system AK6-sil3 is highly functional

hima H41/51q-HRS System AK6/SIL3 & Highest practical system features:

 no repair time limit;

 more than 99.99% practical;

 the average trouble-free time is more than 200 years;

 With a system fault diagnosis rate of more than 99.99%, HIMA's unique redundancy, fault tolerance and fault separation technology greatly improves the accuracy, timeliness and sensitivity of hardware and software diagnosis, and significantly reduces the false positive rate and false negative rate.

H41 51q-HRS system for maximum utility

Features of hima H41/51q

>> The optional configuration of redundancy allows great flexibility in system design to meet different needs.

>> The physically completely separated redundant structure eliminates the potentially fatal risk of failure of a common part.

>> The redundant mode of parallel operation avoids the disturbance that may be caused when the card is switched, and realizes the true meaning of "hot swap".

>> Low-density i/o modules further spread the risk of card failure.

>> Intuitive programming, multiple integration and communication options.

>> It has been used worldwide since 1997 and is constantly innovating in technology. So far, the "quadruple" structural model has been used by almost all newly developed esd systems.

Hima H41q/H51q can achieve even greater efficiency for you

The Hima-H41q-H51q can achieve even greater efficiency for you

• When the system application program is modified, it can be installed online;

H51q/H41q series does not require retesting of all logic functions;

• Just test the modified part.
