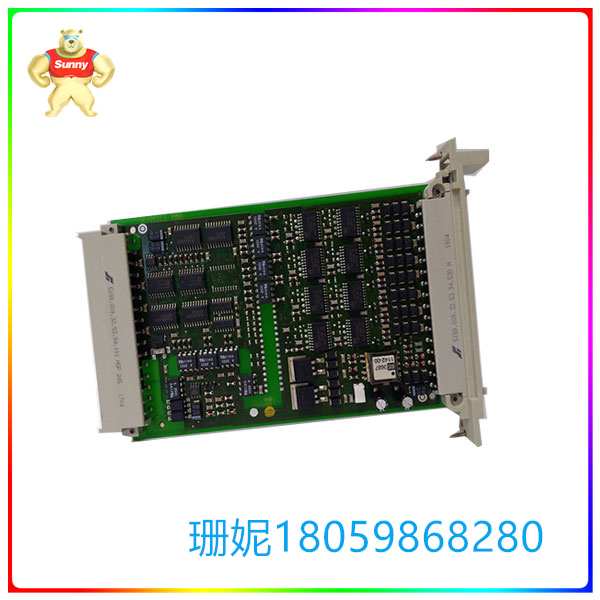

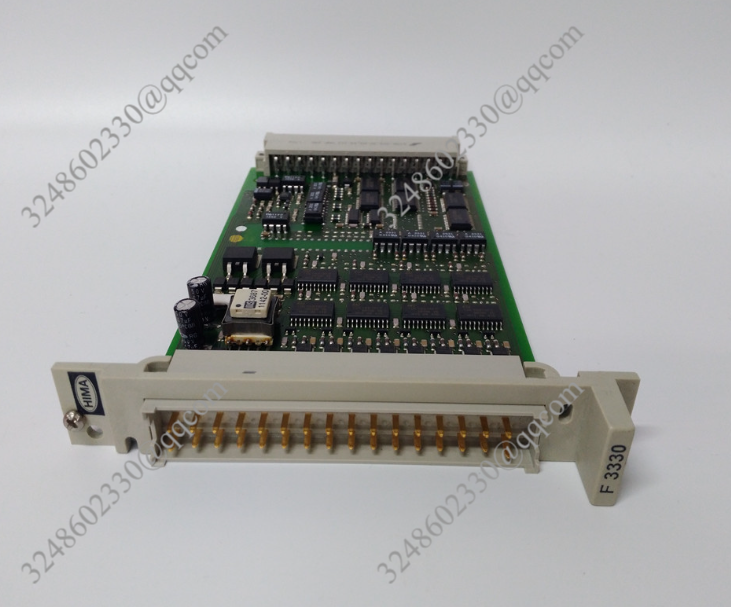

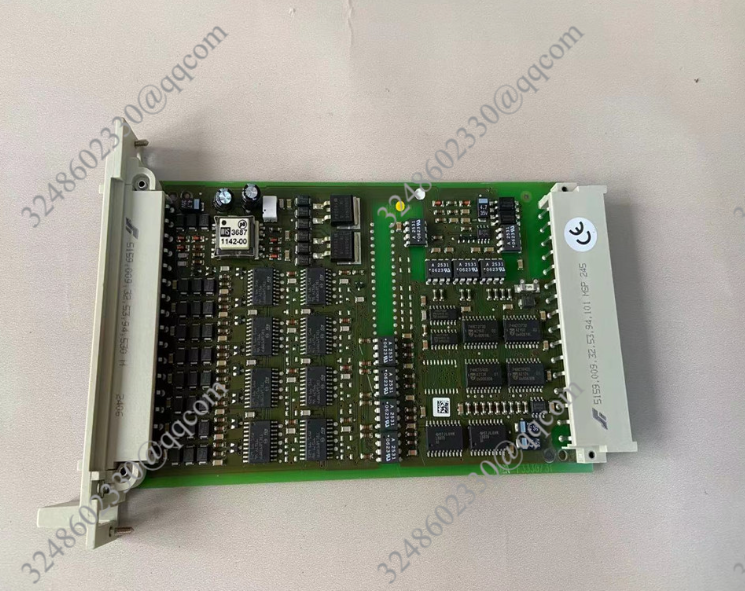

F3330 HIMA 8路24DV输出模块
【产品详情】
产品名称:F3330 HIMA 8路24DV输出模块
产品型号:F3330
数量:库存
保修:我们提供F3330的保修服务
航运港口:福建
产品编号: F 3330
产品类型 : 8折输出模块,安全相关
阻性负载或感性负载高达 500 mA (12 W),灯连接高达 4 W,带集成安全关断功能,带安全隔离功能,无输出信号,电源要求等级 AK 1 ...6
输出 500 mA,k 短路保护
最大内部压降 : 2 mA 负载时为 500 V
允许的线路电阻(输入+输出):最大 11 欧姆
欠压跳闸:= 16 V
名额要求 : 4 TE
工作数据 : 5 V DC = 110 mA, 24 V DC = 180 mA 在附加负载中
装运重量 : 5 公斤
F3330 5 V DC 电源不必单独接线,因为它是
准备作为子机架的一部分安装。
CPU 需要 5 V 直流电源、接口控制以及
I/O 模块的数据寄存器。F3330 它由时钟 24 V DC/ 产生
带有 F 5A 标识的 7130 V DC 电源模块。
电源模块的 5 V DC 输出电压(用于 CPU、I/O、
和接口)在中央单元上监控,检查欠伏特
GE 或失败。
F3330 如果电源模块出现故障,操作系统将提供
用户的程序通过具有此信息的系统变量。
如果 5 V DC 系统电源发生故障,硬件时钟和 sRAM 上的
中央模块由锂电池缓冲,锂电池也位于CEN上
特拉尔模块。
F3330 HIMA 8路24DV输出模块
【英文介绍】
Product name: F3330 HIMA 8-way 24DV output module
Product model: F3330
Quantity: Stock
Warranty: We offer warranty service for the F3330
Shipping port: Fujian
Product number: F 3330
Product type: 20% fold output module, safety related
Resistive or inductive loads up to 500 mA (12 W), lamp connections up to 4 W, with integrated safety turn-off function, with safety isolation function, no output signal, power requirement level AK 1... 6
Output 500 mA, k short circuit protection
Maximum internal pressure drop: 500 V at 2 mA load
Allowable line resistance (input + output) : Maximum 11 ohms
Undervoltage trip: = 16 V
Quota requirements: 4 TE
Operating data: 5 V DC = 110 mA, 24 V DC = 180 mA in additional load
Shipping weight: 5 kg
The F3330 5 V DC power supply does not have to be wired separately as it is
Ready to be installed as part of the subrack.
The CPU requires 5 V DC power supply, interface control, and
Data register of the I/O module. F3330 It is generated by clock 24 V DC/
7130 V DC power module with F5A label.
5 V DC output voltage of the power module (for CPU, I/O,
And interface) monitor on the central unit to check for undervolt
GE may fail.
F3330 If the power module is faulty, the OS provides
The user's program passes a system variable with this information.
If the 5 V DC system power supply fails, the hardware clock and sRAM are on
The central module is buffered by a lithium battery, which is also located on the CEN
The Tral module.
F3330 HIMA 8路24DV输出模块
