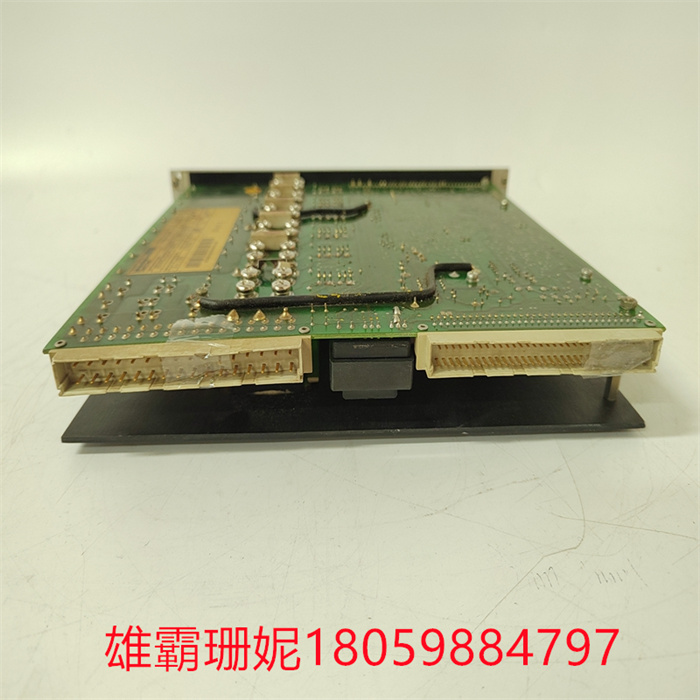

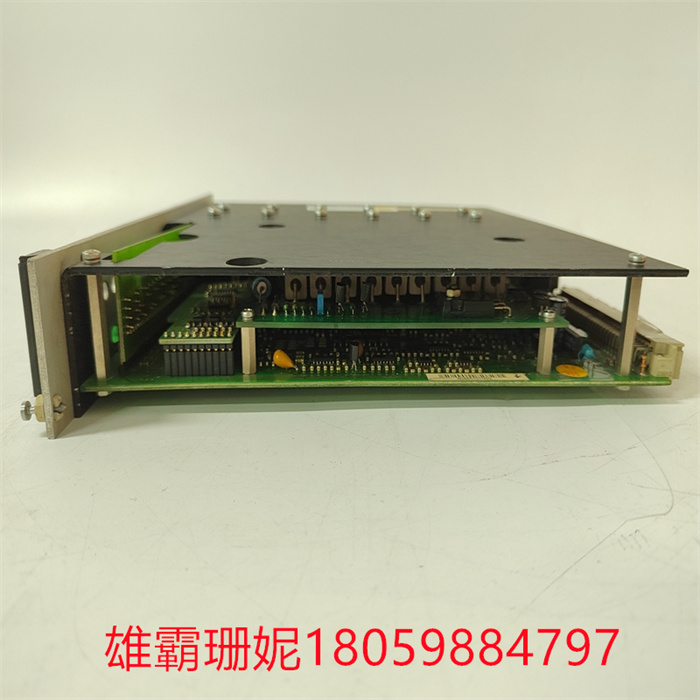

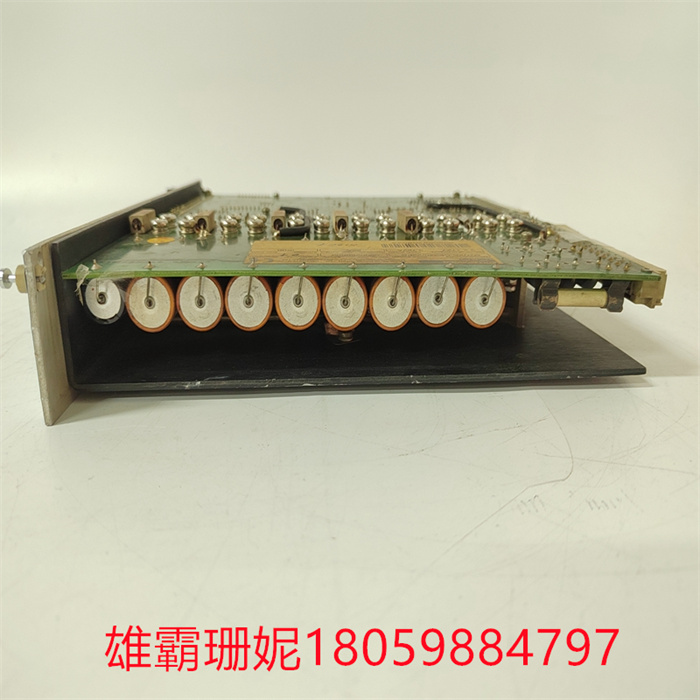

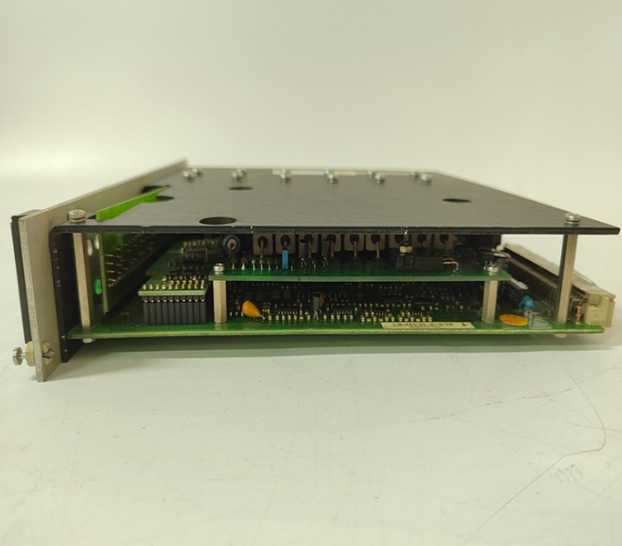

KOLLMORGEN 60WKS-CE240 22PB 伺服系统放大器

KOLLMORGEN60WKS-CE240 22PB 伺服系统放大器【产品详情】1)新2)保修期:12个月!3)包装:原包装与纸箱。4)交货时间:付款后3天内发货5)所有货物将在发货前进行测试。这60WKS-CE240/12PB是高质量的伺服系统放大器为...生产驾驶这无刷同步伺服电机属于施虐受虐狂系列。该型号作为独立组件安装在机器或电气设备内部。该型号通过隔离变压器与三相伺服放大器一起使用。该型

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

KOLLMORGEN 60WKS-CE240 22PB 伺服系统放大器

60WKS-CE240 22PB(6).jpg



【产品详情】


1)新


2)保修期:12个月!


3)包装:原包装与纸箱。


4)交货时间:付款后3天内发货


5)所有货物将在发货前进行测试。

这60WKS-CE240/12PB是高质量的伺服系统放大器为...生产驾驶这无刷同步伺服电机属于施虐受虐狂系列。该型号作为独立组件安装在机器或电气设备内部。该型号通过隔离变压器与三相伺服放大器一起使用。该型号在封闭的钢制开关设备柜中操作。伺服放大器在240 V电压下工作,最适合运行具有梯形整流和RLG/转速反馈的伺服电机。电源部分实现为脉宽调制晶体管级(三相)。梯形输出电流和电机速度通过PI控制器控制。该型号带有一个定制PCB,其中包含用户可以更改的所有调整和参数。


这60WKS-CE240/12PB还配备了平滑电容器。伺服放大器还配有镇流器开关和限位开关输入。由于其辅助电源,该设备可以从DC链路电压产生辅助电压。该设备还包含用于所有重要操作状态的led。备用继电器也配有用于故障信号的隔离触点。该模型还包含转子位置传感器的输入。由于其PI/速度/电流控制器,伺服放大器也可用于速度和电流控制。该装置包含DC链路和辅助电源的保险丝。该设备还包含电机连接端子的接地故障保护。除了功率输出晶体管的温度监控之外,该器件还具有欠压和过压保护功能。使用该型号时,最小电机电感为1.2 mH。


规范的接线及走线,弱信号要尽量与强电信号分开走


60WKS-CE240 22PB模拟量信号线要采用单端接地方式,通信线要采用双端接地方式


热电偶要采用绝缘式的传感器


PLC的供电电源尽量采用隔离变压器


防止直流电源的负端与交流电的零线或大地有任何的接触


60WKS-CE240 22PB所有直流电源要注意要共负端,不共可能会造成采样不稳定,因为没有共同的参考地


231-0HC或235-0KD模块容易采共模电压的干扰,把信号的输入的负端与24VDC的负端短接,可以有效地防止这种干扰


通信线要注意终端电阻的使用


CPU的通信口为非隔离口,与其它设备(变频器)等通信时好加光电隔离器

KOLLMORGEN 60WKS-CE240 22PB 伺服系统放大器

60WKS-CE240 22PB(4).jpg

This 60WKS-CE240/12PB is a high quality servo amplifier for... Production drive This brushless synchronous servo motor belongs to the sadomasochist series. This model is installed as a stand-alone component inside the machine or electrical equipment. This model is used with a three-phase servo amplifier via an isolation transformer. This model operates in a closed steel switchgear cabinet. Servo amplifiers operate at 240 V and are best suited to run servo motors with ladder rectification and RLG/ speed feedback. The power supply part is implemented as a PWM transistor level (three-phase). The trapezoidal output current and motor speed are controlled by PI controller. This model comes with a custom PCB that contains all the adjustments and parameters that the user can change.


The 60WKS-CE240/12PB is also equipped with a smoothing capacitor. The servo amplifier also has ballast switch and limit switch inputs. Due to its auxiliary power supply, the device can generate an auxiliary voltage from the DC link voltage. The device also contains leds for all important operating states. Backup relays are also equipped with isolating contacts for fault signals. The model also contains input from the rotor position sensor. Thanks to its PI/ speed/current controller, servo amplifiers can also be used for speed and current control. The device contains a DC link and a fuse for the auxiliary power supply. The device also includes ground fault protection for the motor connection terminals. In addition to temperature monitoring of the power output transistor, the device also has undervoltage and overvoltage protection. When using this model, the minimum motor inductance is 1.2 mH.


Standard wiring and wiring, weak signals should be separated from strong signals as far as possible


The 60WKS-CE240 22PB analog signal cable must be grounded with one end, and the communication cable must be grounded with two ends


Thermocouples should use insulated sensors


PLC power supply should be isolated transformer as far as possible


Prevent any contact between the negative end of the DC power supply and the neutral line or ground of the AC power supply


60WKS-CE240 22PB All DC power supplies should be careful to have a common negative end, otherwise it may cause sampling instability, because there is no common reference ground


231-0HC or 235-0KD module is easy to take the interference of common mode voltage, and the negative end of the signal input and the negative end of 24VDC can be shorted to effectively prevent this interference


The communication line should pay attention to the use of terminal resistance


The communication port of the CPU is a non-isolated port, and it is better to add photoelectric isolators when communicating with other devices (frequency converters)
