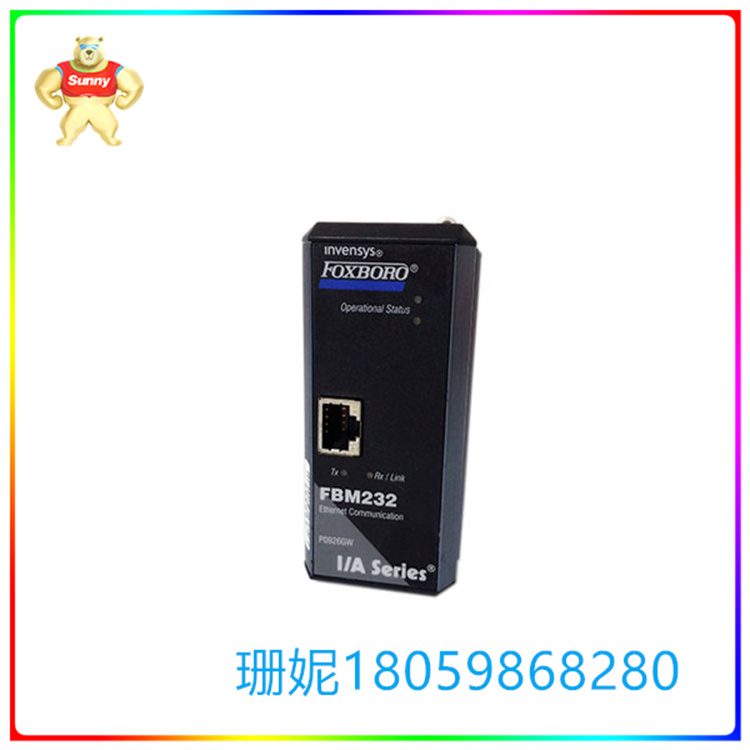

FOXBORO FBM232 P0926GW 以太网通信模块进行调试和解调试

【产品详情】

以太网通讯模块FBM232 P0926GW就是用来对以太网上传输的信号进行调试和解调试,将其转为可交给CPU识别和处理的有效数据的模块.

譬如电脑里面的网卡.

以太网FBM232 P0926GW上的数据是以一种差分的形式传递的.处理器无法识读.所以需要以太网通讯模块,将网络线上的信号转换为CPU能够识别的0和1这样的数据.

同时有些以太网通讯模块也按照TCP/IP协议,将网络上传递的数据进行转换.

PLC以太网通信FBM232 P0926GW是基于传统的Ethernet通信机制，使用以太网和TCP/IP协议作为通信基础，在任何场合下都提供对TCP/IP通信的绝对支持。FBM232 P0926GW为了能够满足自动化中的实时要求，基于PLC以太网层的优化实时通信通道，减少了通信上占用的时间，提高了自动化数据刷新方面的性能。

随着远程在工业设备上的应用，如何能节省成本，让plc以太网通讯模块连接更多的设备从而达到监控和控制的作用。用一台PLC远程通讯模块连接多台以太网PLC，HiNet智能网关最多连接254台以太网接口的PLC或者触摸屏。

PLC模块在以太网通信FBM232 P0926GW特点：PLC模块支持的网络协议较为广泛。

1、标准通信(standard communicaTIon)：主要用于传输结构化数据。PLC模块是一个符合ISO/IES9506-4的工业以太网通信标准，其提供了开放统一的通信标准，可以连接各个厂商的产品。

2、S5兼容通信(S5-compaTIble CommunicaTIon)：该通信包括以下协议：

①ISO传输协议：PLC模块的ISO传输协议支持基于ISO的发送和接收，使得设备在工业以太网上的通信非常容易，该服务支持大数据量的数据传输，最大达8KB。

②TCP:即TCP/IP中的传输控制协议，提供数据通讯。

③UDP:(UserDatagram Protocol，用户数据协议)提供了S5兼容通信协议，适用于简单的、交叉网络的数据传输，没有数据确认报文，但可以保证检测数据的正确性。

【英文介绍】

Ethernet communication module FBM232P0926GW is used to debug and debug the signal transmitted on the Ethernet network, and turn it into a valid data module that can be recognized and processed by the CPU.

For example, the network card inside the computer.

The data on the Ethernet FBM232 P0926GW is transmitted in a differential form. The processor can't read it. Therefore, Ethernet communication modules are needed to convert signals on the network into data such as 0 and 1 that the CPU can recognize.

At the same time, some Ethernet communication modules also convert the data transmitted on the network according to the TCP/IP protocol.

PLC Ethernet communication FBM232 P0926GW is based on the traditional Ethernet communication mechanism, using Ethernet and TCP/IP protocol as the basis for communication, in any case to provide absolute support for TCP/IP communication. FBM232 P0926GW In order to meet the real-time requirements in automation, the real-time communication channel is optimized based on the PLC Ethernet layer, which reduces the time occupied on communication and improves the performance of automatic data refresh.

With the application of remote in industrial equipment, how to save costs, so that plc Ethernet communication modules connect more equipment to achieve the role of monitoring and control. Connect multiple Ethernet PLCS with one PLC remote communication module, HiNet intelligent gateway can connect up to 254 Ethernet interface PLCS or touch screens.

PLC module in Ethernet communication FBM232 P0926GW Features: PLC module supports a wide range of network protocols.

1. standard communicaTIon: Mainly used for the transmission of structured data. PLC module is an industrial Ethernet communication standard in line with ISO/IES9506-4, which provides an open and unified communication standard that can connect the products of various manufacturers.

2, S5-compaTIble CommunicaTIon: The communication includes the following protocols:

①ISO transmission protocol: The ISO transmission protocol of the PLC module supports ISo-based sending and receiving, making the communication of the device on the industrial Ethernet network very easy, and the service supports the transmission of large amounts of data, up to 8KB.

TCP: TCP/IP transmission control protocol, providing data communication.

UDP (UserDatagram Protocol) provides an S5 compatible communication protocol, which is suitable for simple, cross-network data transmission, without data confirmation messages, but can ensure the correctness of the detected data.
