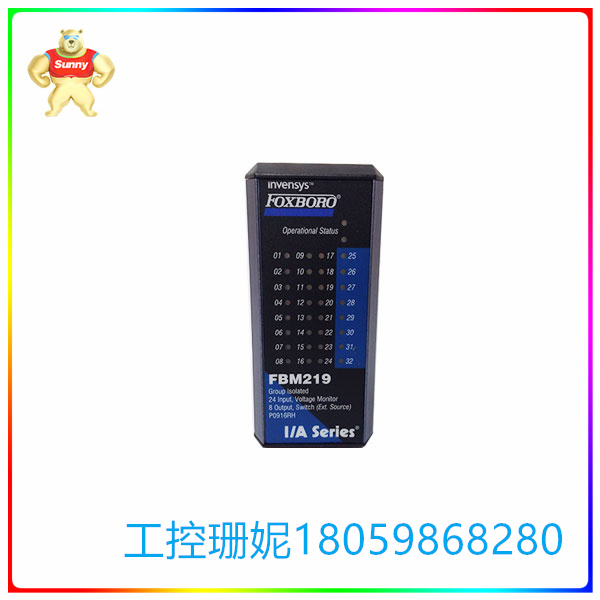

FBM219 离散I/O接口模块 带有内部或外部电源

【产品详情】

紧凑型FBM219离散I/O模块有24个离散输入通道和8个

离散输出通道。关联的终止程序集(ta)支持离散的

电压≤30v dc、120v ac/ 125v dc或240v ac的输入或输出信号。

根据所需I/O信号的类型，TAs包含限流装置，

带有内部或外部电源和熔断器的熔断器、继电器或继电器输出

•24个离散输入

•8个离散输出

•支持分立输入/输出信号的电压:

◦15 ~ 60v dc

◦120v ac/ 125v dc

◦240V ac

•每个输入/输出是组隔离的

•紧凑，坚固的设计适用于G3(恶劣)环境的外壳

•执行离散I/O或梯形逻辑程序，具有以下功能

可配置选项:输入过滤时间，故障安全配置，故障安全下降回退，以及持续或瞬间输出

•各种终端组件(ta)，包含高压衰减和

输入端光隔离

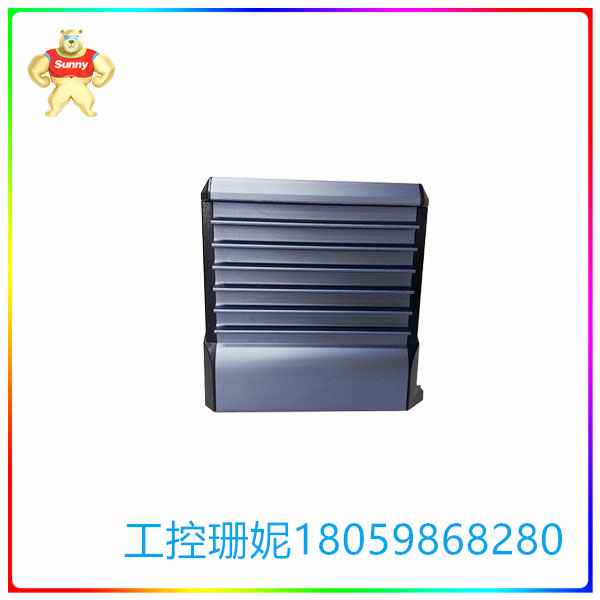

紧凑的设计

紧凑型FBM219的设计比标准的200系列现场总线更窄

模块(fbm)。它有一个坚固的丙烯腈丁二烯苯乙烯(ABS)外部

电路的物理保护。专门设计用于安装的外壳

fbm提供不同程度的环境保护，甚至恶劣的环境，

根据ISA标准S71.04。

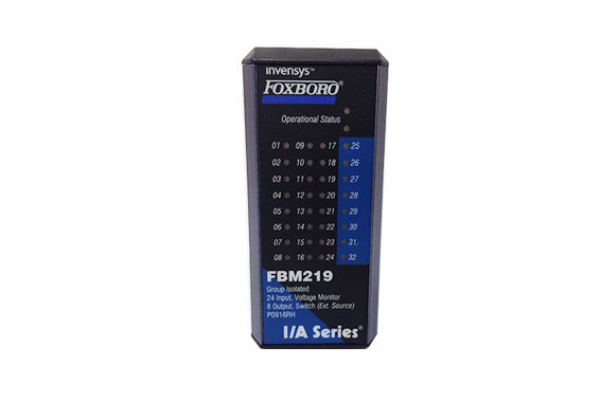

视觉指标

集成到模块前部的发光二极管(led)提供视觉

FBM运行状态的指示，以及个体的离散状态

输入输出点

FBM219 离散I/O接口模块 带有内部或外部电源

【英文介绍】

The compact FBM219 discrete I/O module has 24 discrete input channels and 8

Discrete output channels. The associated termination assembly (ta) supports discrete

Input or output signals with voltage ≤30v dc, 120v ac/ 125v dc or 240v ac.

Depending on the type of I/O signal required, TAs includes current limiting devices,

Fuse, relay, or relay output with internal or external power and fuses

•24 discrete inputs

•8 discrete outputs

• Voltage to support discrete input/output signals:

◦15 ~ 60v dc

◦120v ac/ 125v dc

◦240V ac

• Each input/output is group isolated

• Compact, rugged design for G3(harsh) environment enclosures

• Performs discrete I/O or ladder logic programs with the following functions

Configurable options: Input filter time, fail-safe configuration, fail-safe descent  rollback, and continuous or instantaneous output

• Various terminal components (ta), including high voltage attenuation and

Input optical isolation

Compact design

The compact FBM219 is designed to be narrower than the standard 200 series fieldbus

Module (fbm). It has a strong acrylonitrile butadiene styrene (ABS) exterior

Physical protection of the circuit. Housing specifically designed for mounting

fbm offers varying degrees of environmental protection, even in harsh environments,

According to ISA standard S71.04.

Visual index

Light emitting diodes (leds) integrated into the front of the module provide vision

An indication of the operating state of the FBM, as well as the discrete state of the individual

Input/output point
