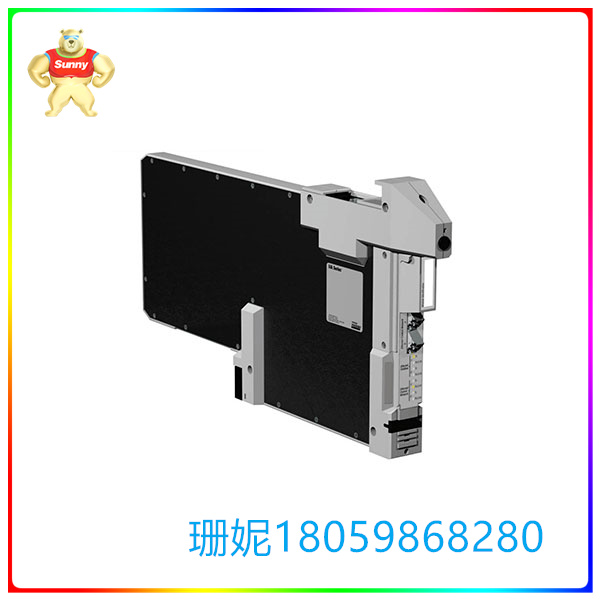

FOXBORO ZCP270 通信输出接口模块

【产品详情】

Zcp270故障开关连接器。P0926DF

容错ZCP270的两个模块必须安装在相邻的安装结构槽位

允许安装互连的全公差连接器。

ZCP270的容错版本由两个单宽度处理器模块组成。这些

模块安装在相邻的ZCP270槽位，并连接到容错连接器，以允许高-

在20年的使用寿命内，模块之间的通信速度更快，功率最大

以100%的利用率消耗OW。

ZCP270 FOXBORO控制处理器模块270是分布式的、可选的容错控制器，执行根据用户定义的控制策略实现过程控制和报警功能。

特征

执行管理、逻辑、定时和顺序与连接的现场总线-起控制模块

支持多达128个200系列现场总线模块(FBM- 紧凑型或标准型)使用FCM100Et现场总线时通信模块

最多支持128个200系列FBM (紧凑型或标准型)、100系列FBM, 或100系列和200系列的组合使用FCM100E现场总线时的FBM通信

模块

执行数据采集和报警检测和通知

提供独特的专利容错操作使用两个控制模块大大提高相对于其他过程控制器的可靠性

通过连接到MESH控制网络标准光纤100Mbps以太网使用通用的控制算法和各种FBM,为广泛的工艺应用

支持使用可选的时间同步来自GPS卫星的外部时间

提供容错的在线图像更新ZCP270，不关闭工艺

使用可通过I/A Series⑧系统L etterbug配置程序

支持I/A系列的自托管模式软件版本8.4-v8.8或Foxboro Evo"控制Core Services v9.0或更高版本。

FOXBORO ZCP270 通信输出接口模块

【英文介绍】

Zcp270 Faulty switch connector. P0926DF

The two modules of the fault-tolerant ZCP270 must be installed in adjacent installation slots

Full-tolerance connectors allow installation of interconnects.

The fault-tolerant version of the ZCP270 consists of two single-width processor modules. these

Modules are installed in adjacent ZCP270 slots and connected to fault-tolerant connectors to allow high -

During the 20-year service life, the communication between modules is faster and the power is maximum

Consume OW at 100% utilization.

The ZCP270 FOXBORO Control Processor Module 270 is a distributed, optional fault-tolerant controller that performs process control and alarm functions according to user-defined control policies.

trait

Perform management, logic, timing and sequencing with a connected fieldbus - up control module

Supports up to 128 200 series fieldbus modules (FBM- compact or standard) communication modules when using the FCM100Et fieldbus

Supports up to 128 FBMS for 200 series FBMS (compact or standard), 100 series FBMS, or a combination of 100 series and 200 series FBMS using the FCM100E fieldbus

module

Perform data acquisition and alarm detection and notification

Offering unique patented fault-tolerant operation using two control modules greatly improves reliability relative to other process controllers

By connecting to MESH control networks standard fiber 100Mbps Ethernet uses common control algorithms and a variety of FBMS for a wide range of process applications

Support external time synchronization from GPS satellites using optional time synchronization

Provides fault-tolerant online image update ZCP270 without closing the process

Use the system L etterbug configuration program through I/A Series⑧

Support for I/A series of self-hosted mode software versions 8.4-v8.8 or Foxboro Evo" Control Core Services v9.0 or later.
