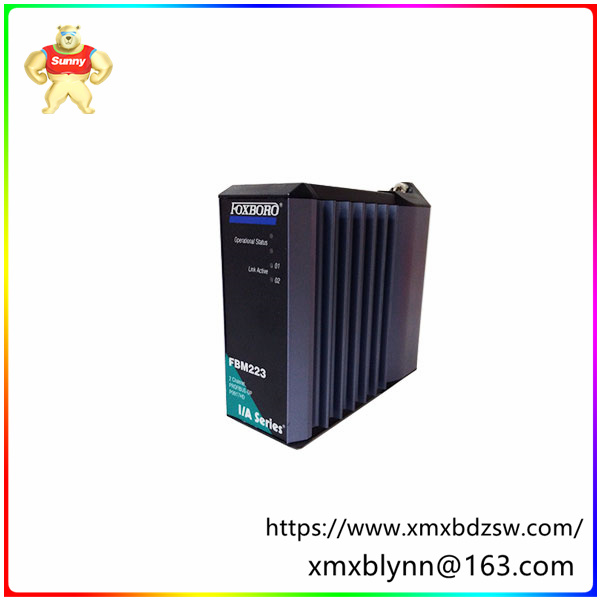

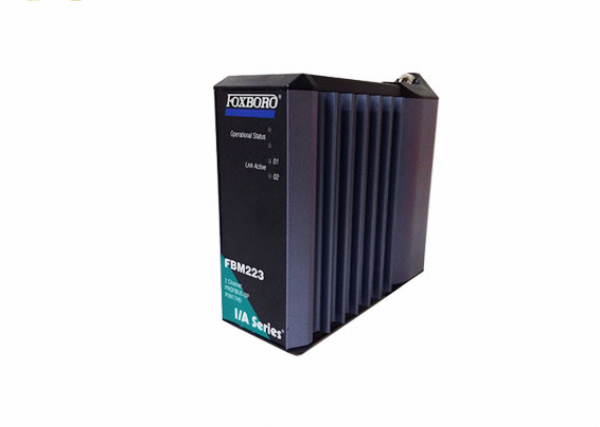

FBM223 PROFIBUS-DP通信接口模块 采用紧凑而坚固的设计

☆型号：FBM223   PROFIBUS-DP通信接口模块    采用紧凑而坚固的设计

【产品详情】

FBM223模块的主要特点是:

符合PROFIBUS-DP现场总线

规范

提供对所有设备变量和的完全支持

诊断消息

将PROFIBUS从设备数据集成到一个

I/A系列控制数据库

FBM223及其相关的终止

组件(TA)适合安装在

1类，2区和2区位置。

FBM223是由福克斯波罗造的PROFIBUS-DP通信接口模块。它提供了以下之间的接口：

PROFIBUS-DP从设备：这些可以是各种工业自动化设备，例如：

电机驱动

I/O模块（数字、模拟或特殊功能）

现场 I/O 设备（传感器和执行器）

I/A系列系统：是指提供的特定工业自动化控制系统。

FBM223的主要功能：

PROFIBUS-DP 通信：它支持使用 PROFIBUS-DP 协议的 I/A 系列系统和 PROFIBUS-DP 从设备之间的通信。PROFIBUS-DP是一种广泛使用的工业通信标准，适用于过程自动化和制造应用。

数据交换：FBM223 有助于 I/A 系列系统和连接设备之间的数据交换。这些数据可以包括传感器读数、控制命令、状态信息和其他过程变量。

多通道：FBM223通常有两个独立的通信通道。这允许它连接到网络不同段上的多个PROFIBUS-DP从设备。

FBM223 的特点：

紧凑型设计：该模块采用紧凑而坚固的设计，易于在工业环境中安装。

物理保护：挤压铝外壳为模块电路提供物理和电气保护。

环境保护：专为安装 FBM223 而设计的外壳提供各种级别的环境保护，最高可达 ISA 标准 S71.04 定义的恶劣环境。

可拆卸模块：FBM223 可以拆卸或更换，而无需拆卸现场设备终端电缆、电源或通信电缆。

LED指示灯：该模块具有 LED 指示灯，可提供有关其运行状态和每个通道上通信活动的视觉信息。

应用：

FBM223 模块用于各种工业自动化应用，其中需要 PROFIBUS-DP 通信以将各种设备和传感器与中央控制系统集成（如施耐德电气的 I/A 系列系统）。以下是一些示例：

过程控制：监测和控制化工厂、炼油厂和发电设施等工业过程中的温度、压力、流量和液位等过程变量。

机器控制：控制工厂和生产线中机器和设备的运行。

数据采集和监控：从传感器收集数据并监控各种过程参数，以便进行分析和控制。

【英文介绍】

Key features of the FBM223 module are:

 Conforms to PROFIBUS-DP Fieldbus

specifications

 Provides full support for all device variables and

diagnostic messages

 Integrates PROFIBUS slave device data into an

I/A Series control database

 The FBM223 and its associated termination

assembly (TA) are suitable for installation in

Class 1, Division 2 and Zone 2 locations.

The FBM223 is a PROFIBUS-DP communication interface module built by Foxboro. It provides an interface between:

PROFIBUS-DP slave equipment: These can be various industrial automation equipment, such as:

Motor drive

I/O modules (digital, analog or special functions)

Field I/O devices (sensors and actuators)

I/A Series systems: This refers to specific industrial automation control systems from Schneider Electric.

Main functions of the FBM223:

PROFIBUS-DP communication: It supports communication between I/A series systems using the PROFIBUS-DP protocol and PROFIBUS-DP slave devices. PROFIBUS-DP is a widely used industrial communication standard for process automation and manufacturing applications.

Data Exchange: The FBM223 facilitates data exchange between I/A series systems and connected devices. This data can include sensor readings, control commands, status information, and other process variables.

Multi-channel: The FBM223 typically has two independent communication channels. This allows it to connect to multiple PROFIBUS-DP slave devices on different segments of the network.

The FBM223 features:

Compact design: The module features a compact yet robust design that makes it easy to install in an industrial environment.

Physical protection: The extruded aluminum housing provides physical and electrical protection for the module circuits.

Environmental protection: Enclosures designed for the installation of the FBM223 provide various levels of environmental protection up to the harsh environments defined in ISA standard S71.04.

Detachable module: The FBM223 can be removed or replaced without removing the field device terminal cable, power supply, or communication cable.

LED indicators: The module has LED indicators that provide visual information about its operating status and communication activity on each channel.

Applications:

The FBM223 module is used in A variety of industrial automation applications where PROFIBUS-DP communication is required to integrate various devices and sensors with central control systems, such as Schneider Electric's I/A series systems. Here are some examples:

Process control: Monitor and control process variables such as temperature, pressure, flow and level in industrial processes such as chemical plants, refineries and power generation facilities.

Machine control: Control the operation of machines and equipment in factories and production lines.

Data acquisition and monitoring: Collect data from sensors and monitor various process parameters for analysis and control.
