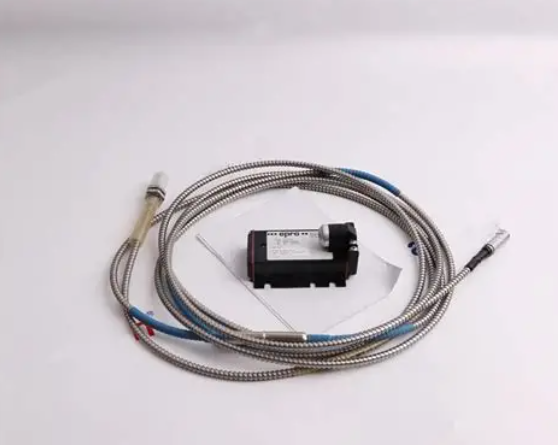

PR6423/010-010+CON21 振动传感器 用于关键的涡轮机应用

☆型号：PR6423/010-010+CON21 振动传感器 用于关键的涡轮机应用

【产品详情】

PR6423/010-010+CON021 以下步骤描述了传感器类型PR 6422、PR 6423、PR 6424和

第6425条。有关PR 6426的安装提示，请参阅PR 6426安装。另请参阅

有关传感器的更多详细信息，请参见表1-1中列出的相应转换器手册

调整

PR6423/010-010+CON021 程序

1.将传感器拧入支架。

确保螺纹清洁且运行平稳。

不要弯曲或扭曲传感器电缆。如果传感器电缆有LEMO适配器插头

打开它。

为了避免在安装过程中接触轴

必须首先调整测量目标和传感器头-拧入传感器，直到

转换器输出电压开始改变（大约在-20V DC）。关闭用于测量转换器输出电压的LEMO适配器插头。

PR6423/010-010+CON21振动传感器是一款非接触式传感器，设计用于关键的涡轮机应用，如燃气和水力涡轮机、压缩机、齿轮箱、泵和风扇。该传感器可以测量径向和轴向的轴动态位移，以及位置、偏心率和速度。

☆型号：PR6423/010-010+CON21 振动传感器 用于关键的涡轮机应用

【英文介绍】

PR6423/010-010+CON021 The following steps describe sensor types PR 6422, PR6423, PR 6424 and

Article 6425. For installation tips on PR 6426, see PR 6426 Installation. See also

For more details about the sensors, see the corresponding converter manuals listed in Table 1-1

adjust

PR6423/010-010+CON021 procedure

1. Screw the sensor into the support.

Ensure that threads are clean and run smoothly.

Do not bend or twist sensor cables. If the sensor cable has a LEMO adapter plug

Open it up.

To avoid contact with shaft during installation

You must first adjust the measurement target and sensor head - screw in the sensor until

The converter output voltage starts to change (at about -20V DC). Close the LEMO adapter plug used to measure the output voltage of the converter.

The PR6423/010-010+CON21 vibration sensor is a non-contact sensor designed for critical turbine applications such as gas and hydraulic turbines, compressors, gearboxes, pumps and fans. The sensor can measure axial dynamic displacement in both radial and axial directions, as well as position, eccentricity and velocity.
