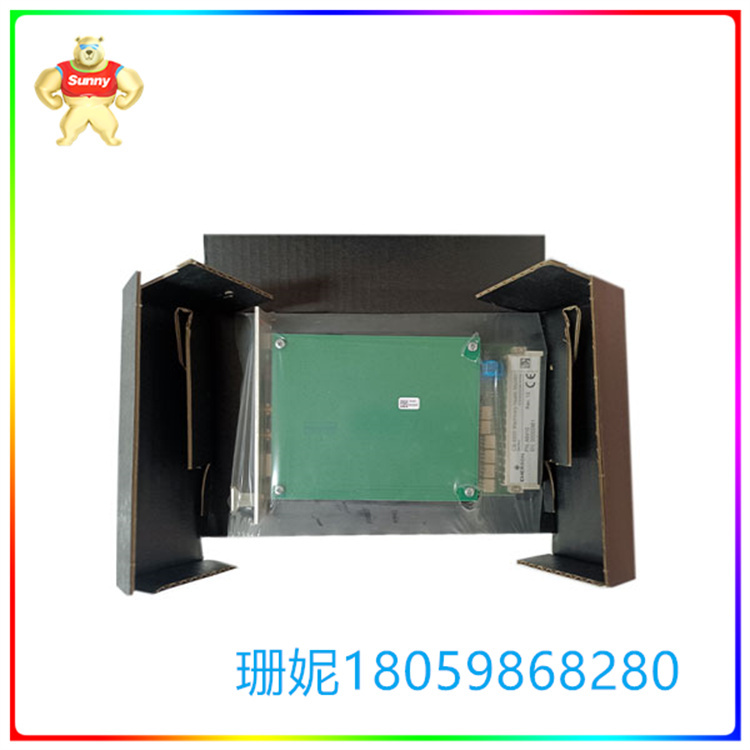

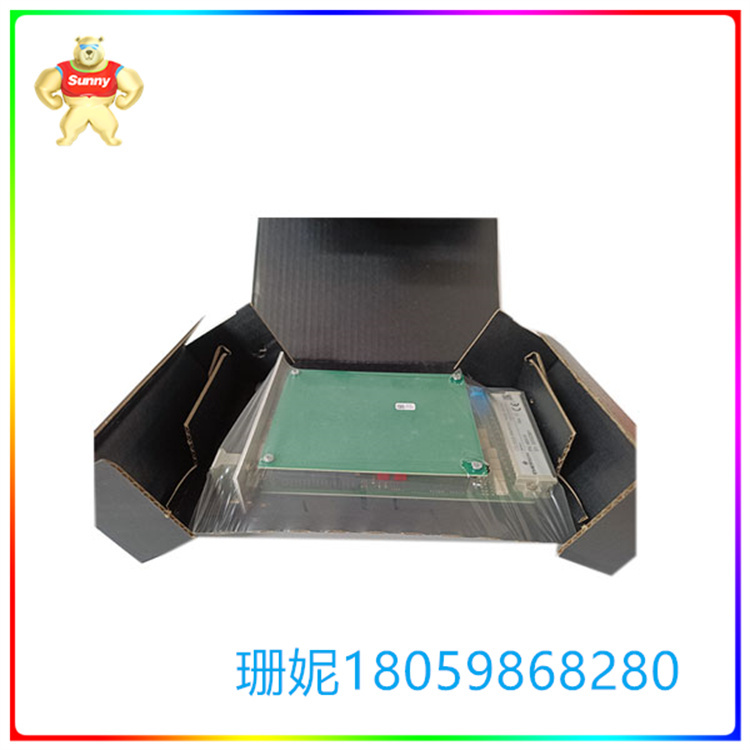

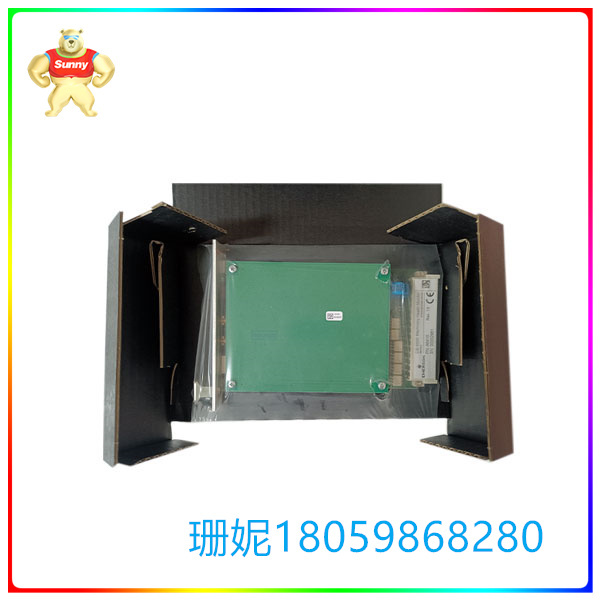

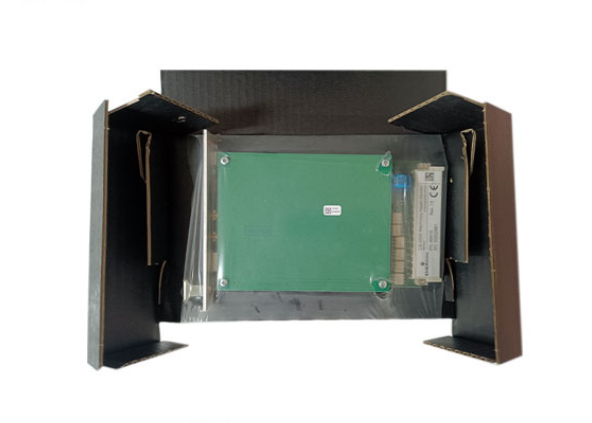

EPRO  A6410 旋转监测机器

【产品详情】

CSI 6500机器状态监控对应于完全符合API 670并为保护和关键、旋转监测机器。特殊技能该系统的数据集成中的保护功能过程自动化DeltaV只有三个简单的鼓掌步骤，瞬态分析现场演示、录制、，暂停和播放，以及优秀的PeakVue用于早期检测的处理滚动轴承损坏和驱动的配置

装配托架：

-19“装配托架仅适用于保护功能为6-U版本以及标准3HE版本。

-19“装配托架仅适用于6U中的预测功能安装高度前部或后部传感器接线板。此外，还有一个7.5英寸紧凑型可用的安装宽度。

-用于组合保护功能和预测仅19“/6 HE使用了装配托架。

完整机器监控功能API 670顺从的

n机柜安装用标准19“/6 HE模块托架

n系统设计确保在卡出现故障时超过两个频道受到影响待更换

n内部时钟与系统主时钟同步

n冗余ModBus连接，TCP或串行，用于集成第三方控制系统中的保护监视器。预测参数的附加ModBus输出

n个插槽，用于16或32个跳闸继电器输出

n双通道速度

EPRO  A6410 旋转监测机器

【英文介绍】

CSI 6500 machine condition monitoring corresponds to fully API 670 compliant and protected and critical, rotational monitoring machines. The system's data integration in the protection function process automation DeltaV has only three simple clapping steps, transient analysis live demonstration, recording, pause and playback, as well as the excellent PeakVue for early detection of handling rolling bearing damage and drive configuration

Assembly bracket:

-19 "Assembly brackets are only available for 6-U versions with protection functions and standard 3HE versions.

-19 "Assembly brackets are only suitable for predictive function mounted height front or rear sensor patch panels in 6U. In addition, a 7.5-inch compact is available with a mounting width.

- For combining protection functions and predicting only 19 "/6 HE uses an assembly bracket.

Full machine monitoring functionality API 670 compliant

n Standard 19 "/6 HE module tray for cabinet installation

The system design ensures that more than two channels are affected to be replaced in the event of a card failure

n Synchronize the internal clock with the system master clock

n Redundant ModBus connections, TCP or serial, for integrating protection monitors in third-party control systems. Additional ModBus output for predicted parameters

n slots for 16 or 32 trip relay outputs

n Dual-channel speed
