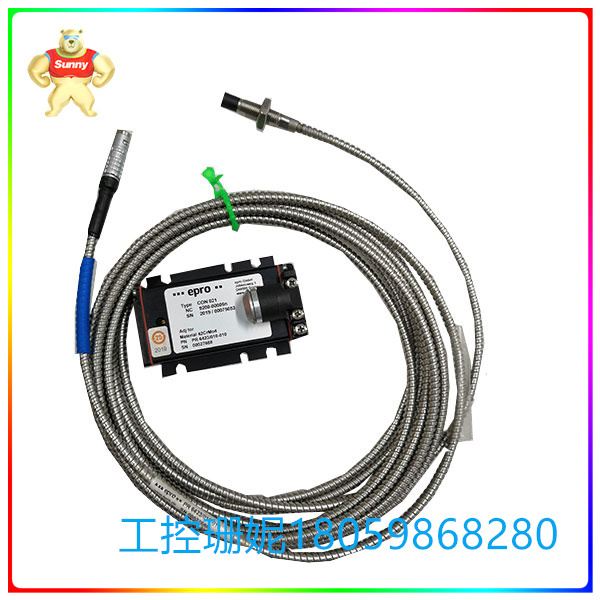

PR6423/013-000-CN  轴向振动传感器

【产品详情】

PR6423/013-000-CN 系列用于测量频率范围10…1000Hz和4...1000Hz的*机械振动。测量大振幅可达 2mm有的可达 3mm (峰-峰值)。可提供与振动速度成正比的电压信号。两种系列的传感器提供几种基本型号，广泛应用于工业测量的多个领域。坚固的结构允许安装在危险的环境。可以应用在各种涡轮机械、风扇、压缩机、齿轮箱、水泵、研煤机等。

产品特点

PR6423（飞利浦）系列电动式传感器用于测量*振动；

工作温度可达200℃；

易于安装；

高灵敏度；

坚固的外壳适合工业应用；

防水保护等级：IP 55 resp. IP 65；

两种频率范围：10 Hz - 1000 Hz；4 Hz - 1000 Hz；

连接*栅 (zone 1)防爆等级 EEx ib II B / II C；

是MMS 6000和MMS 3000旋转机械监测保护系统的一部分。

PR6423/013-000-CN  轴向振动传感器

【英文介绍】

PR6423/013-000-CN series for measuring frequency range 10... 1000Hz and 4... 1000Hz * mechanical vibration. Measuring large amplitude up to 2mm and up to 3mm (peak-peak). A voltage signal proportional to the vibration speed can be provided. Both series of sensors are available in several basic models and are widely used in many areas of industrial measurement. Rugged construction allows installation in hazardous environments. It can be used in various turbo-machines, fans, compressors, gear boxes, water pumps, coal ladders and so on.

Product characteristics

PR6423 (Philips) series of electrodynamic sensors for measuring * vibration;

Operating temperature up to 200℃;

Easy to install;

High sensitivity;

Rugged housing for industrial applications;

Waterproof protection class: IP 55 resp. IP 65;

Two frequency ranges: 10 HZ-1000 Hz; 4 HZ-1000 Hz;

Connection * gate (zone 1) Explosion-proof class EEx ib II B/II C;

It is part of the MMS 6000 and MMS 3000 rotating machinery monitoring and protection systems.
