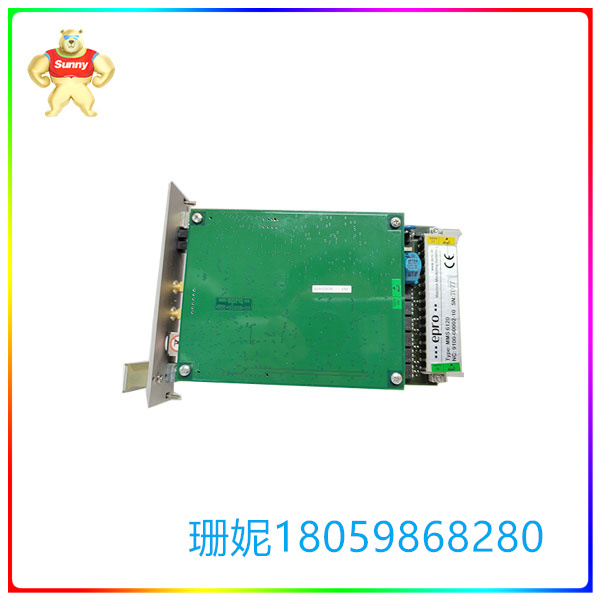

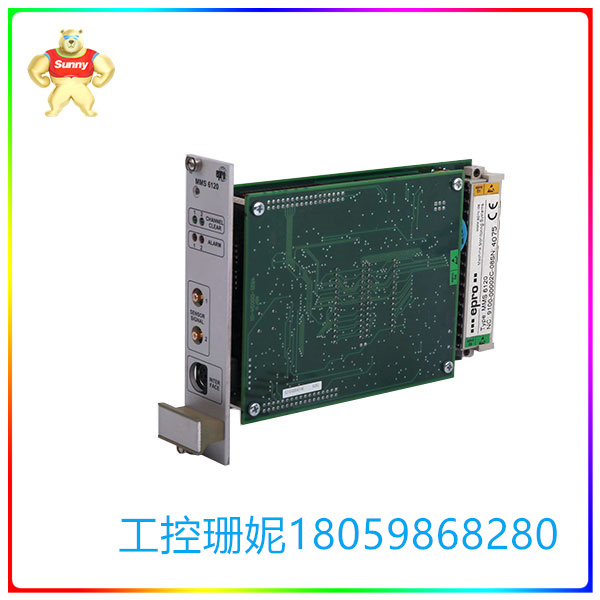

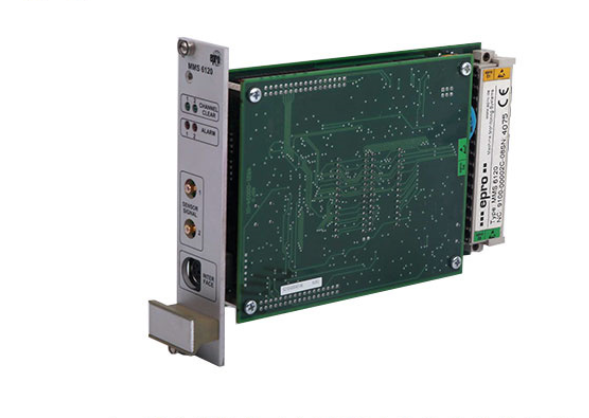

MMS6120 瓦振监测板  EPRO 监测轴承振动

【产品详情】

特点：

双通道瓦振测量模块，监测轴承振动。

可在运行中更换，可单独使用，冗余电源输入。

扩展的自检功能，内置传感器自检功能，口令保护操作级。

适用涡流传感器PR9266/...和PR9268/...或者压电式传感器。

RS232/485端口用于现场组态及通讯，可读出测量值。

内置线性化处理器。

记录和存储近一次起/停机的测量数据。

应用：

双通道轴承振动测量模块 MMS6120,用电动式速度传感器测量轴承振动。

传感器输出类型有:

VRMS (Veff) 均方根值 振动速度

Sop (零峰值) 振动位移

Spp (峰峰值) 振动位移

模块的设计满足通用的国际标准，如: API670、VDI2056、VDI2059。这种模块的测量可以和其它模块的测量一起组成涡轮机械保护系统, 以及作为输入提供给分析诊断系统、现场总线系统、分散控制系统、电厂/主计算机、网络如：WAN/LAN网、以太网。

对于蒸汽机、燃汽机、水轮机、压缩机、风扇、离心机以及其它涡轮机械，使用本系统可提高使用效率、运行安全性和延长机械使用寿命。

MMS6120 为双通道轴承振动测量模块，可以用电动式速度传感器测量轴承振动（瓦振）来监测和保护各种类型的涡轮机械，如：汽轮机、燃汽轮机、压缩机、风扇、齿轮箱、鼓风机、离心机等。

安装在轴瓦上的传感器的输出信号与轴瓦的*振动成正比。MMS6120模块将两个通道的传感器输入信号分别转换成标准信号输出。模块的其它部分提供报警、传感器供电、模块供电、通道和传感器的检测及信号滤波等功能。

模块内置微处理器，可以通过现场便携机或远程通讯总线设置工作方式和参数，读取所有测量值，进行频谱分析。后一次起/停机过程存储在模块中，可以通过计算机显示。

MMS6120 瓦振监测板  EPRO 监测轴承振动

【英文介绍】

Features:

Dual channel tile vibration measurement module to monitor bearing vibration.

Can be replaced in operation, can be used alone, redundant power input.

Extended self-check function, built-in sensor self-check function, password protection operation level.

For eddy current sensor PR9266/... And PR9268/... Or piezoelectric sensors.

RS232/485 port for field configuration and communication, can read the measured value.

Built-in linearization processor.

Record and store measurement data for the last start/stop.

Applications:

Two-channel bearing vibration measurement module MMS6120, measuring bearing vibration with electric speed sensor.

Sensor output types are:

VRMS (Veff) root mean square value Vibration velocity

Sop (Zero peak) vibration displacement

Spp (peak-to-peak value) vibration displacement

Modules are designed to meet common international standards such as API670, VDI2056, VDI2059. Measurements of this module can be combined with measurements of other modules to form turbomachinery protection systems, as well as provided as input to analytical diagnostic systems, fieldbus systems, decentralized control systems, power plants/main computers, networks such as WAN/LAN networks, and Ethernet.

For steam engines, gas engines, water turbines, compressors, fans, centrifuges and other turbo-machinery, the use of this system can improve the efficiency, operation safety and prolong the service life of the machinery.

The MMS6120 is a two-channel bearing vibration measurement module that can be used to measure bearing vibration (tilting vibration) with an electric speed sensor to monitor and protect various types of turbine-machinery such as steam turbines, gas turbines, compressors, fans, gearboxes, blowers, centrifuges, etc.

The output signal of the sensor mounted on the bearing is proportional to the maximum vibration of the bearing. The MMS6120 module converts the sensor input signals of the two channels into the standard signal output. Other parts of the module provide alarm, sensor power supply, module power supply, channel and sensor detection and signal filtering functions.

The module has a built-in microprocessor, which can set the working mode and parameters through the field portable computer or the remote communication bus, read all the measured values, and perform spectrum analysis. The last start up/stop procedure is stored in the module and can be displayed through the computer.
