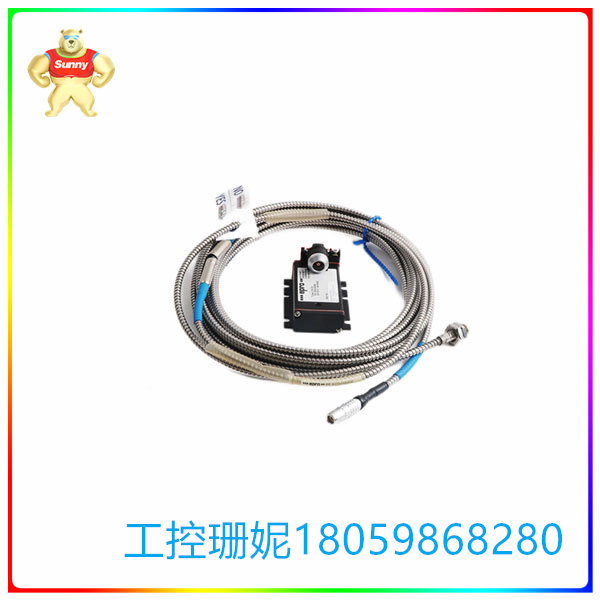

☆型号：PR6423/010-110+CON021 涡流传感器 不同螺纹长度
【产品详情】
涡流传感器 PR6423/010-110 德国epro现货
技术参数
不同螺纹长度
电缆的末端可选择自锁式防水接头或裸线方式
电缆可选择铠装或非铠装
1m电缆处可选择有接头或无接头。
适用温度：-35℃-+380℃
概述

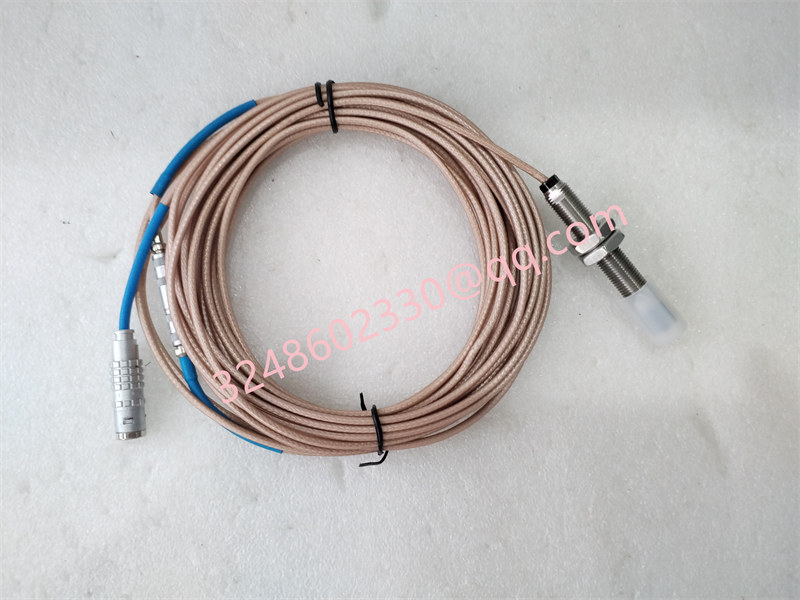

epro轴振传感器由三部分组成：传感器、延伸线、前置器。 传感器使用电涡流检测技术，将检测到的距离信号转换为标准的电压输出，送至监视器进行监控并输出。
订货

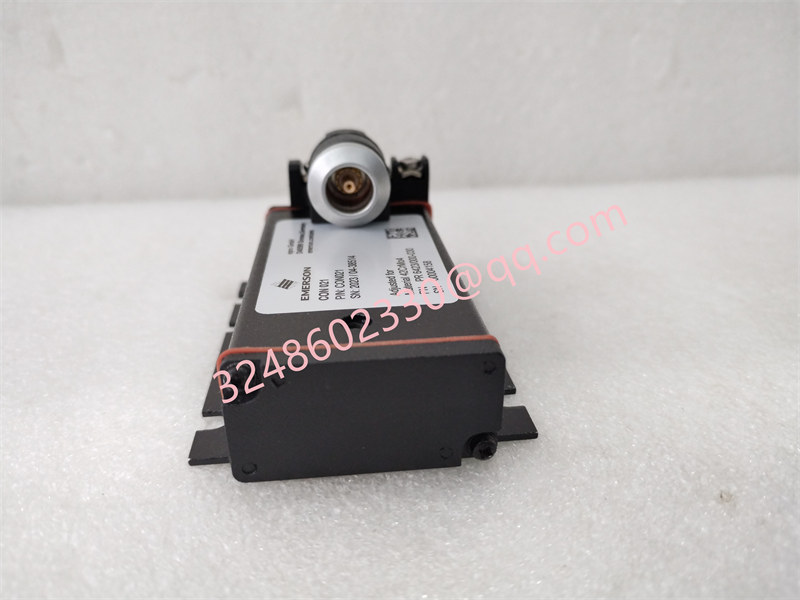

在订货时必须选择传感器的安装螺纹形式、螺纹长度、金属铠装、中间接头、延伸线长度、前置器类型。 传感器螺纹形式用于传感器在支架上固定时安装螺纹的规范，有两种尺寸可以选择：公制：M10*1，英制：3/8”-24UNF。 螺纹长度用于在安装时调节探头表面与支架的距离，长度越长，可调节长度越长。必须注意的是安装空间是否可以容纳更长的探头体。 金属铠装指在延伸电缆外的不锈钢金属保护套管。 在传感器延伸线上可选1m处接头，接头的作用是方便安装，如果采用套筒式支架，必须选用带中间接头的传感器。 前置器可选防爆级别的型号CON011或标准型前置器CON021。 当涡流传感器用于轴振测量时，通常选择探头直径8mm，线性工作范围为2mm的传感器PR6423系列。
☆型号：PR6423/010-110+CON021 涡流传感器 不同螺纹长度
【英文介绍】
Eddy current sensor PR6423/010-110 epro from Germany
Technical parameter
Different thread lengths
The end of the cable can be self-locking waterproof connector or bare wire
Cables can be armoured or unarmoured
1m cables can be connected with or without a connector.
Applicable temperature: -35℃-+380℃
summarize
The epro shaft vibration sensor consists of three parts: the sensor, the extension line, and the preprocessor. The sensor uses eddy current detection technology to convert the detected distance signal into a standard voltage output, which is sent to the monitor for monitoring and output.
Order goods
When ordering the sensor, you must select the mounting thread form, thread length, metal armor, intermediate joint, extension line length, and preprocessor type. Sensor thread form Specification for mounting threads when the sensor is mounted on the bracket, available in two sizes: metric: M10*1, inch: 3/8 "-24UNF. The thread length is used to adjust the distance between the probe surface and the support during installation. The longer the length, the longer the adjustable length. It must be noted whether the mounting space can accommodate a longer probe body. Metal armor refers to the stainless steel metal protective sleeve outside the extension cable. The sensor extension line can be connected at 1m, the function of the connector is to facilitate installation, if the sleeve type bracket is used, the sensor with an intermediate connector must be selected. The preprocessor is available in explosion-proof class CON011 or standard type CON021. When eddy current sensors are used for shaft vibration measurement, the PR6423 series with probe diameter of 8mm and linear operating range of 2mm is usually selected.
