PR9268/201-000
PR9268/201-000

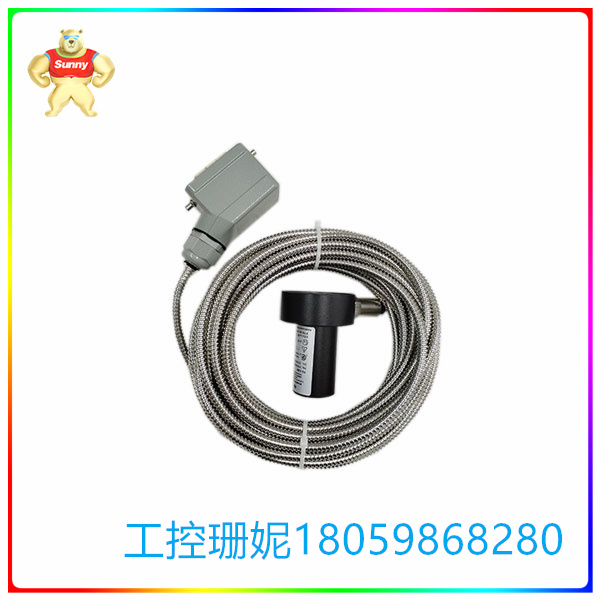

PR9268/201-000 瓦振传感器 振动传感器用于测量频率

型号:PR9268/201-000瓦振传感器振动传感器用于测量频率【产品详情】PR9268/201-000振动传感器EPRO产品介绍PR9268/201-000

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:PR9268/201-000 瓦振传感器 振动传感器用于测量频率







【产品详情】

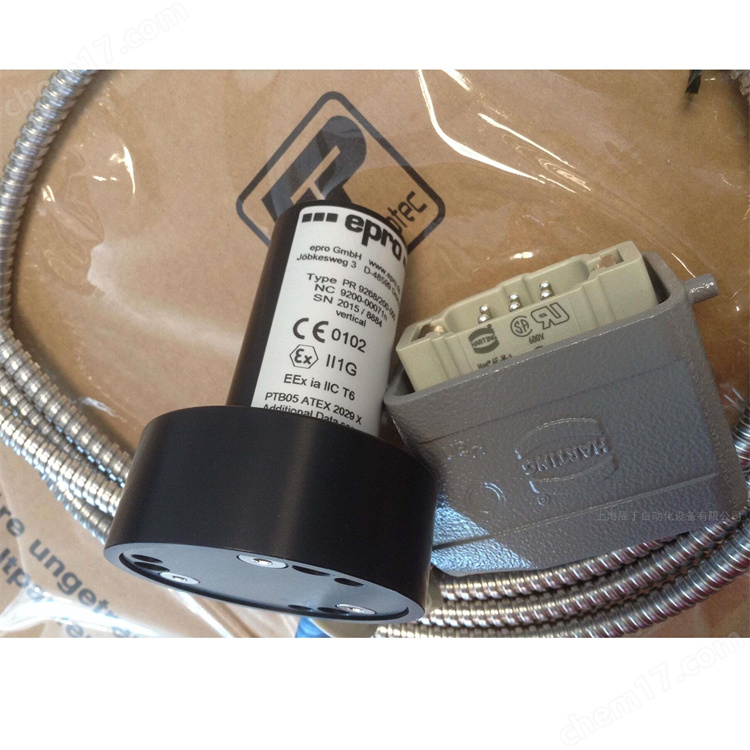

PR9268/201-000振动传感器EPRO


产品介绍

  PR9268/201-000绝dui振动传感器用于测量频率范围 10…1000Hz 和 4...1000Hz的绝dui机械振动. 测量zd振幅可达 3mm (峰-峰值). 可提供与振动速度成正比的电压信号。 传感器提供几种基本型号,广泛应用于工业测量的多个领域。 坚固的结构允许安装在危险的环境。可以应用在各种涡轮机械、风扇、压缩机、齿轮箱、水泵、磨煤机等。 传感器PR 9268/60 和 PR 9268/70 尤其适用在高温的环境中,如应用在燃气轮机上。这种传感器有三种不同的灵敏度供选择。 测量线圈高输出低阻抗使传感器有很强的抗干扰性。

产品特点

用于测量机械的绝dui振动

电动式工作原理

安装简单

灵敏度高

结构坚固

工作运行温度高(达到200 oC)

测量频率范围 10…1000Hz 和 4...1000Hz

使用安全栅Ex可达到安全等 级ATEX

工作原理

绝dui振动传感器PR9268由一个地震块和一个由弹簧片支持的测量线圈组成。测量元件可在一个圆形永9磁铁的磁场中沿轴向移动(测量方向)。 传感器的固有频率在4-13Hz之间,取决于不同的传感器型号。传感器外壳振动,会产生一个与振动速度成正比的电压信号。




型号:PR9268/201-000 瓦振传感器 振动传感器用于测量频率





英文介绍





PR9268/201-000 Vibration sensor EPRO


Product introduction

PR9268/201-000 Exclusive dui Vibration sensor for measuring frequency range 10... 1000Hz and 4... Absolute dui mechanical vibration at 1000Hz. Measure the zd amplitude up to 3mm (peak-to-peak). Provide a voltage signal that is proportional to the vibration speed. The sensors are available in several basic models and are widely used in many areas of industrial measurement. Rugged construction allows installation in hazardous environments. It can be used in various turbomachinery, fan, compressor, gear box, water pump, coal mill and so on. The sensors PR 9268/60 and PR 9268/70 are particularly suitable for use in high-temperature environments, such as gas turbines. The sensor is available in three different sensitivities. The high output and low impedance of the measuring coil make the sensor have strong anti-interference.

Product characteristics

Used to measure the absolute dui vibration of machinery

Electrodynamic working principle

Easy to install

High sensitivity

Strong construction

High operating temperature (up to 200 oC)

Measuring frequency range 10... 1000Hz and 4... 1000Hz

Safety level ATEX can be achieved using safety gate Ex

Working principle

The absolute dui vibration sensor PR9268 consists of a seismic block and a measuring coil supported by a spring plate. The measuring element can be moved axially (in the direction of measurement) in the magnetic field of a circular permanent 9 magnet. The natural frequency of the sensor ranges from 4 to 13Hz, depending on the sensor model. The sensor housing vibrates, producing a voltage signal that is proportional to the vibration speed.




型号:PR9268/201-000 瓦振传感器 振动传感器用于测量频率
