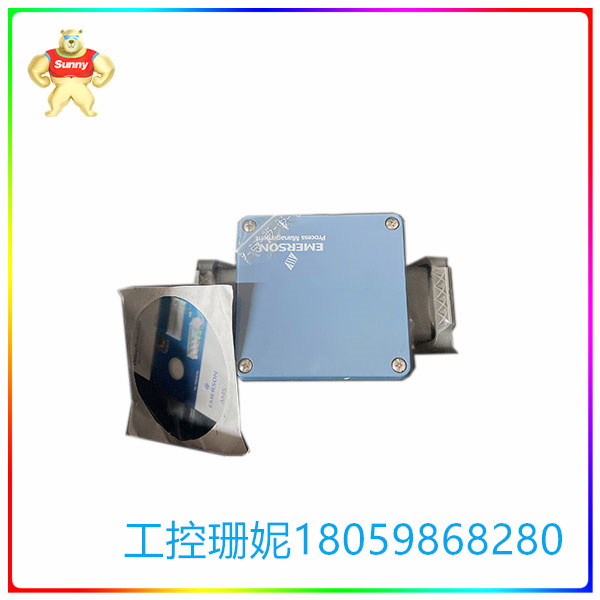

CSI3120 轴承振动监测 双通道轴承-振动监测器

☆型号：CSI3120 轴承振动监测 双通道轴承-振动监测器

【产品详情】

艾默生双通道轴承-振动监测器专为小型和中小型企业设计

低通道应用，如小型蒸汽，燃气和水轮机等

作为压缩机、泵和风机的绝对轴承振动信号的测量。

测量设置，报警和提供的输出是现场可配置的

通过软件。

测量性能

传感器输入类型PR9268型地震传感器

测量范围可自由选择

组态软件按

所应用传感器的测量范围

频率范围:高通滤波器5 / 10 / 15hz

低通滤波器50 ~ 1500hz

连接类型“Harting”socket

环境

冲击极限20克每包

温度范围-20至65°C(-4至149°F)

密封IP65

机构评级行政长官

机械

铝，不锈钢/约1300克(45.8盎司)

壁挂式安装

电

电源电压标称+24 VDC

允许电压范围+18 ~ +31.2 VDC

最大功耗。6 W

缓冲输出:在引脚处可用连接(笼式终端)

(2x)电压范围±5.0 VDC

精度±2.5%

输出电流:电流范围0/4至20 mA(20至4/0 mA)

(2x)电分离

开路和短路的证明

最大负载500欧姆

☆型号：CSI3120 轴承振动监测 双通道轴承-振动监测器

【英文介绍】

Emerson’s Dual-Channel Bearing-Vibration Monitor is designed for small and

low channel applications such as small steam, gas, and hydro turbines, and such

as compressors, pumps, and fans to measure absolute bearing vibration signals.

Measurement settings, alarms, and provided outputs are field configurable

via software.

Measurement Performance

Sensor Input Type Seismic Sensors of Type PR9268

Measurement Range Freely selectable by means of

configuration software according to the

measuring range of the applied sensors

Frequency Range: High-Pass Filter 5 / 10 / 15 Hz

Low-Pass Filter 50 to 1500 Hz

Connection Type “Harting” socket

Environmental

Shock Limit 20 g pk

Temperature Range -20 to 65°C (-4 to149°F)

Sealing IP65

Agency Ratings CE

Mechanical

Case Material / Weight Aluminum, stainless / ~1300 g (45.8 oz.)

Mounting Wall mount

Electrical

Supply Voltage Nominal +24 VDC

Permissible Voltage Range +18 to +31.2 VDC

Power Consumption max.  6 W

Buffered Out: Connection Available at Pins (Cage Terminal)

(2x) Voltage Range ±5.0 VDC

Accuracy ± 2.5%

Current Out: Current Range 0/4 to 20 mA (20 to 4/0 mA)

(2x) Galvanically separated

Open circuit and short-circuit proof

Maximum Burden 500 Ohm
