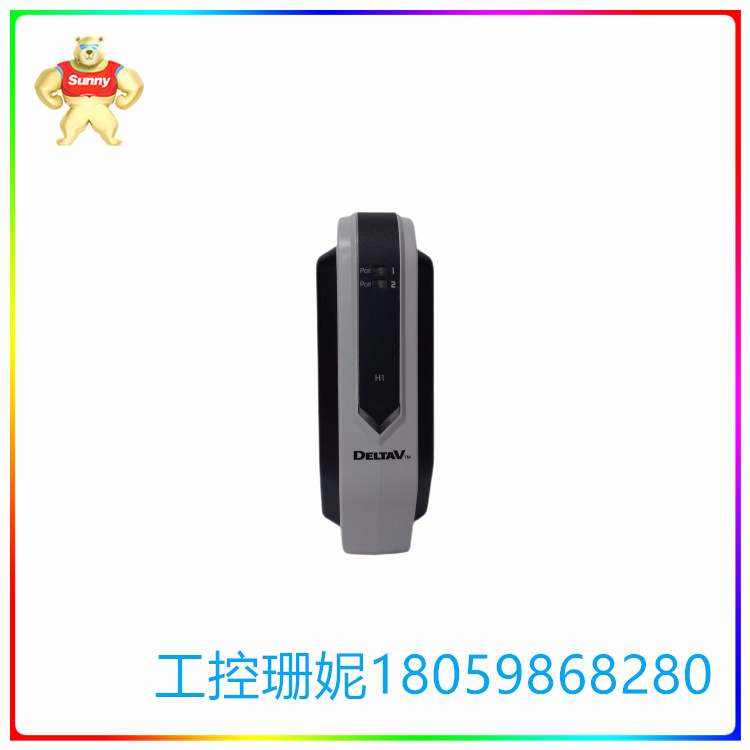

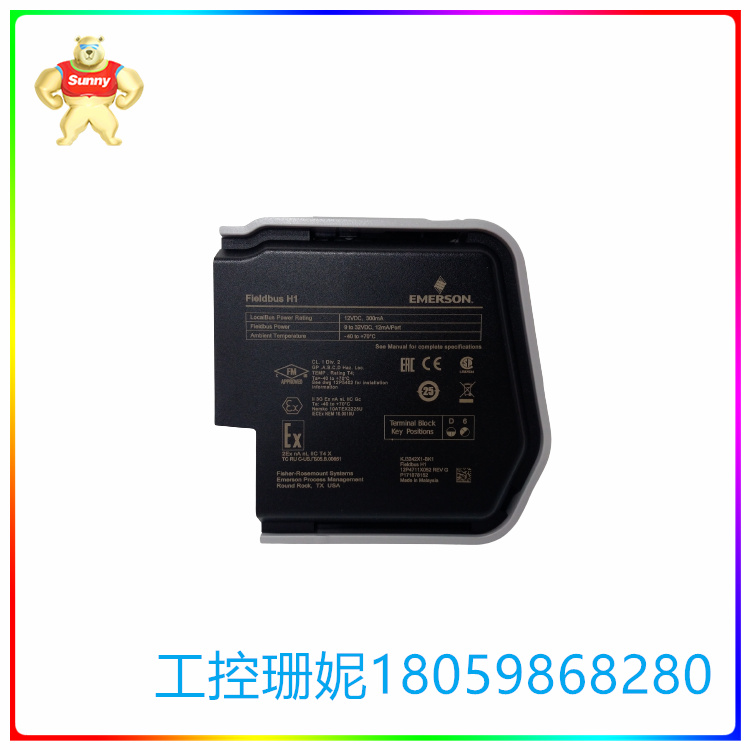

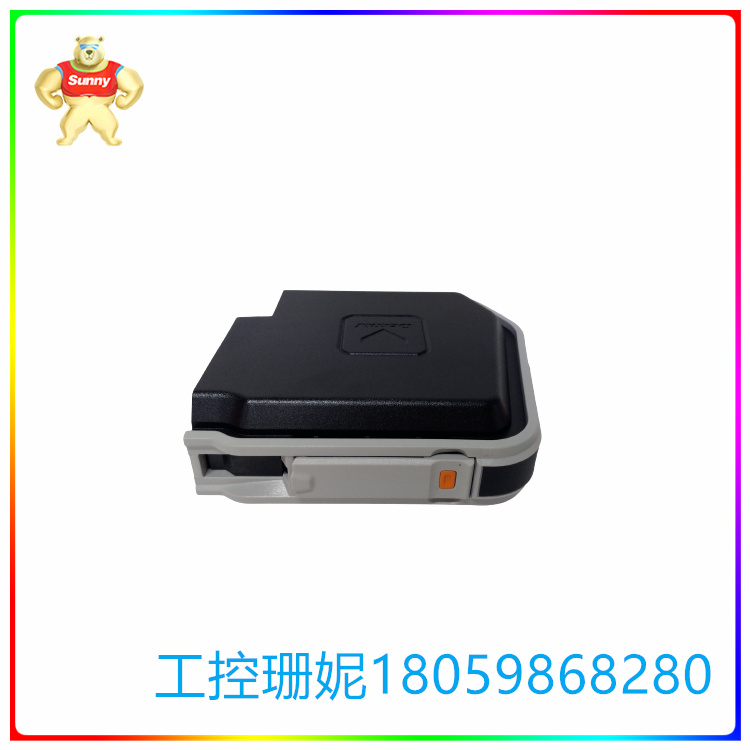

KJ3242X1-BK1 现场总线H1卡

【产品详情】

电源规格

• LocalBus额定功率12vdc, 300ma

• 现场电路额定32 VDC在12 mA/端口

• 环境规范

• 环境温度-40 ~ 70℃

• 震动10g½正弦波，持续11毫秒

• 振动1mm峰至峰5 ~ 16Hz;

• 从16到150Hz 0.5g

• 机载

• 污染物

• ISA-S71.04 -1985空降

• G3类污染物

• 相对湿度5 ~ 95%无冷凝ip20

• 评级

• 接线盒键

• 位置

• D6

注:序号以产品标签为准

以及生产地点和日期。

警告:本产品有特定的使用说明

在危险环境下安装、拆卸和操作区域。参考文档12P5404“DeltaV <s:1> 系列数字自动化系统2区安装””。其他安装说明如下可在“DeltaV <s:1> s系列和CHARMs”中使用“硬件安装”手册。取出和插入本单元不能随系统拆卸或插入精力充沛。旋转键控系统确保兼容性在I/O卡和终端块之间完成安装。端子排必须为它所使用的I/O卡设置了密钥吗使用。

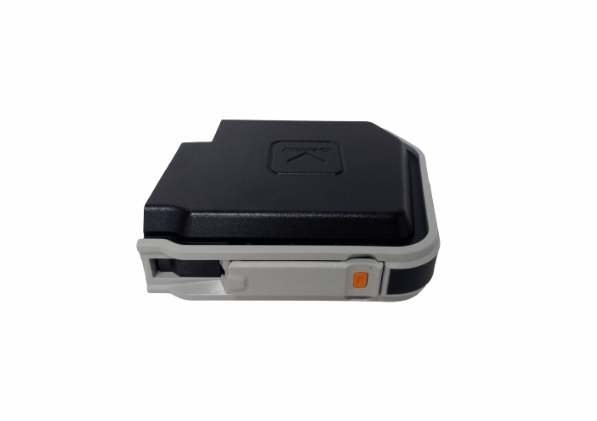

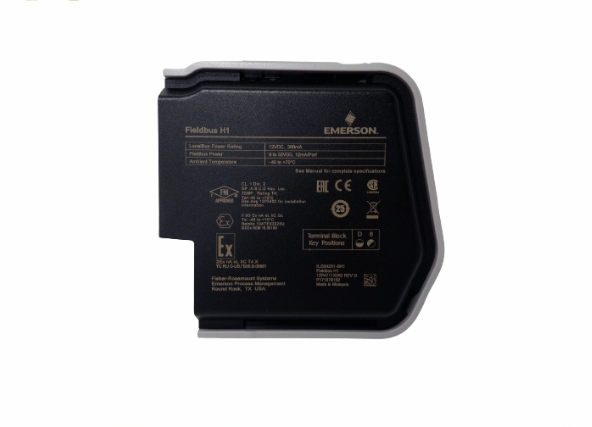

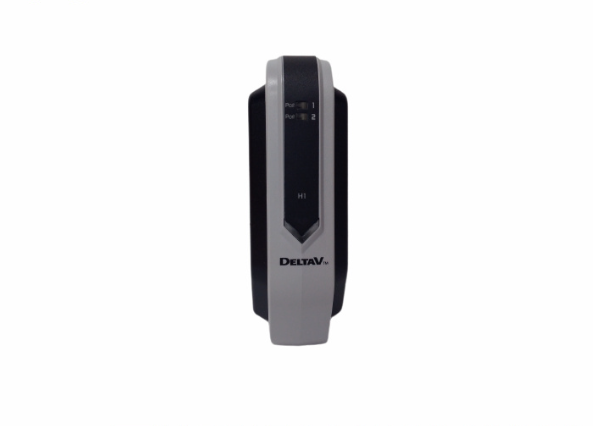

KJ3242X1-BK1 现场总线H1卡

【英文介绍】

Power supply specification

LocalBus The rated power is 12vdc and 300ma

The field circuit is rated at 32 VDC at 12 mA/ port

Environmental specification

Ambient temperature -40 ~ 70℃

Vibrate 10g½ sine wave for 11 milliseconds

Vibration 1mm peak to peak 5 ~ 16Hz;

From 16 to 150Hz 0.5g

airborne

pollutant

ISA-S71.04-1985 airborne

G3 pollutants

Relative humidity 5 to 95% Non-condensing ip20

rate

Junction box key

position

D6

Note: Serial number depends on the product label

And the location and date of production.

Warning: This product has specific instructions for use

Install, disassemble and operate areas in hazardous environments. Refer to 12P5404 "DeltaV <s:1>  Series Digital automation system Installation in Zone 2". Other installation instructions are as follows. You can use the Hardware Installation manual in DeltaV <s:1> s Series and CHARMs. Remove and insert This unit cannot be removed with the system or inserted energetically. The rotary keying system ensures compatibility between the I/O card and the terminal block to complete the installation. The terminal block must have a key set for the I/O card it uses.
