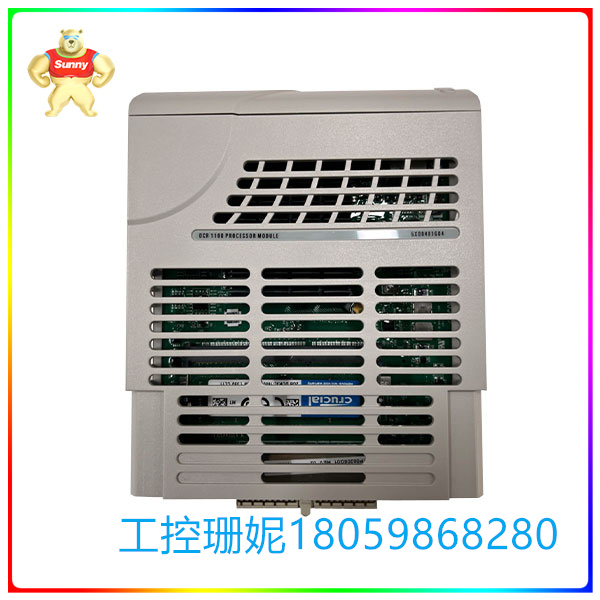

5X00481G04 Ovation™OCR1100控制器Atom CPU模块

【产品详情】

爱默生Factory-Certified

艾默生提供广泛的经工厂认证的Ovation™部件库存

帮助您减少停机时间，并保持控制系统的完整性。

艾默生遵循一套严格的设计质量程序，

制造，安装和测试更换零件，以便

提供一个高度的信心，我们的系统将运行为

的意图。

5X00481G04触点输入配置(1C31233G04)提供16路触点输入电流

检测具有共同返回的信道。场侧电路和端子

三个通道的连接关系如图21-4所示。

+48V板载电源提供电流，以限制接触润湿电压

联系人已打开。如果触点闭合，电流为5X00481G04，由+10V电源供电

打开相应的光隔离器;这样，闭合触点的状态就传递出去了

到I/O总线。光隔离器和隔离器由10V和48V提供

电源在场侧和逻辑之间提供高介电隔离

或者I/O总线端。

5X00481G04 Ovation™OCR1100控制器Atom CPU模块

【英文介绍】

Emerson Factory-Certified

Emerson offers a wide inventory of factory-certified Ovation™ parts to

help you minimize downtime, and maintain control system integrity.

Emerson follows a rigorous set of quality procedures for the design,

manufacture, installation and testing of replacement parts in order to

provide a high level of confidence that our systems will operate as

intended.

5X00481G04 Contact Input Configuration (1C31233G04) Provides 16 contact input current

Detect channels with a common return.  Fifield side circuits and terminals

Figure 21-4 shows the connection of the three channels.

+48V onboard power supply provides current to limit contact wetting voltage if

The contact has been opened.  If the contact is closed, the current is 5X00481G04, powered by a +10V supply

Turn on the relevant optical isolator;  Thus, the state of the closed contact is transmitted

To the I/O bus.  Optical isolators and isolation provided by 10V and 48V

The power supply provides high dielectric isolation between the field side and the logic

Or I/O bus end.
