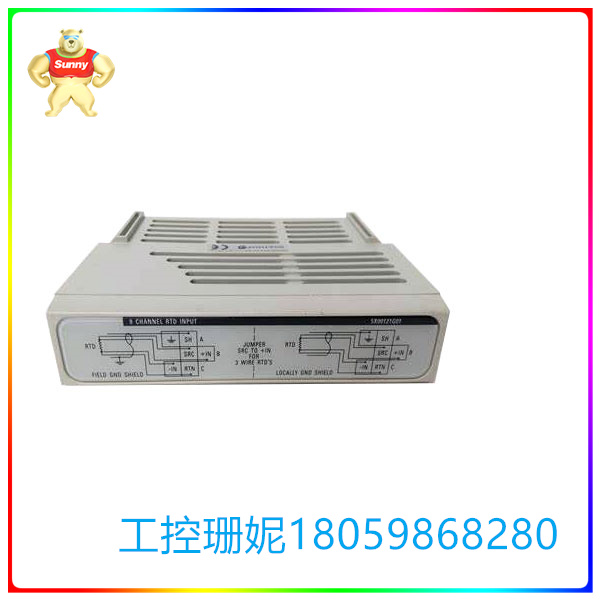

5X00121G01 热电阻输入卡 8通道RTD输入 EMERSON

【产品详情】

目录说明：8通道RTD输入

备用部件号：无

常见印刷错误：5X00121GO1

热电阻信号输入卡5X00121G01是一-块智能型的、点点隔离的、带有模拟量信号调理的四路模拟信号

采集卡，每一路可单独组态并接收各种型号电阻信号，将其调理后再转换成数字信号并通过数据转

发卡送给主控制卡。.

5X00121G01卡实现了点点隔离，并且都与控制站的电源隔离。卡件可单独工作，也能以冗余方式工

作。各种信号都可以并联方式接入互为冗余的二块5X00121G01卡中,真正做到了从信号调理这- - -级开始

的冗余。同时，卡件具有自诊断和与主控卡通信的功能，在采样、处理信号的同时，也在进行自检。

如果卡件为冗余状态，一旦工作卡自检到故障，立即将工作权让给备用卡，并且点亮故障灯报警，

等待处理。工作卡和备用卡对同一点信号同时进行采样和处理，切换时无扰动。如果卡件为单卡工

作，一旦自检到错误，卡件会点亮故障灯并报警。

用户可通过上位机对5X00121G01卡进行组态，决定其对具体某种信号进行处理,并可随时在线更改,

使用方便灵活。

5X00121G01 热电阻输入卡 8通道RTD输入 EMERSON

【英文介绍】

Directory Description: 8 channel RTD input

Spare component number: none

Common typographical error: 5X00121GO1

The thermal resistance signal input card 5X00121G01 is a one-block intelligent, point-isolated, four-way analog signal with analog signal conditioning

Acquisition card, each way can be configured separately and receive various types of resistance signals, the conditioning and then converted into digital signals and through data transfer

Send a card to the master business card printing. .

The 5X00121G01 card achieves spot isolation and is isolated from the power supply of the control station. Cards can work individually or in a redundant manner

Do. All kinds of signals can be connected in parallel to two redundant 5X00121G01 cards, which really starts from the signal conditioning stage

The redundancy of... At the same time, the card has the function of self-diagnosis and communication with the main control card, while sampling and processing signals, it is also self-testing.

If the card is redundant, once the work card self-checks the fault, the right to work is immediately handed over to the standby card, and the fault light is lit to alarm.

Wait for processing. The working card and the standby card sample and process the same point signal at the same time, and there is no disturbance when switching. If the card is a single card

Once the error is detected, the card will light the fault light and alarm.

The user can configure the 5X00121G01 card through the host computer to determine the processing of a specific signal, and can change online at any time.

Easy to use and flexible.

5X00121G01 热电阻输入卡 8通道RTD输入 EMERSON
